Train Locomotive Measuring Pressure HTS-80Z-1 Dual-needle Pressure Gauge
Train Locomotive Measuring Pressure HTS-80Z-1 Dual-needle Pressure Gauge
Train Locomotive Measuring Pressure HTS-80Z-1 Dual-needle Pressure Gauge
Train Locomotive Measuring Pressure HTS-80Z-1 Dual-needle Pressure Gauge
Train Locomotive Measuring Pressure HTS-80Z-1 Dual-needle Pressure Gauge
Train Locomotive Measuring Pressure HTS-80Z-1 Dual-needle Pressure Gauge
Specifications
Brand Name :
HTR
Model Number :
HTS-80Z-1
Place of Origin :
China
MOQ :
10pcs
Price :
negotiable
Payment Terms :
L/C,T/T,Western Union,Paypal
Supply Ability :
1,000 pcs/month
Delivery Time :
15-50 days, depends on QTY
Packaging Details :
Carton box, Wooden case, as per requires
Measuring Range :
0 ~ 1600 kPa
Accuracy Class :
Class 1.0
Operating Temperature :
-40°C to +70°C, with relative humidity not exceeding 95%
Temperature Influence :
When ambient temperature deviates from 20°C ± 5°C, additional error ≤ 0.4%/10°C
Illumination Voltage :
DC 24V ±20%
Dielectric Strength :
1500V / 50Hz, duration 1 minute
Description

Products Description

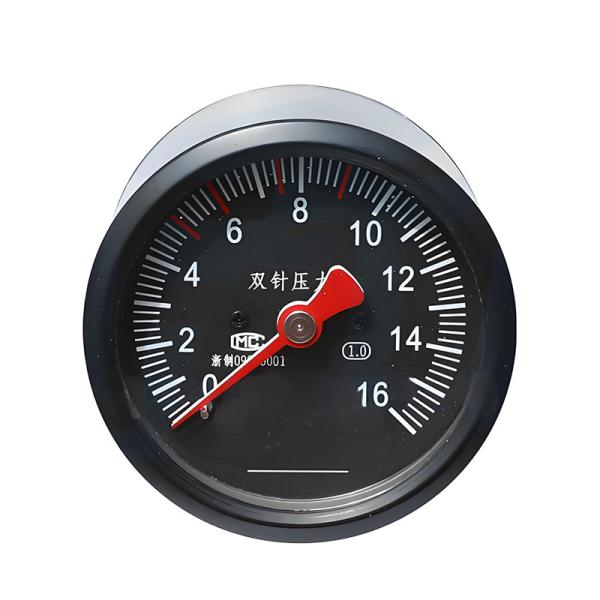

The dual-needle pressure gauge is primarily used for measuring pressure in locomotive air compressors, hydraulic systems, or air reservoirs. Its working principle is based on the deformation of a Bourdon tube under the action of medium pressure. This deformation is transmitted and amplified through a mechanical linkage, which drives the pointer to deflect along the dial scale, indicating the measured pressure value.

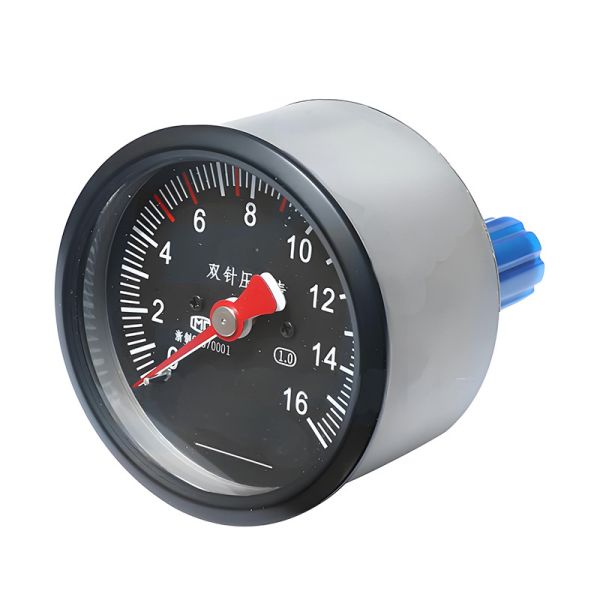

This pressure gauge features an axial structure and is capable of measuring two identical or different pressures simultaneously. It is equipped with a soft LED ring light positioned at the upper part of the dial, providing gentle illumination to facilitate clear reading during night-time operation.


Specification

Item

Specification

Measuring Range

0 ~ 1600 kPa

Accuracy Class

Class 1.0

Operating Temperature

-40°C to +70°C, with relative humidity not exceeding 95%

Temperature Influence

When ambient temperature deviates from 20°C ±5°C, additional error ≤ 0.4%/10°C

Illumination Voltage

DC 24V ±20%

Dielectric Strength

1500V / 50Hz, duration 1 minute

Standard Compliance

Complies with GB/T 1226-2010 (General Pressure Gauge Standard)
