HTCS100 Single-needle Pressure Gauge In Locomotive Air Compressors
HTCS100 Single-needle Pressure Gauge In Locomotive Air Compressors
HTCS100 Single-needle Pressure Gauge In Locomotive Air Compressors
HTCS100 Single-needle Pressure Gauge In Locomotive Air Compressors
HTCS100 Single-needle Pressure Gauge In Locomotive Air Compressors
HTCS100 Single-needle Pressure Gauge In Locomotive Air Compressors
Specifications
Brand Name :
HTR
Model Number :
HTCS100
Place of Origin :
China
MOQ :
10pcs
Price :
negotiable
Payment Terms :
L/C,T/T,Western Union,Paypal
Supply Ability :
1,000 pcs/month
Delivery Time :
15-50 days, depends on QTY
Packaging Details :
Carton box, Wooden case, as per requires
Measuring Range :
0 ~ 1200 kPa
Accuracy Class :
Class 1.0
Operating Temperature :
-40°C to +70°C, with relative humidity not exceeding 95%
Temperature Influence :
When ambient temperature deviates from 20°C ± 5°C, additional error ≤ 0.4%/10°C
Illumination Voltage :
DC 110V ±20%
Dielectric Strength :
1500V / 50Hz, duration 1 minute
Description

Products Description

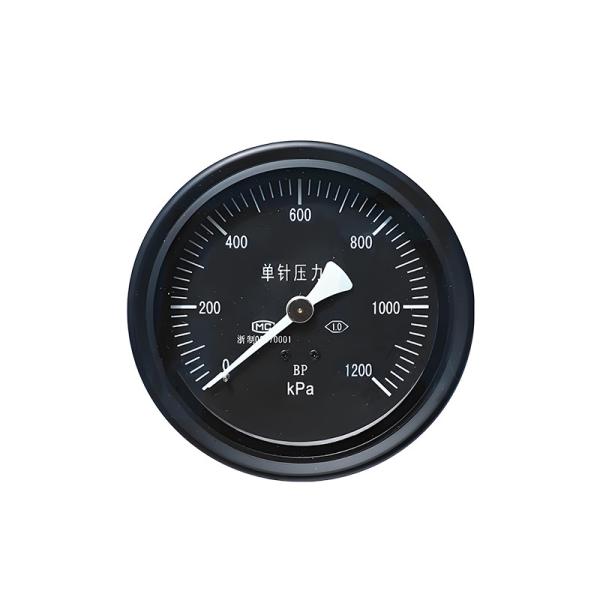

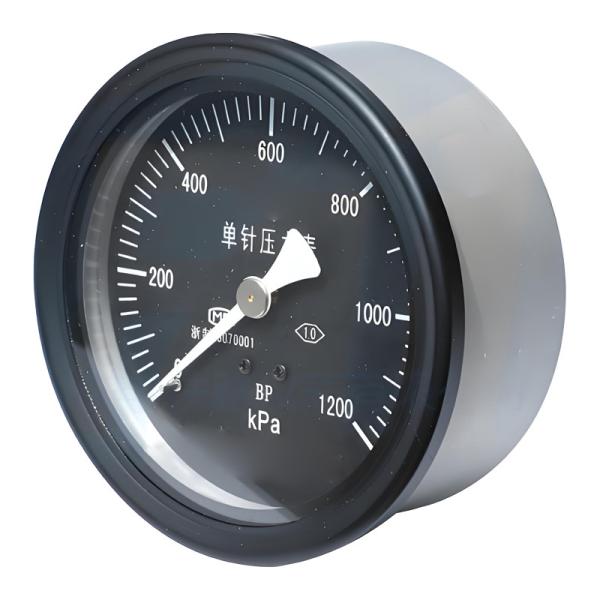

The single-needle pressure gauge is primarily used for measuring pressure in locomotive air compressors, hydraulic systems, or air reservoirs. Its operating principle is based on the deformation of a Bourdon tube under the action of medium pressure. This deformation is transmitted and amplified through a mechanical linkage, driving the pointer to deflect across the calibrated dial to indicate the measured pressure value.

This pressure gauge features an axial structure and is capable of measuring two identical or different pressures simultaneously. It is equipped with a ring-shaped LED light source positioned at the top of the dial, providing soft illumination that enhances visibility and facilitates observation during nighttime operation.


Specification

Item

Specification

Measuring Range

0 ~ 1200 kPa

Accuracy Class

Class 1.0

Operating Temperature

-40°C to +70°C, with relative humidity not exceeding 95%

Temperature Influence

When ambient temperature deviates from 20°C ±5°C, additional error ≤ 0.4%/10°C

Illumination Voltage

DC 110V ±20%

Dielectric Strength

1500V / 50Hz, duration 1 minute

Standard Compliance

Complies with GB/T 1226-2010 (General Pressure Gauge Standard)
