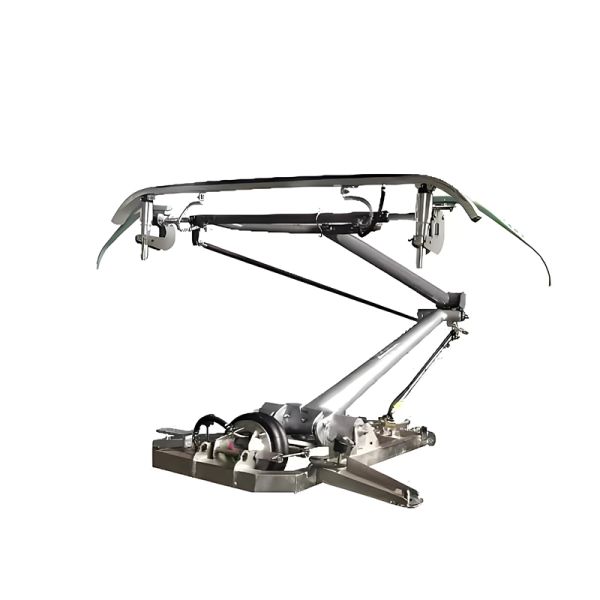

HTR420 Train Locomotive Pantograph
HTR420 Train Locomotive Pantograph
Specifications
Brand Name :
HTR
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Payment Terms :
L/C,T/T,Western Union,Paypal
Supply Ability :
1,000 pcs/month
Delivery Time :
15-50 days, depends on QTY
Packaging Details :
Carton box, Wooden case, as per requires
Design Speed :
400 km/h
Rated Voltage/Current :
AC 25kV / 1000A
Nominal Static Contact Force :
80 N (adjustable)
Dynamic Contact Force Adjustment :
Active control skid plate
Drive Method :
Pneumatic
Lowering Retention Force :
≥150 N
Lowered Height :
≤745 mm
Minimum Operating Height :
>1000 mm
Maximum Operating Height :
<2950 mm
Maximum Lifting Height :
≥3100 mm
Weight :
≤135 kg
Description

Product Description

This pantograph features a single carbon strip and upper-lower arm support, with active skid control. Designed for 400 km/h, it holds independent intellectual property rights.

It was used on a high-speed test train and helped achieve records such as 403 km/h in tunnels, 435 km/h on open lines, and a maximum passing speed of 870 km/h.

Parameter

Value

Design Speed

400 km/h

Rated Voltage/Current

AC 25kV / 1000A

Nominal Static Contact Force

80 N (adjustable)

Dynamic Contact Force Adjustment

Active control skid plate

Drive Method

Pneumatic

Lowering Retention Force

≥150 N

Lowered Height

≤745 mm

Minimum Operating Height

>1000 mm

Maximum Operating Height

<2950 mm

Maximum Lifting Height

≥3100 mm

Weight

≤135 kg
