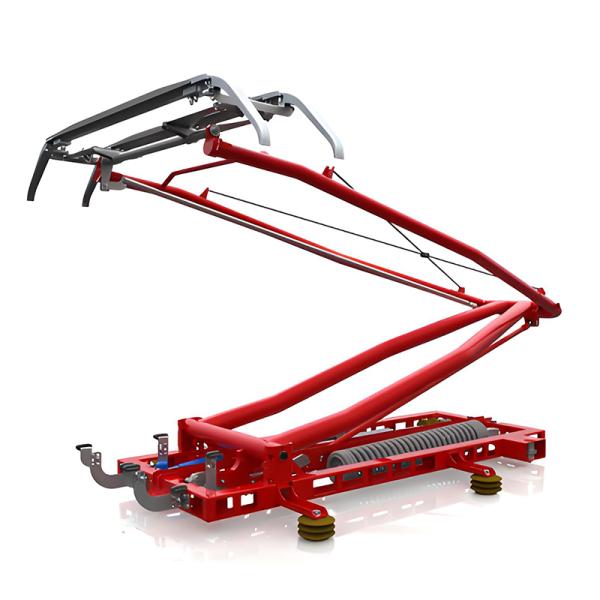

HTR300 Train Locomotive Pantograph
HTR300 Train Locomotive Pantograph
Specifications
Brand Name :
HTR
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Payment Terms :
L/C,T/T,Western Union,Paypal
Supply Ability :
1,000 pcs/month
Delivery Time :
15-50 days, depends on QTY
Packaging Details :
Carton box, Wooden case, as per requires
Design Speed :
300 km/h
Power Transmission (Standard) :
25 kV / 1000 A
Static Contact Force :
70 N, adjustable
Dynamic Contact Force Adjustment :
Aerodynamic fins (if required)
Raising Mechanism :
Pneumatic
Input Compressed Air Pressure :
4–10 bar
Weight :
105 kg (excluding insulators)
Description

Product Description

This pantograph model is a high-speed current collector independently developed by HengtaiRail based on the absorption and integration of DSA series pantograph technologies.

Its structural strength has been optimized through finite element analysis and 3D design platforms such as I-DEAS, achieving enhanced aerodynamic performance.

Additionally, pantograph-catenary coupling performance has been refined using dynamic simulation software. The pantograph fully meets the operational requirements of passenger EMUs running at speeds up to 300 km/h.

Parameter

Value

Design Speed

300 km/h

Power Transmission (Standard)

25 kV / 1000 A

Static Contact Force

70 N, adjustable

Dynamic Contact Force Adjustment

Aerodynamic fins (if required)

Raising Mechanism

Pneumatic

Input Compressed Air Pressure

4–10 bar

Nominal Operating Pressure at 70 N Contact Force

3.2 bar

Free Vertical Movement of Pantograph Head

60 mm (vertical displacement)

Weight

105 kg (excluding insulators)
