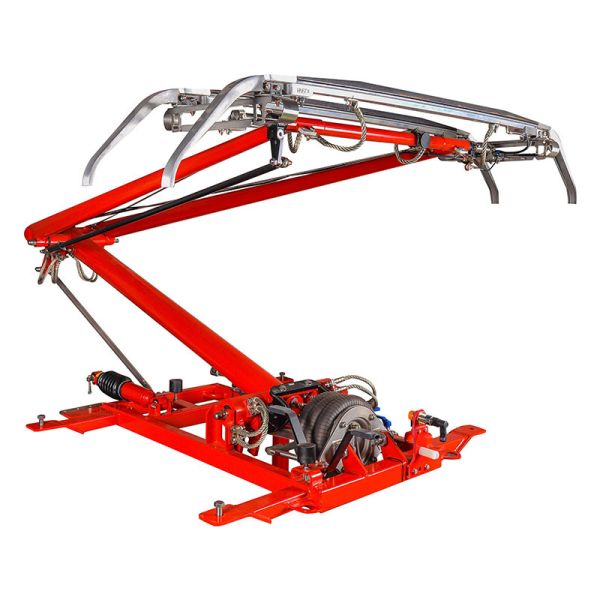

HTR160C Train Locomotive Pantograph
HTR160C Train Locomotive Pantograph
Specifications
Brand Name :
HTR
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Payment Terms :
L/C,T/T,Western Union,Paypal
Supply Ability :
1,000 pcs/month
Delivery Time :
15-50 days, depends on QTY
Packaging Details :
Carton box, Wooden case, as per requires
Ambient Temperature :
-25°C ~ +70°C
Storage Temperature :
-40°C ~ +70°C
Design Speed :
120 km/h
Rated Pneumatic Pressure :
400 KPa
Protection Grade :
IP00
Rated Voltage :
1500 VDC
Rated Operating Current :
1700 A
Maximum Current :
2400 A
Maximum Parking Current :
460 A
Static Contact Force :
120 ± 10 N
Raising Time :
≤ 8 s
Electrical Insulation Distance :
280 ± 5 mm
Description

Product Description

The HTR160C type pantograph is a single-arm, pneumatically operated current collector designed for metro or light rail vehicles to collect current from the overhead contact line.

This model features a low minimum operating height, wide working range, lightweight structure, and easy maintenance.

It suitable for metro or light rail vehicles operating under a 1500VDC overhead line voltage.

Parameter

Value

Ambient Temperature

-25°C ~ +70°C

Storage Temperature

-40°C ~ +70°C

Design Speed

120 km/h

Rated Pneumatic Pressure

400 KPa

Protection Grade

IP00

Rated Voltage

1500 VDC

Rated Operating Current

1700 A

Maximum Current

2400 A

Maximum Parking Current

460 A

Static Contact Force

120 ± 10 N

Raising Time

≤ 8 s

Electrical Insulation Distance

280 ± 5 mm

Lowered Height

340 mm (including insulator)

Minimum Operating Height

430 mm (including insulator)

Maximum Operating Height

2450 mm (including insulator)
