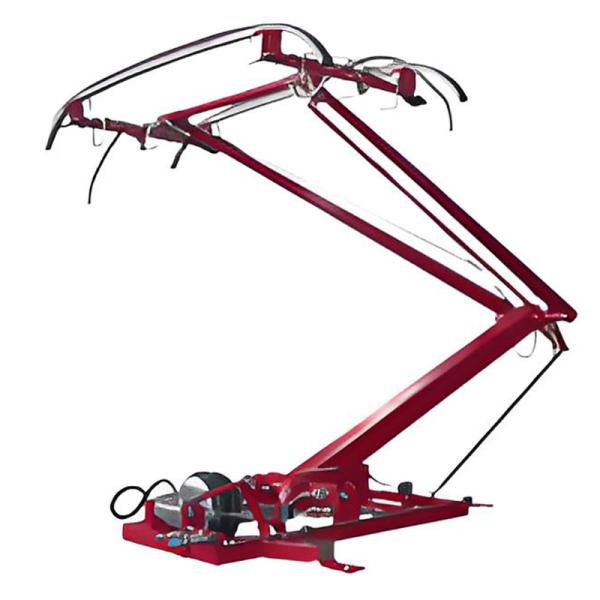

HTR250 Train Locomotive Pantograph
HTR250 Train Locomotive Pantograph
HTR250 Train Locomotive Pantograph
HTR250 Train Locomotive Pantograph
Specifications
Brand Name :
HTR
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Payment Terms :
L/C,T/T,Western Union,Paypal
Supply Ability :
1,000 pcs/month
Delivery Time :
15-50 days, depends on QTY
Packaging Details :
Carton box, Wooden case, as per requires
Design Speed :
250 km/h
Power Transmission (Standard) :
25 kV / 1000 A
Static Contact Force :
70 N, adjustable
Dynamic Contact Force Adjustment :
Aerodynamic fins (if required)
Raising Mechanism :
Pneumatic
Input Compressed Air Pressure :
4–10 bar
Weight :
115 kg
Description

Product Description

This pantograph features a lightweight design, with certain components made from titanium alloy. Its aerodynamic performance at high speeds is enhanced through the addition of deflectors and aerodynamic fins.

It is designed for use on the domestically developed 200 km/h EMUs based on the "Hexie" series platform. Since the commercial launch of China's high-speed rail services, this pantograph has achieved outstanding operational success.

Parameter

Value

Design Speed

250 km/h

Power Transmission (Standard)

25 kV / 1000 A

Static Contact Force

70 N, adjustable

Dynamic Contact Force Adjustment

Aerodynamic fins (if required)

Raising Mechanism

Pneumatic

Input Compressed Air Pressure

4–10 bar

Nominal Operating Pressure at 70 N Contact Force

Approx. 3.3 bar

Free Vertical Movement of Pantograph Head

60 mm (vertical displacement)

Weight

115 kg
