Specifications
Place of Origin :
Chongqing, China
Brand Name :
HTR
MOQ :
10
Price :
Ngotiable
Certification :
ISO9001
Material :
Metal
Operating Air Gap :
1 ± 0.5 mm
Altitude :
≤1500m
Relative Humidity :
≤95% (monthly average minimum temperature of 25℃)
Operating Temperature :
-40℃ to +120℃
Vibration & Shock :
Complies with IEC 61373:2010 for Category 3 axle-mounted applications
Protection Rating :
IP68 (5 bar, 2 hours)
Operating Voltage :
8V to 30V DC
Rated Voltage :
DC 15V
Speed Measurement Range :
0 to 20 kHz
Output Waveform :
Square wave, with slew rate (2m cable) ≥ 3.5 V/μs
Duty Cycle :
(50 ± 10)%
Phase Shift :
90° ± 18°
High-Level Output :
≥ Ub - 2.0 V
Low-Level Output :
≤ 1.2 V
Description

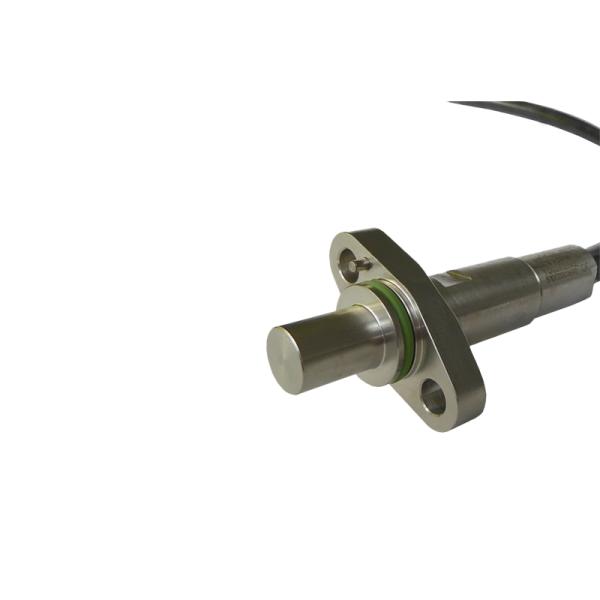

ISO9001 Certified Customizable Hall Speed Sensor
Specification
Product Performance
Reference Value
Altitude
≤1500m
Relative Humidity
≤95% (monthly average minimum temperature of 25℃)
Operating Temperature
-40℃ to +120℃
Vibration & Shock
Complies with IEC 61373:2010 for Category 3 axle-mounted applications
Protection Rating
IP68 (5 bar, 2 hours)
Power Supply (Vcc):
Operating Voltage Range: Us = 8V to 30V DC
Rated Voltage: DC 15V
Speed Measurement Range
0 to 20 kHz
Operating Air Gap
1 ± 0.5 mm
Number of Output Channels
customized
Output Waveform
Square wave, with slew rate (2m cable) ≥ 3.5 V/μs
Duty Cycle
(50 ± 10)%
Phase Shift (between channels)
90° ± 18°
High-Level Output
≥ Ub – 2.0 V
Low-Level Output
≤ 1.2 V
No-Load Current Consumption
≤ 40 mA
Operating Air Gap
1 ± 0.5 mm

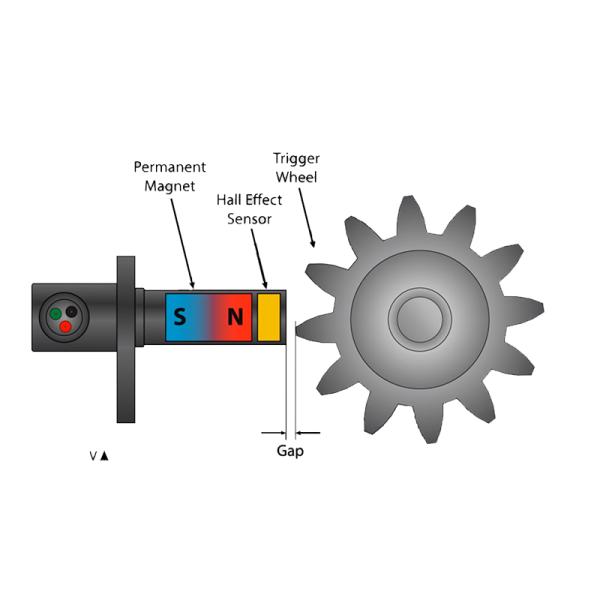

The Hall-type speed sensor uses magnetic induction to measure speed contactlessly. It is wear-resistant, highly accurate, and highly anti-interference. It can adapt to the harsh environment of rail transit and is used in key parts such as axles and motors to ensure safe and reliable operation.

Product Features:

1, Non-contact measurement – Operates via magnetic field sensing, eliminating mechanical wear for extended service life. 2, High-precision response – Detects minute speed variations with real-time signal output for critical control systems. 3, Robust environmental resilience – Withstands extreme temperatures, vibration, and moisture in demanding rail operating conditions. 4, EMC-compliant reliability – Provides stable output with superior electromagnetic interference (EMI) immunity for fail-safe operation.
Products Description
ISO9001 Certified Customizable Hall Speed Sensor
ISO9001 Certified Customizable Hall Speed Sensor
ISO9001 Certified Customizable Hall Speed Sensor
ISO9001 Certified Customizable Hall Speed Sensor
ISO9001 Certified Customizable Hall Speed Sensor
ISO9001 Certified Customizable Hall Speed Sensor
ISO9001 Certified Customizable Hall Speed Sensor
ISO9001 Certified Customizable Hall Speed Sensor

Company Overview:

Chongqing XinRail Technology Co., Ltd. – Your Trusted Partner for Premium Track Accessories. We specialize in providing top-quality products and innovative solutions for the railway and rail transit industries. Since our inception, we've been dedicated to enhancing the efficiency and safety of track systems worldwide with reliable products and exceptional service.

Our Advantages

1. Superior Quality Control – Ensuring products meet the highest standards. 2. Highly Competitive Prices – Get the best value for your investment. 3. Cutting-Edge Technology – State-of-the-art products for modern living. 4. Expert Team – Professional and passionate about lifestyle electronics. 5. Seamless Communication – Smooth, responsive, and easy to work with. 6. Effective OEM & ODM Services – Tailored solutions to meet your unique needs.

Our Mission

Our mission is to advance the safety and efficiency of the rail transit industry by providing excellent track accessories and services. We are dedicated to being a reliable partner for our clients, together facing future challenges and opportunities.

Please feel free to contact us for more information. We look forward to working with you and contributing to the development of the rail transit industry!
ISO9001 Certified Customizable Hall Speed Sensor
ISO9001 Certified Customizable Hall Speed Sensor
ISO9001 Certified Customizable Hall Speed Sensor
ISO9001 Certified Customizable Hall Speed Sensor
What are the main factors to consider when selecting track accessories? When selecting track accessories, key factors include: Compatibility: Ensure the accessories match the specifications of your existing track system. Quality Standards: Look for products that meet international quality and safety standards. Durability: Consider the environmental conditions and load requirements to choose durable materials. Cost-effectiveness: Balance cost with the long-term performance and maintenance requirements of the accessories.
How do you ensure the quality of your products? We ensure product quality through: Rigorous Testing: All products undergo thorough testing and quality control procedures. Certified Manufacturers: We source our products from internationally recognized manufacturers with proven track records. Compliance: Our products comply with industry standards and regulations to guarantee performance and safety.
Can you provide customized solutions for specific projects? Yes, we offer customized solutions tailored to specific project requirements. Our team of experts can work with you to understand your needs and provide tailored products and solutions to meet your project’s specifications.
Do you offer technical support and after-sales service? Yes, we provide comprehensive technical support and after-sales service. Our team is available to assist with installation, maintenance, and troubleshooting to ensure the optimal performance of our products.
Do you ship internationally? Yes, we offer international shipping to a wide range of countries. Shipping costs and arrangements will be provided based on the destination and order details.
