Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
/
Brand Name :
HAIDA
Place of Origin :
Guangdong, China
Application :
Temperature and Current Testing
customized support :
OEM, ODM
power :
50KW, 100A
Protection Class :
/
Voltage :
380 V
warranty :
1 Year
Temperature Sensor :
High precision PT100 Platinum resistance
Capacity :
6885L
Internal dimension(W*D*H) :
1700*1500*2700mm
External dimension(W*D*H) :
Approx. 3000*3100*3100mm
Temperature Range :
-40C + 100C
Temperature fluctuation :
±0.5℃
Temperature uniformity :
≤2℃
Humidity Range :
20%~95%RH
Humidity fluctuation :
±3%RH
Power Source :
Three-phase, 380V, 50Hz 50KW, 100A
MOQ :
1 set
Price :
$27,900-55,985 / set
Description
Solar Photovoltaic Rapid-rate Thermal Cycle Test Chamber PV Circuit Continuity Monitoring System

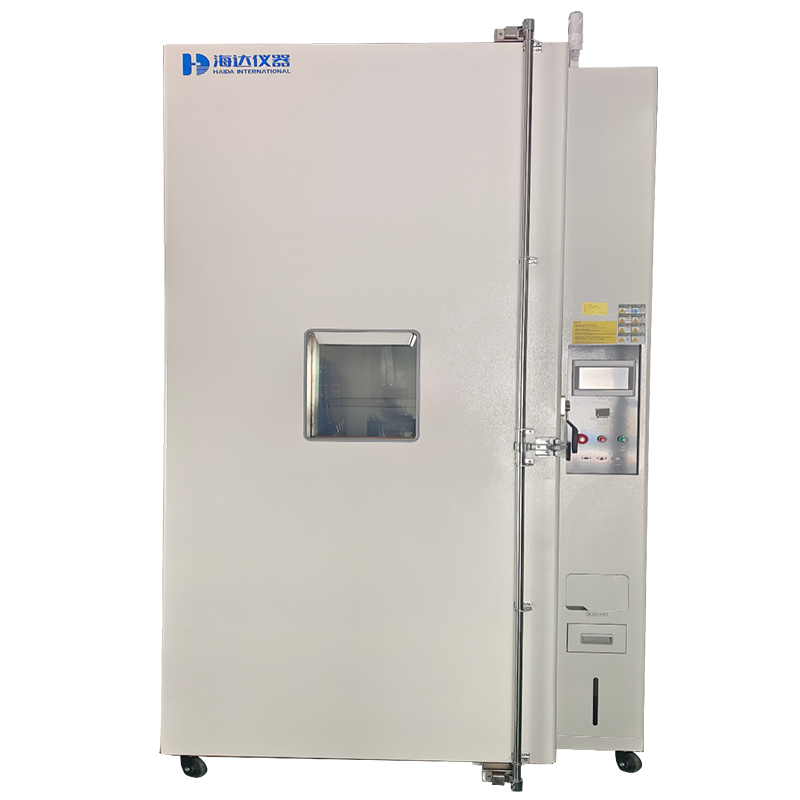

The HD-E708 Rapid-rate Thermal Cycle Test Chamber (including Circuit Continuity Monitoring System) provides wide temperature and humidity control ranges, specifically designed for solar panel testing including thermal cycling, humidity-freeze, and damp heat tests.
Solar Photovoltaic Rapid-rate Thermal Cycle Test Chamber PV Circuit Continuity Monitoring System Thermal Cycle Testing EquipmentSolar Photovoltaic Rapid-rate Thermal Cycle Test Chamber PV Circuit Continuity Monitoring System Thermal Cycle Testing Equipment

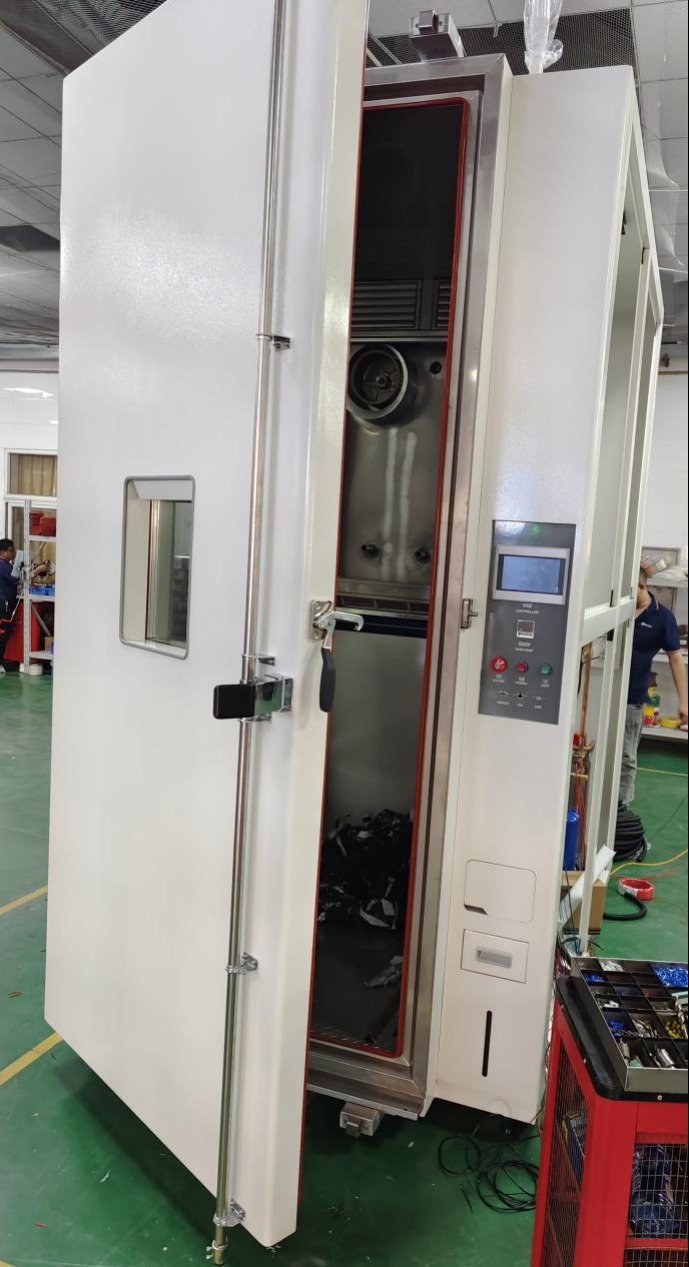

HD-E708 Rapid-rate Thermal Cycle Test Chamber (Including Circuit Continuity Monitoring System)
This equipment offers comprehensive temperature and humidity control capabilities, primarily used for solar panel testing including Thermal Cycling Test, Humidity-freeze Test, and Damp Heat Test. Customers can select suitable models based on performance requirements and test area capacity. Widely utilized across various industries including electronic instruments, new materials, electrical components, automotive, metals, electronics, and aerospace materials that may encounter environmental conditions during transportation, storage, and usage.
Solar Photovoltaic Rapid-rate Thermal Cycle Test Chamber PV Circuit Continuity Monitoring System Thermal Cycle Testing EquipmentSolar Photovoltaic Rapid-rate Thermal Cycle Test Chamber PV Circuit Continuity Monitoring System Thermal Cycle Testing Equipment

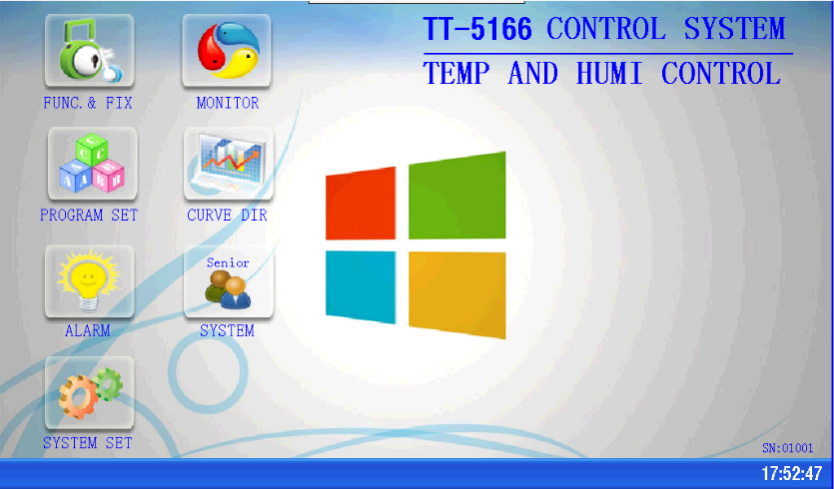

Programmable Controller
Solar Photovoltaic Rapid-rate Thermal Cycle Test Chamber PV Circuit Continuity Monitoring System Thermal Cycle Testing EquipmentSolar Photovoltaic Rapid-rate Thermal Cycle Test Chamber PV Circuit Continuity Monitoring System Thermal Cycle Testing Equipment

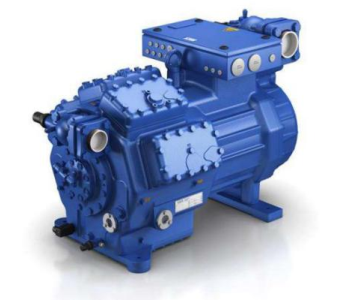

Imported Germany Bock Compressor
Technical Specifications
Cooling System
  • Refrigeration system equipped with Germany Bock Compressor using environmentally friendly refrigerant (R404a)
  • Binary low temperature circuit system design for efficient operation across different temperature regions
  • Temperature control using P.I.D + S.S.R coordinated control system with automatic calculation functionality
  • High-precision temperature controllers with 0.1℃ resolution display
Temperature System
  • Nickel-chromium alloy high-speed heating electric wire
  • Completely independent high temperature system
  • Stainless steel tube construction with nickel-chromium alloy heating elements and high-temperature magnesium oxide powder
  • Fast response and long operational life
Control System
ComponentSpecification
Temperature SensorHigh precision PT100 Platinum resistance
ControllerTATO
Display FunctionTemperature setting (SV) and practical (PV) value display, numeric and graphic display, program editing and curve display
InterfaceRS-232 or R485 port design, computer connectivity, Ethernet remote control optional
Protection System
  • Electrical leakage protection
  • Over-temperature protection
  • Compressor overvoltage and overload protection
  • Heater short circuit protection
Capacity and Material Specifications
ParameterSpecification
ModelHD-E708-6
Capacity6885L
Internal Dimensions (W×D×H)1700×1500×2700mm
External Dimensions (W×D×H)Approx. 3000×3100×3100mm
Single Sample Dimension2400×1400×35mm
Test Sample Capacity12 pieces
Internal MaterialSUS#304 stainless steel, mirror finished
External MaterialCold-rolled steel plate baking
Temperature Specifications
ParameterSpecification
Temperature Range-40°C to +100°C
Temperature Fluctuation±0.5℃
Temperature Uniformity≤2℃
Temperature RateHeating: 3.3°C/min linear control @-40~85°C
Cooling: 3.3°C/min linear control @-40~85°C

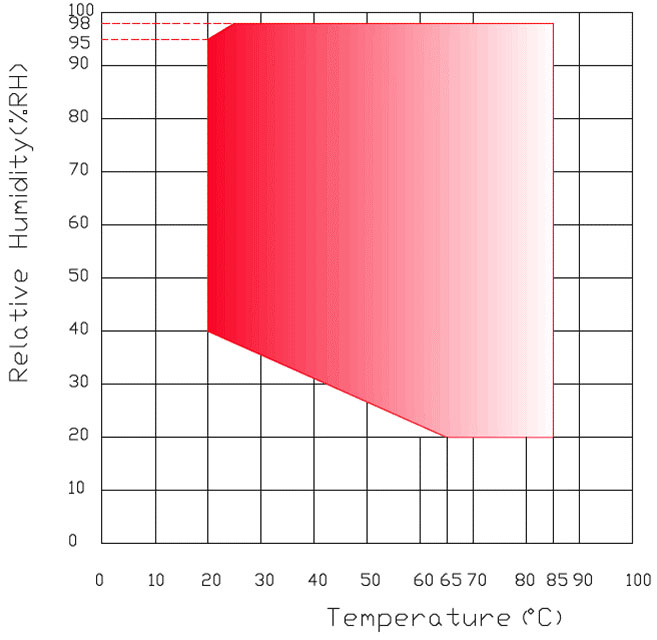

Humidity Specifications
ParameterSpecification
Humidity Range20%~95%RH
Humidity Fluctuation±3%RH
Humidity Uniformity±2%RH
Solar Photovoltaic Rapid-rate Thermal Cycle Test Chamber PV Circuit Continuity Monitoring System Thermal Cycle Testing Equipment
Power Supply
ParameterSpecification
Power SourceThree-phase, 380V, 50Hz, 50KW, 100A
Cooling System and Additional Features
ComponentSpecification
CompressorGermany Bock compressor
RefrigerantR404A
Cooling MethodSingle stage compression, Water cooled (Water tank provided by customer)
Heating SystemNichrome stainless steel heater

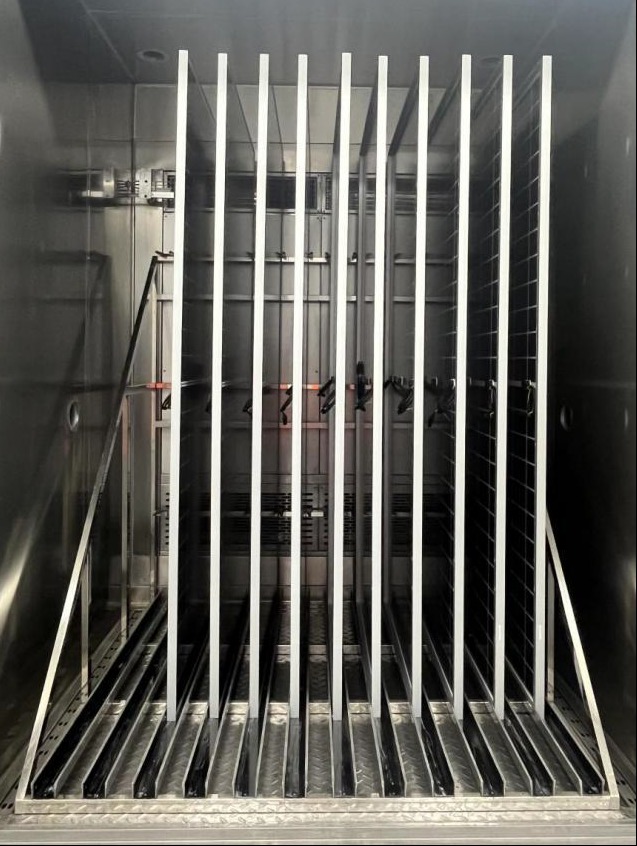

Sample TrayCustomized sample holder ×1
Testing HoleDiameter 100mm at side of chamber for cable routing
Insulation100mm polyurethane rigid foam and 100mm high density glass fiber cotton
Observation WindowDouble-layer vacuum-strengthened glass with heat-resistant defrosting
Test Standards Compliance
  • IEC61215:2021 MQT 11 Thermal cycling test
  • IEC61215:2021 MQT 12 Humidity-freeze Test
  • IEC61215:2021 MQT 13 Damp heat test
  • IEC 62892:2021
  • IEC 63126:2020
IEC61512-2021 MQT 13 Damp Heat Test
Test temperature: (85 ± 2)°C | Relative humidity: (85 ± 5)% | Test duration: (1000 h +48/0)
Solar Photovoltaic Rapid-rate Thermal Cycle Test Chamber PV Circuit Continuity Monitoring System Thermal Cycle Testing Equipment

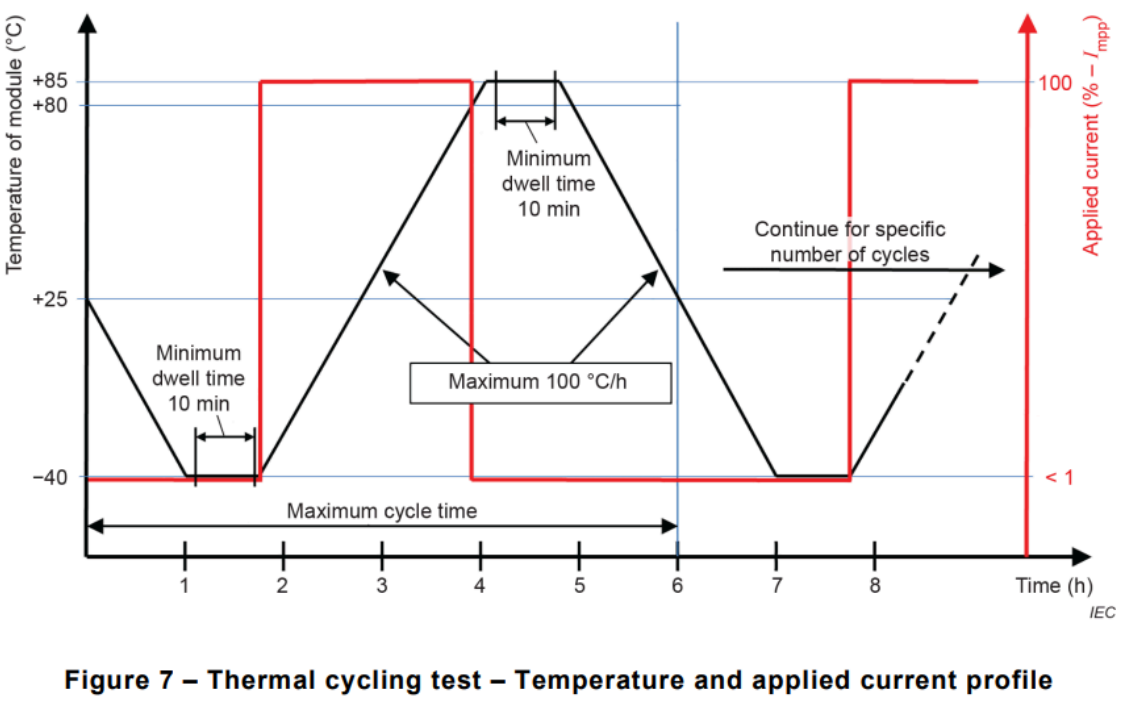

IEC61512-2021 MQT 11 Thermal Cycling Test
Solar Photovoltaic Rapid-rate Thermal Cycle Test Chamber PV Circuit Continuity Monitoring System Thermal Cycle Testing Equipment

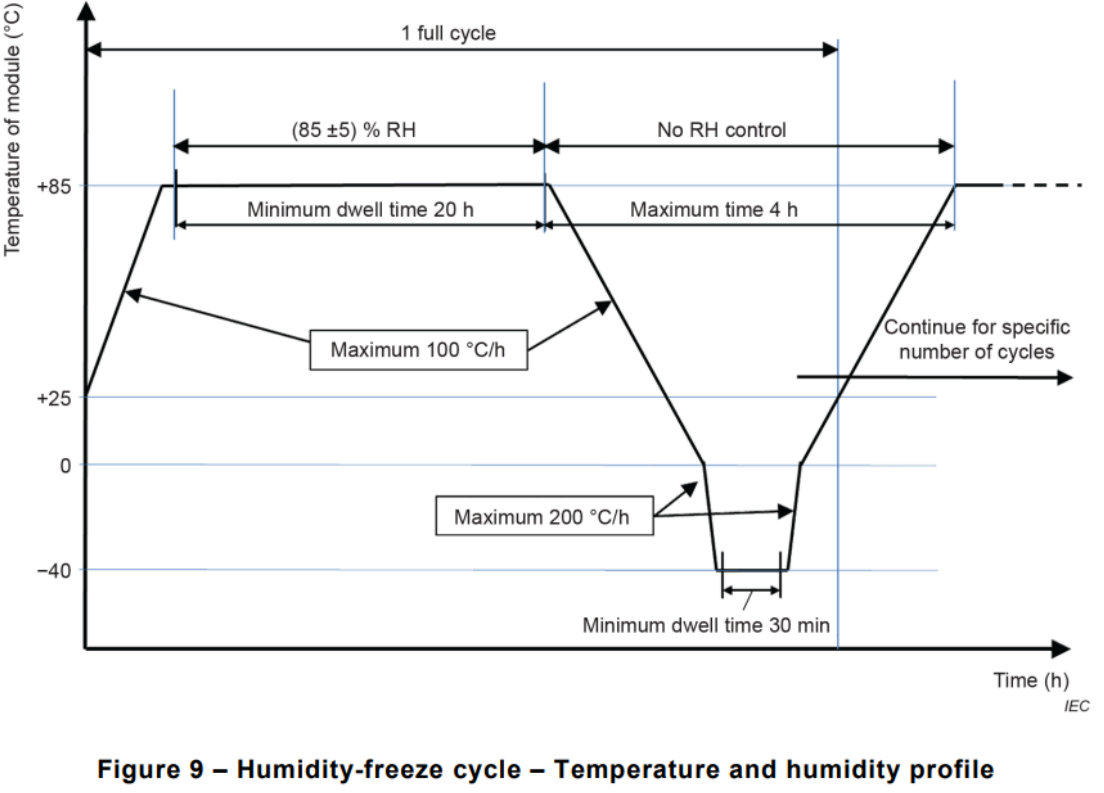

IEC61512-2021 MQT 12 Humidity-freeze Test
Solar Photovoltaic Rapid-rate Thermal Cycle Test Chamber PV Circuit Continuity Monitoring System Thermal Cycle Testing Equipment
