Specifications
Type :
Testing Machine
Airflow speed :
No more than 2m/s
Protection Class :
/
Voltage :
380 V
MOQ :
1
Talcum powder amount :
2kg/ m³
Application :
Sensitivity testing, Dust Testing
customized support :
OEM, ODM
Fan :
Centrifugal fan
Vacuum pump capacity :
60-600 L/H
External material :
Spray Paint Type
Internal dimension(W*D*H) :
800*800*800mm
Accuracy Class :
Standard Accuracy
Door :
Left open door with tempered glass door
External dimension(W*D*H) :
1300*1100*1800mm
Accuracy :
Within ±15%
warranty :
1 Year
Chamber material :
SUS#304 stainless steel
power :
AC380V / 50 HZ, Approx. 5 KW
Specifications of square mesh sieve :
Mesh hole 75um, mesh metal wire diameter 50um
Brand Name :
HAIDA
Place of Origin :
Guangdong, China
Description

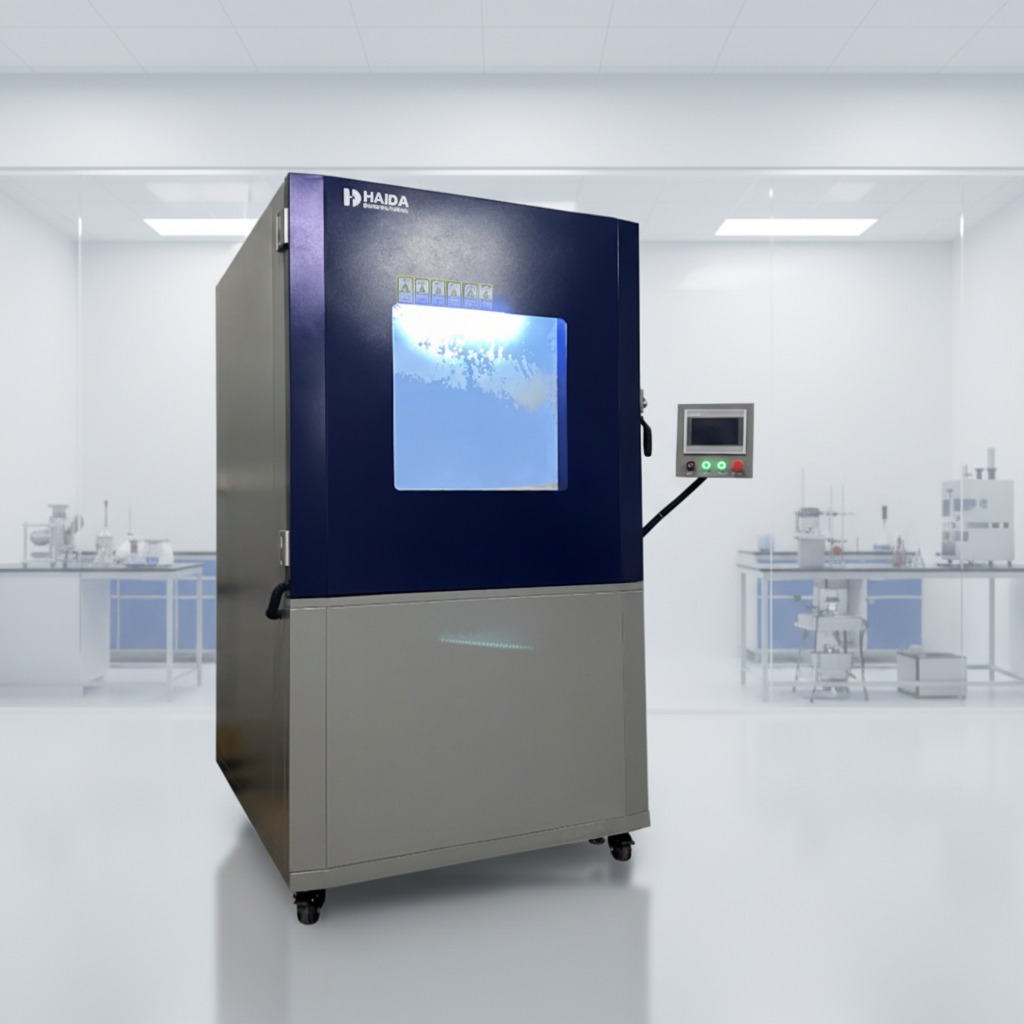

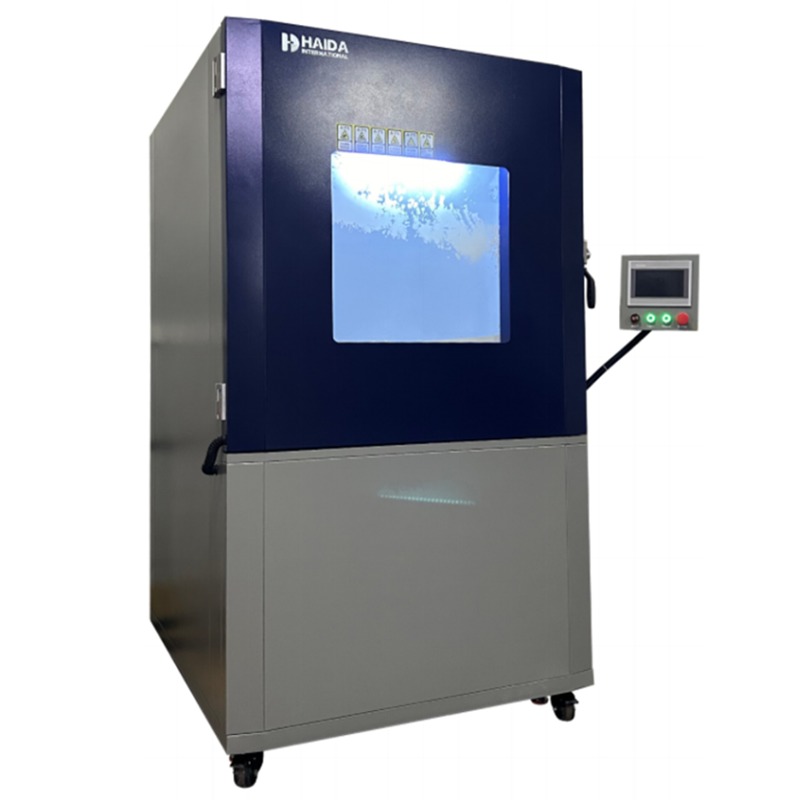

PV Module Bypass Diode Dust Testing Chamber Machine (IP6X) Environmental Dust-proof Tester
Product Overview
Model: 8089-HD Bypass Diode Dust Test Chamber (IP6X)
PV Module Bypass Diode Dust Testing Chamber Machine (IP6X) Environmental Dust-proof Tester Dust-Resistance Strength Test Equipment
This specialized environmental testing equipment is designed for dust-resistance strength testing according to IP6X standards, specifically for PV module bypass diodes.
Key Features
  • Chamber material: SUS#304 stainless steel
  • Transparent observation window for specimen monitoring during testing
  • Stainless steel blow fan with high sealing, high wind speed, and low noise
  • Funnel-type interior shell design with adjustable vibration cycles
  • Efficient dust collection and distribution system
PV Module Bypass Diode Dust Testing Chamber Machine (IP6X) Environmental Dust-proof Tester Dust-Resistance Strength Test Equipment

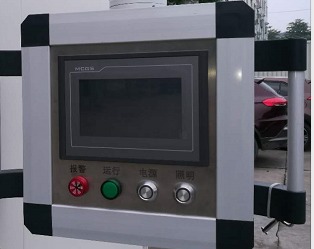

Control Panel
PV Module Bypass Diode Dust Testing Chamber Machine (IP6X) Environmental Dust-proof Tester Dust-Resistance Strength Test Equipment

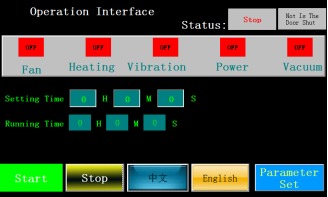

PLC Operation Interface
PV Module Bypass Diode Dust Testing Chamber Machine (IP6X) Environmental Dust-proof Tester Dust-Resistance Strength Test Equipment

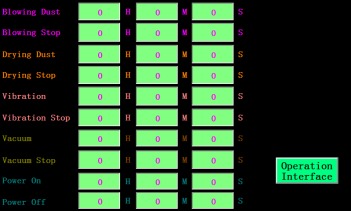

PLC Operation Interface Details
Technical Specifications
General Specifications
Packaging Dimensions: (W×D×H) 1700×1500×2200mm
Power Supply: 3-phase, AC380V±10%, 50Hz (customizable)
Gross Weight: 400kg
HS Code: 8479899990
Item Specification
Model 8089-HD
Internal Dimension (W×D×H) 800×800×800mm
External Dimension (W×D×H) 1300×1100×1800mm
Internal Material SUS304 Stainless Steel
External Material Spray Paint Type
Square Mesh Sieve Mesh hole 75μm, mesh metal wire diameter 50μm
Talcum Powder Amount 2kg/m³
Airflow Speed No more than 2m/s
Door Left open door with tempered glass
Controller PLC Touch Screen controller, programmable cycles for blowing dust time, cycle time, and pre-set test time (0s ~99m99s)
Vacuum System Pressure gauge, air filter, Pressure regulating FRL, connecting pipe, Vacuum pump
Vacuum Pump Capacity 60-600 L/H
Fan Centrifugal fan
Safety Protection Meter over-temperature function, Phase shortage protection, Power short-circuit protection
PV Module Bypass Diode Dust Testing Chamber Machine (IP6X) Environmental Dust-proof Tester Dust-Resistance Strength Test Equipment
Internal chamber with sample tray & Hopper for dust collection
PV Module Bypass Diode Dust Testing Chamber Machine (IP6X) Environmental Dust-proof Tester Dust-Resistance Strength Test Equipment
Anti-dust socket for sample connect to power source
PV Module Bypass Diode Dust Testing Chamber Machine (IP6X) Environmental Dust-proof Tester Dust-Resistance Strength Test Equipment
Mesh and parts for filtering test dust
PV Module Bypass Diode Dust Testing Chamber Machine (IP6X) Environmental Dust-proof Tester Dust-Resistance Strength Test Equipment
Design Standards

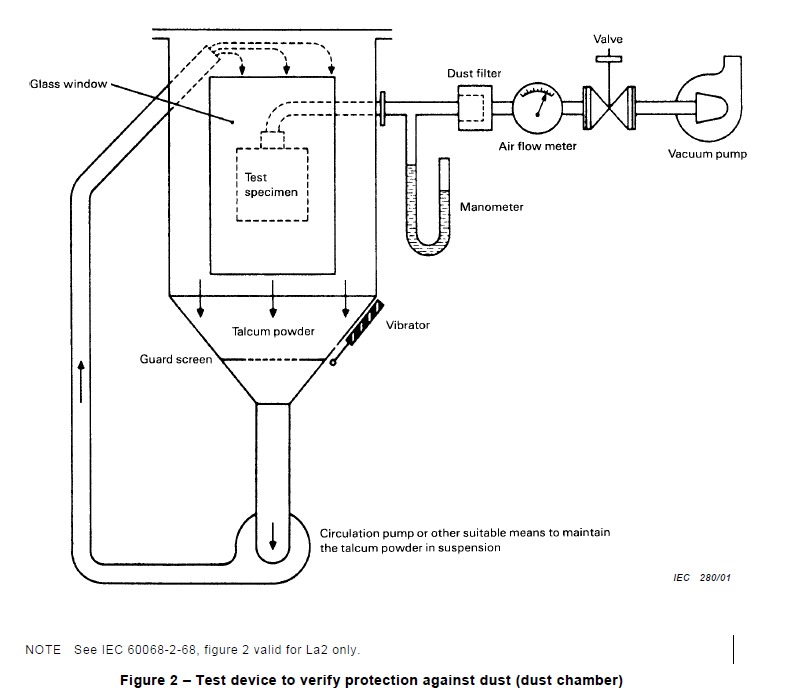

Designed in accordance with IEC60529 & IEC20653 standards
Our Service & Support
Technical Support Commitment
  • Response within 48 hours for any testing process problems
  • Solution provided within 3 working days
  • Operation videos and English operation manual available
  • Video conference support
Onsite Services
  • Device installation
  • Equipment Operation Test Technology training
  • Equipment Calibration
  • Daily maintenance and equipment maintenance
  • Free technical training for visiting factories
  • 24-hour Online contact
  • Free software upgrades
Documentation & Resources
  • Product Instruction
  • Product operation instruction/video
  • Experiment Test (test application, test report)
Problem Resolution Channels
  • Social media 24 hours online communication
  • Mail Seamless Docking
  • Video Conferencing
  • Artificial free door-to-door service
