Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
0.5%
Brand Name :
HAIDA
Place of Origin :
Guangdong, China
Application :
Photovoltaic Module Testing, PV Simulation Testing, PV Humid Testing, Humid and High-Temperature Testing, PID
customized support :
OEM, ODM
power :
220V, 50Hz
Protection Class :
/
Voltage :
220 V
warranty :
1 Year
Voltage range :
-2000V ~ 2000V
Voltage resolution :
1V
Voltage accuracy :
±3% (referencing CNAS-CL01-A021:2018)
Voltage tolerance :
0.5% (referencing IEC 62804-1-1:2020)
Current measurement range :
0~1mA Resolution: 0.01μA (as specified in IEC 62804-1-1:2020)
Acquisition interval :
≤5min(adjustable at software)
Power :
Single phase, 220V, 50Hz
MOQ :
1
Description
PV Potential Induced Degradation (PID) Testing Machine
Product Overview

The Photovoltaic Module Humid and High-Temperature Simulation Tester Equipment evaluates the ability of photovoltaic modules to resist potential-induced deterioration by simulating harsh electric field and humid heat conditions.

PV Potential Induced Degradation(PID) Testing Machine Photovoltaic Module Humid and High-Temperature Simulation Tester Equipment PV Potential Induced Degradation(PID) Testing Machine Photovoltaic Module Humid and High-Temperature Simulation Tester Equipment

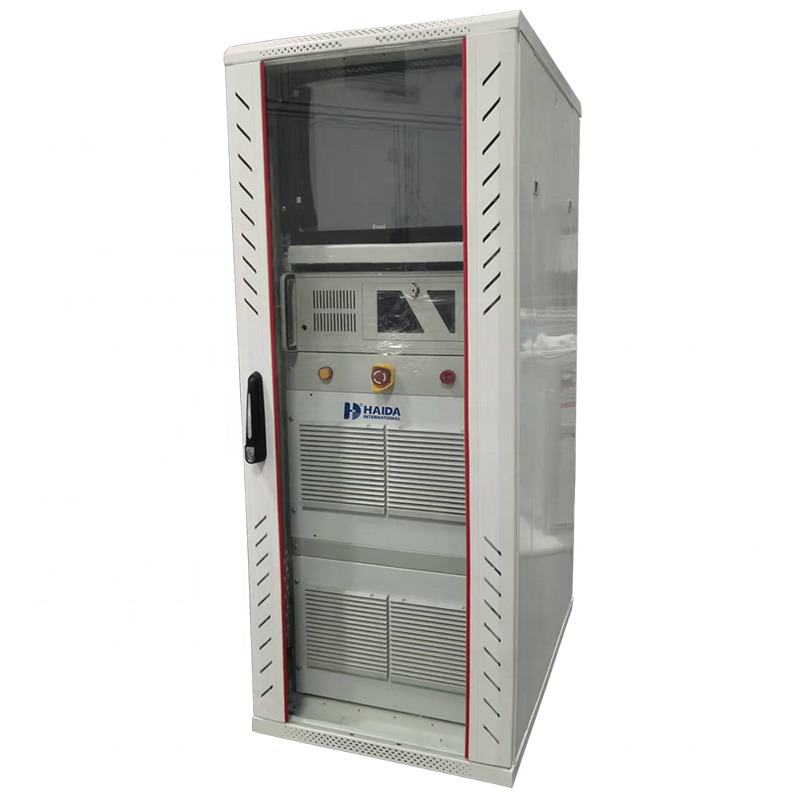

HD-E900 Potential Induced Degradation (PID) Test Machine
Technical Specifications
Parameter Specification
DC Regulated Power Supply 12 channels (Independently monitoring and control)
Each channel can independently control voltage polarity
Voltage Range -2000V ~ 2000V
Voltage Resolution 1V
Voltage Stability For continuous output of 1000V, 1500V, and 2000V, voltage fluctuation ≤2% within 500 hours
Connection Method Module frame grounded, connector shorted and connected to high-voltage terminal; for negative voltage testing and positive voltage recovery, only switch toggling needed
Voltage Application Method 20 power channels operate independently, capable of outputting different polarities and voltages
Voltage Accuracy ±3% (referencing CNAS-CL01-A021:2018)
Voltage Tolerance 0.5% (referencing IEC 62804-1-1:2020)
Current Measurement Range 0~1mA
Resolution: 0.01μA (as specified in IEC 62804-1-1:2020)
Acquisition Interval ≤5min (adjustable via software)
Safety Protection Features Overcurrent alarm, overvoltage alarm, overtemperature alarm, communication interface with environmental test chamber
Power Single phase, 220V, 50Hz
Test Standards Compliance
  • IEC61215-2: 2021 MQT 21 Potential Induced Degradation Test
  • IEC 62804-1-1:2020 "Photovoltaic (PV) modules - Test methods for the detection of potential-induced degradation Part 1-1 Crystalline silicon - Delamination"
  • IEC 63209:2019 Extended-stress testing of photovoltaic modules
PV Potential Induced Degradation(PID) Testing Machine Photovoltaic Module Humid and High-Temperature Simulation Tester Equipment PV Potential Induced Degradation(PID) Testing Machine Photovoltaic Module Humid and High-Temperature Simulation Tester Equipment

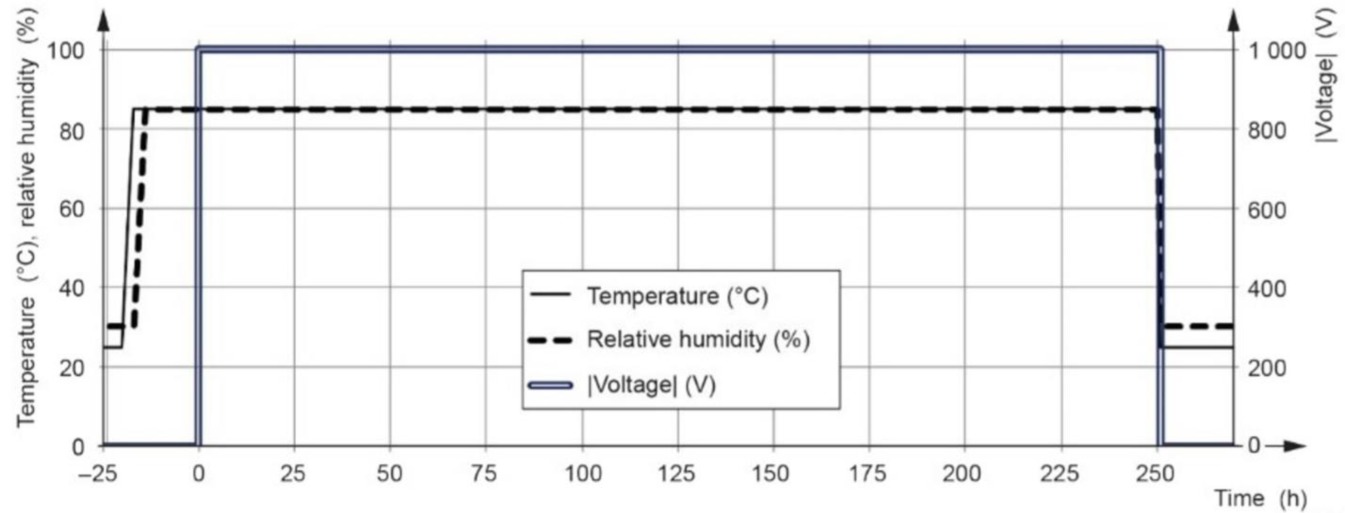

IEC 62804-1-1:2020 Test Cycle (Note: to achieve temperature and humidity control, test cycle requires combination with climate chamber)

PV Potential Induced Degradation(PID) Testing Machine Photovoltaic Module Humid and High-Temperature Simulation Tester Equipment PV Potential Induced Degradation(PID) Testing Machine Photovoltaic Module Humid and High-Temperature Simulation Tester Equipment

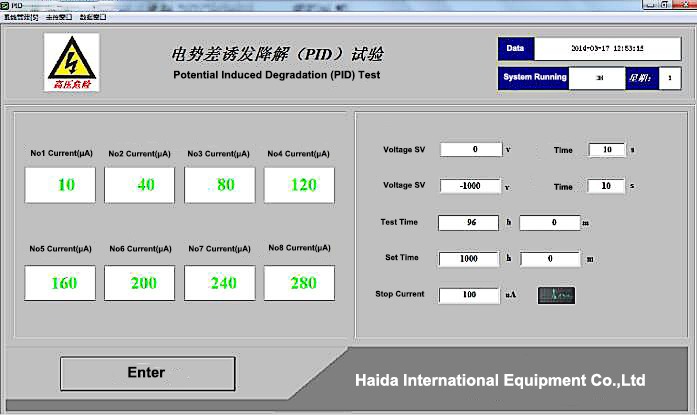

Main Interface

Company Profile
PV Potential Induced Degradation(PID) Testing Machine Photovoltaic Module Humid and High-Temperature Simulation Tester Equipment PV Potential Induced Degradation(PID) Testing Machine Photovoltaic Module Humid and High-Temperature Simulation Tester Equipment
Our Partners
PV Potential Induced Degradation(PID) Testing Machine Photovoltaic Module Humid and High-Temperature Simulation Tester Equipment PV Potential Induced Degradation(PID) Testing Machine Photovoltaic Module Humid and High-Temperature Simulation Tester Equipment
Our Service Advantages
Remote Support Services
  • If you face any problems during testing process, we promise to reply within 48 hours and provide solutions within 3 working days
  • We provide operation videos and English operation manuals
  • We offer video conference support
Onsite Services
  • Device installation
  • Equipment Operation Test Technology training
  • Equipment Calibration
  • Daily maintenance and equipment upkeep
  • Free technical training for visiting factories
  • 24-hour Online contact
  • Free software upgrades
Documentation & Resources
  • Product Instruction manuals
  • Product operation instructions and videos
  • Experiment Test documentation (test applications, test reports)
Device Problem Resolution
  • Social media 24 hours online communication
  • Seamless email support
  • Video conferencing assistance
  • Free door-to-door technical service
