Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
≤1mm
Brand Name :
HAIDA
Place of Origin :
Guangdong, China
Application :
Hail Impact Testing, Shock Testing, Photovoltaic Testing
customized support :
OEM, ODM
power :
AC380V / 50 HZ, Approx. 5 KW
Protection Class :
/
Voltage :
380 V
warranty :
1 Year
Suitable for sample size :
2.4*1.2m
X shaft move distance :
Approx. 2.4m
Y shaft move distance :
Approx. 1.2m
Locating accurate :
≤1mm
Impact area :
2.4*1.2m (suitable for different solar panel size in the range)
Locating control :
PC control and automatic locating
Machine material :
Aluminum profile structure
Test standard :
IEC61215-2:2021 MQT 17 Hail Test
MOQ :
1
Description

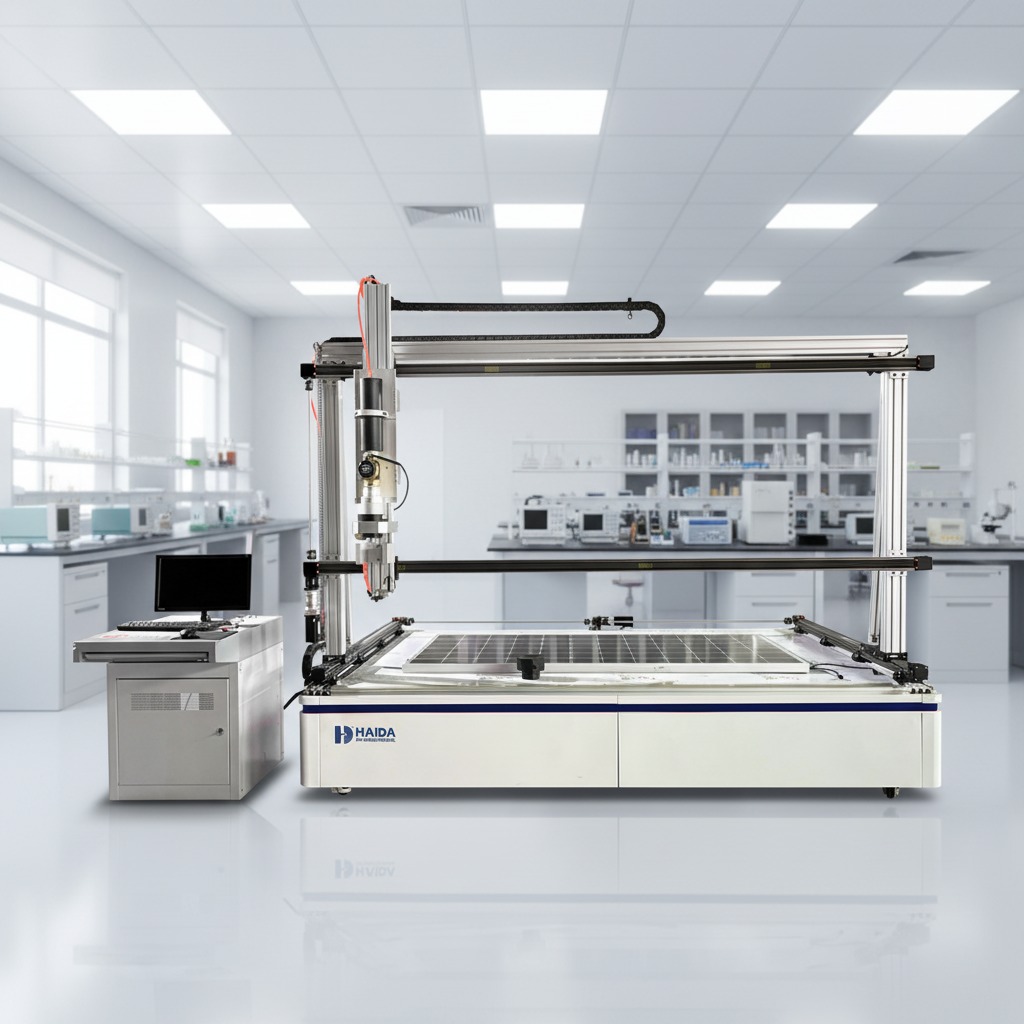

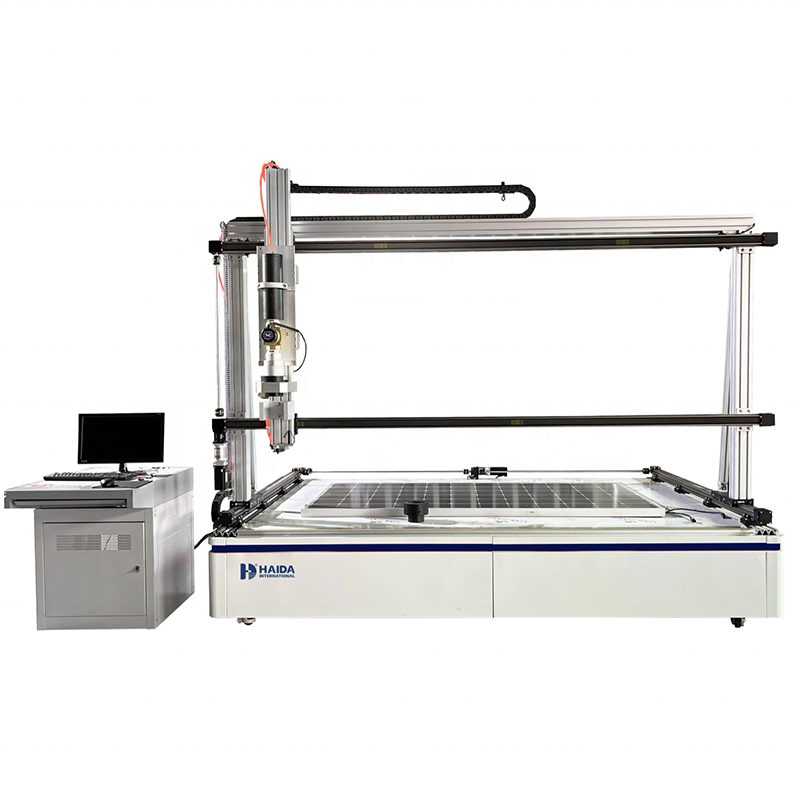

Climate Test Equipment PV Hail Impact Testing Machine
Product Overview

HD-E960 Hail Impact Test Machine verifies that PV modules are capable of withstanding the impact of hailstones, ensuring durability and reliability in harsh weather conditions.

Climate Test Equipment PV Hail Impact Testing Machine Equipment Photovoltaic Module Hail Impact Tester Hail Shock Test Chamber Climate Test Equipment PV Hail Impact Testing Machine Equipment Photovoltaic Module Hail Impact Tester Hail Shock Test Chamber

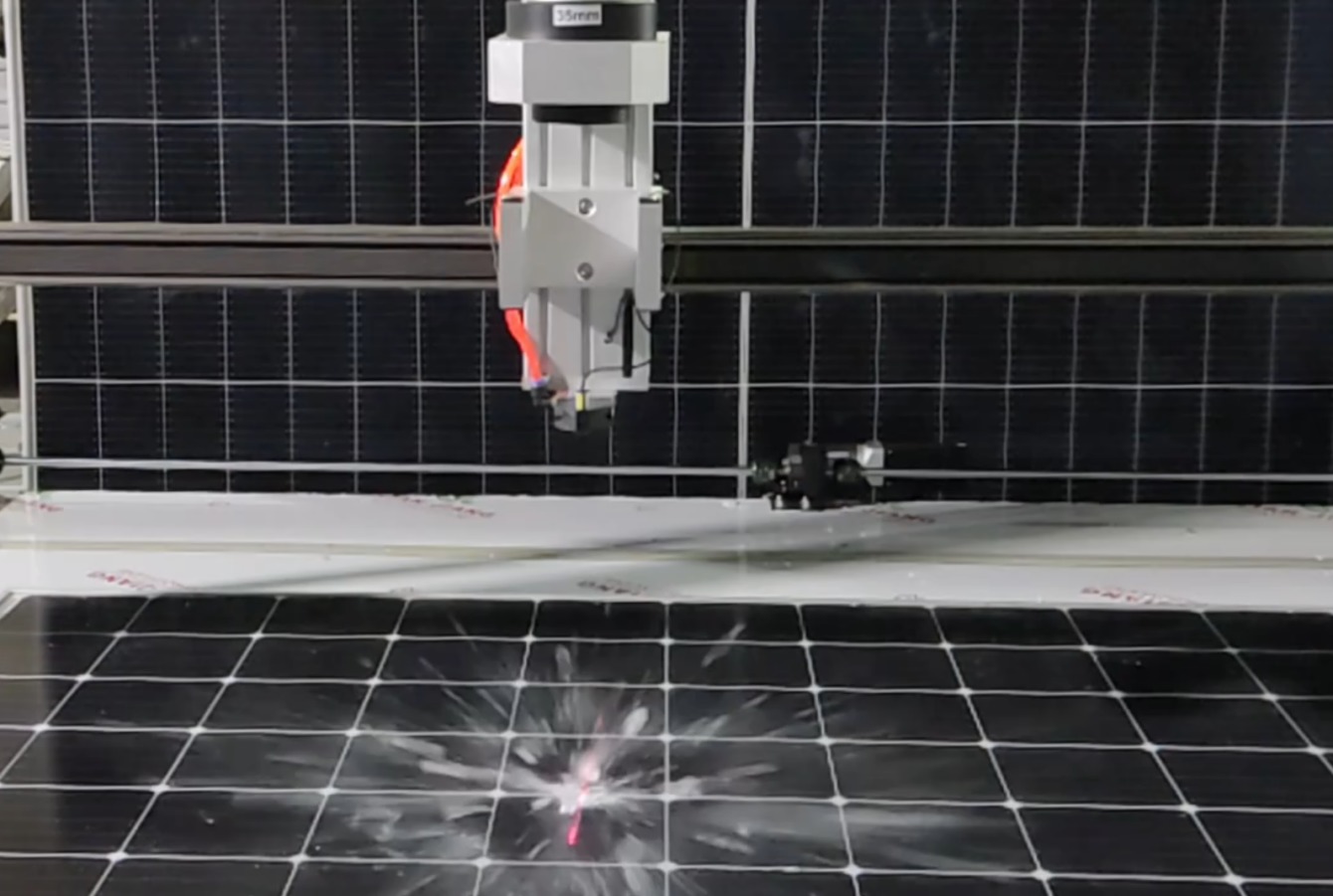

Test Demonstration
Climate Test Equipment PV Hail Impact Testing Machine Equipment Photovoltaic Module Hail Impact Tester Hail Shock Test Chamber

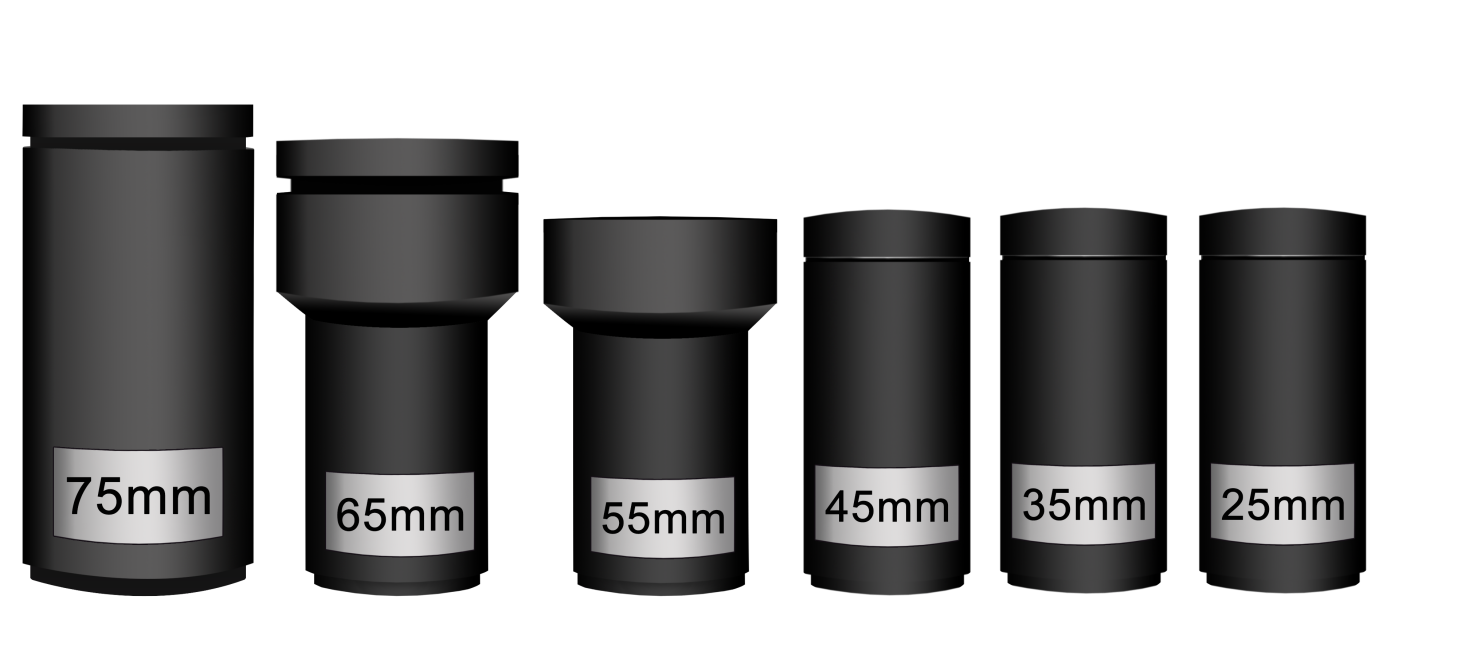

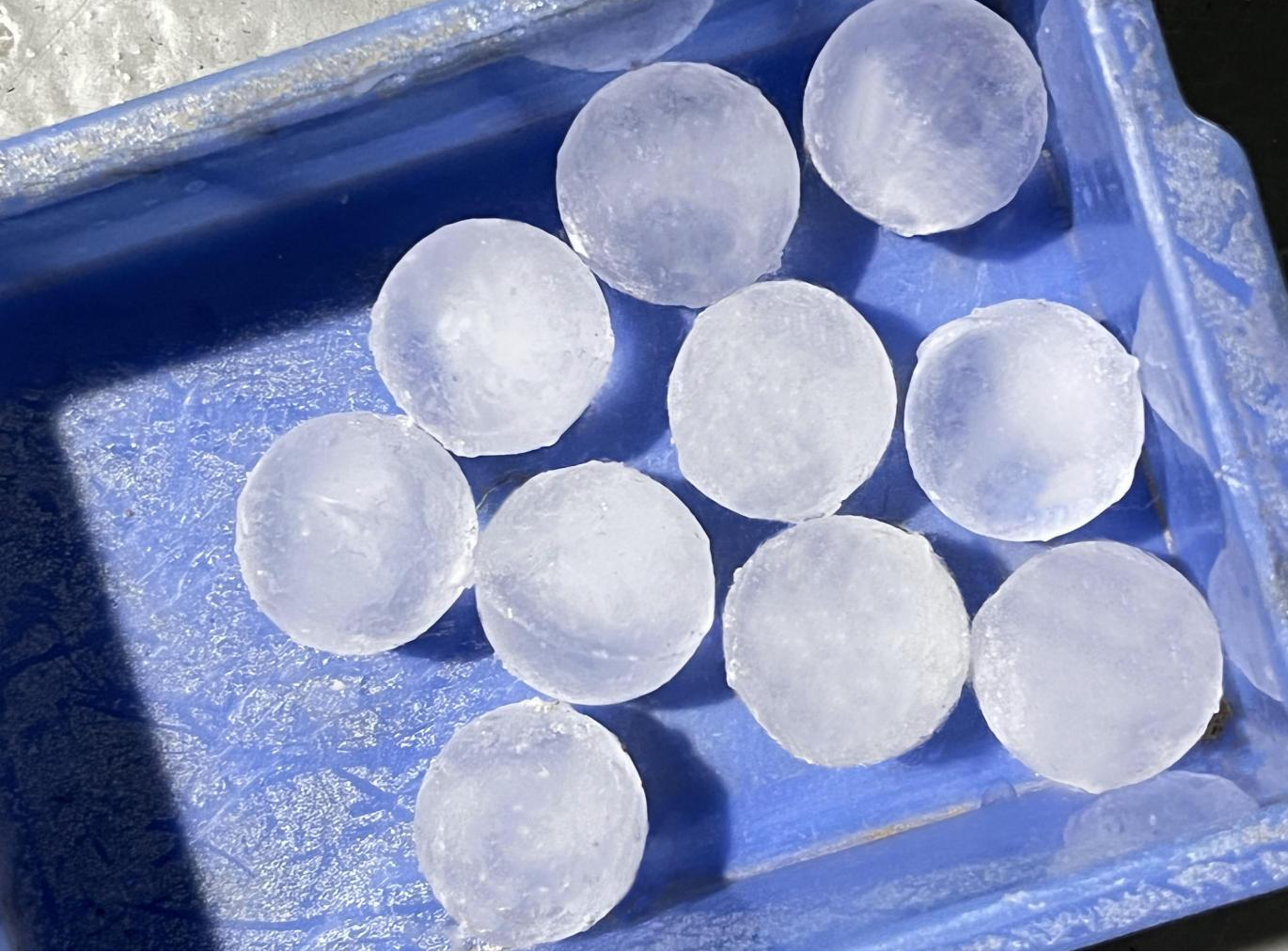

Ice Ball Specifications
Climate Test Equipment PV Hail Impact Testing Machine Equipment Photovoltaic Module Hail Impact Tester Hail Shock Test Chamber
Technical Specifications
Parameter Specification
Suitable for sample size 2.4×1.2m
X shaft move distance Approx. 2.4m
Y shaft move distance Approx. 1.2m
Locating accuracy ≤1mm
Impact area 2.4×1.2m (adaptable for different solar panel sizes)
Locating control PC control with automatic positioning
Testing velocity system Infrared velocity sensor with ±5% accuracy, 0-50m/s range
Ice ball mould specifications Multiple mould sets for 25mm to 75mm ice balls, CNC processed special materials
System software Chinese/English interface, data export in multiple formats
Machine material Aluminum profile structure
Launch device Air compressor powered (6-8bar), import guide rails and servo motors
Test standard IEC61215-2:2021 MQT 17 Hail Test
Ice Ball Performance Data
Diameter (mm) Mass (g) Speed (m/s) Diameter (mm) Mass (g) Speed (m/s)
25 7.53<5% 23.0±5% 35 20.7<5% 27.2±5%
45 43.9<5% 30.7±5% 55 80.2<5% 33.9±5%
65 132.0<5% 36.7±5% 75 203.0<5% 39.5±5%
Company Profile
Climate Test Equipment PV Hail Impact Testing Machine Equipment Photovoltaic Module Hail Impact Tester Hail Shock Test Chamber
Our Partners
Climate Test Equipment PV Hail Impact Testing Machine Equipment Photovoltaic Module Hail Impact Tester Hail Shock Test Chamber
Our Service Advantages
Technical Support
  • 48-hour response time for technical issues
  • Solutions provided within 3 working days
  • Operation videos and English manuals available
  • Video conference support
Onsite Services
  • Professional device installation
  • Equipment operation and technical training
  • Precision equipment calibration
  • Daily maintenance guidance
  • Free technical training for visiting factories
  • 24-hour online contact support
Documentation & Resources
  • Free software upgrades
  • Comprehensive product instructions
  • Detailed operation manuals and videos
  • Experiment test applications and reports
Problem Resolution
  • 24-hour social media communication
  • Seamless email support
  • Video conferencing solutions
  • Free on-site technical service
