6 Cavity PVC Corner Bead Profile Extrusion Making Machine
6 Cavity PVC Corner Bead Profile Extrusion Making Machine
6 Cavity PVC Corner Bead Profile Extrusion Making Machine
6 Cavity PVC Corner Bead Profile Extrusion Making Machine
6 Cavity PVC Corner Bead Profile Extrusion Making Machine
6 Cavity PVC Corner Bead Profile Extrusion Making Machine
6 Cavity PVC Corner Bead Profile Extrusion Making Machine
6 Cavity PVC Corner Bead Profile Extrusion Making Machine
Specifications
Brand Name :
Purple Horn
Model Number :
PL65
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1set
Price :
dollar 28000-39000$/set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100sets/year
Delivery Time :
30-50working days
Packaging Details :
Wood package+wood pallet+stretch film package
Raw material :
PVC powder+Caco3+additives
Final product :
PVC Corner bead, angle bead, guard bead
Output :
8 in 1, 6 in 1, 4 in 1
Main extruder model :
SJZ51/105, SJZ65/132 Conical Twin Screw Extruder
Extrusion speed :
18-24m/min
Main motor brand :
Siemens beide
Color :
Customized
Application :
Protecting&decorating the edges of tile
Punching hole shape :
Square/ Round/ Triangle or Customized
Screw design :
Double-screw,conical twin screw
Condition :
New
Automatic grade :
Automatic
After-sales service provided :
Engineers available to service machinery overseas
Voltage :
can be Customized
Plastic processed :
PVC
Dimension(l*w*h) :
25M*2.5M*3.5M
Warranty :
12 Months
Inverter :
ABB
Processing type :
Extruding Machine,Extrusion Machine
Temperature controller :
Omron
Description

6 Cavity Plastic UPVC PVC Profile Corner Bead Extrusion Making Machine

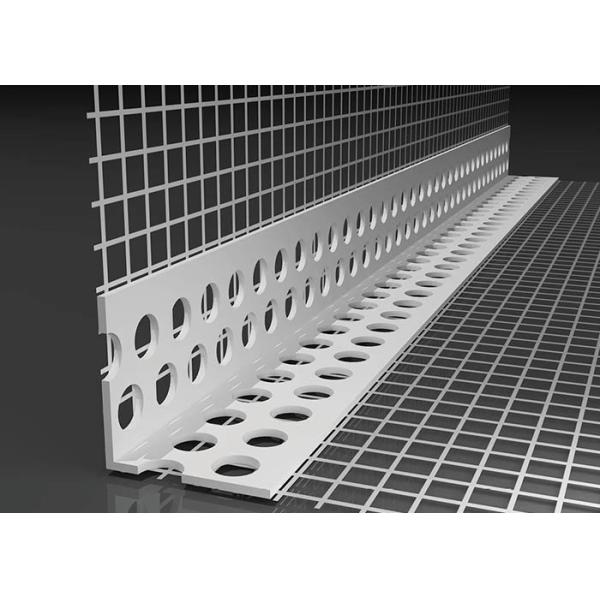

PVC Corner Bead has a wide range of usage, as corner guards, wall protection, stair nosing, hiding screw holes and many more applications around the home and commercial premises.

This pvc corner bead extrusion line is designed for extruding PVC corner bead, angle trim, which is a kind of PVC profile particularly designed for protecting corners of wall, door and window. As a replacement for the traditional methods to repair wall corner, it has been extensively used for construction, decoration, and wall protection. Upon clients' request, we can equip punching, printing, coding or other additional equipment for the PVC profile extrusion line.
Applications:
PVC beads, PVC L beads, furniture edge banding, etc


Technical Parametes:

Model Mold Max extrusion volume Motor power Heating power
SJSZ51 one mold with 4 cavities 120kg/h 22kw 12kw
SJSZ65 one mold with 6 cavities 280 kg/h 37kw 15kw

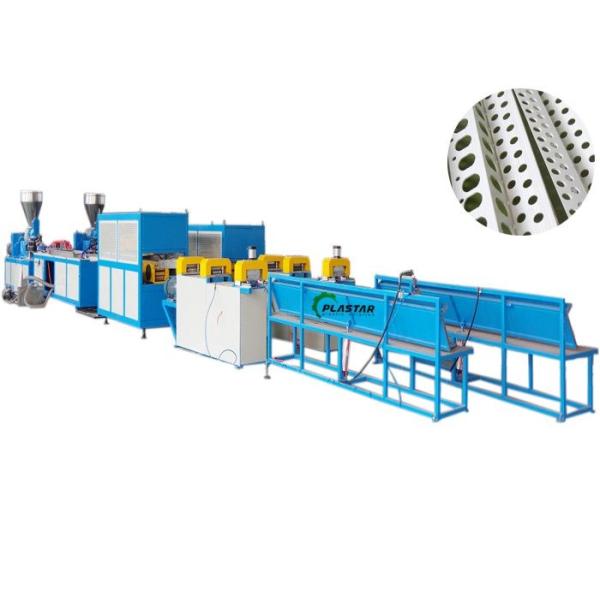

The PVC Corner Bead Extrsuion Line is composed by following parts:

No. Item
1 Spring feeder
2 SJZ65/132 Conical Twin Screw Extruder
3 Extrsuion mold
4 Vacuum Calibration Table
5 Haul off machine

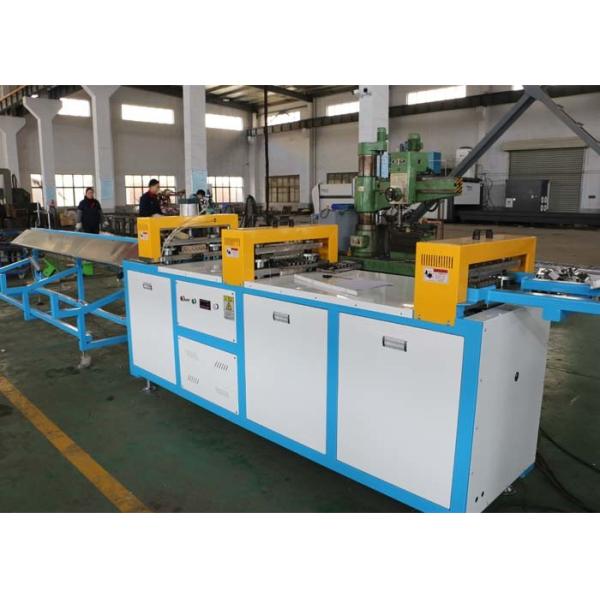

6 Punching & cutter machine
7 Stacker
8 Crusher&pulverizer for recycling the waste

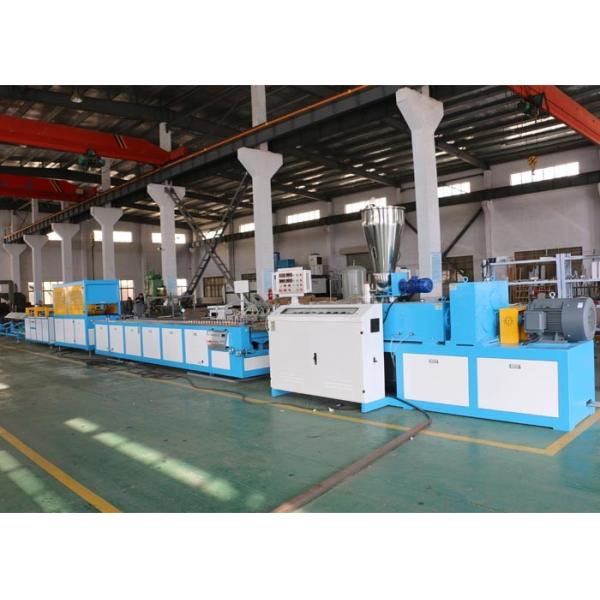

Machine pictures for reference:

6 Cavity PVC Corner Bead Profile Extrusion Making Machine

6 Cavity PVC Corner Bead Profile Extrusion Making Machine

6 Cavity PVC Corner Bead Profile Extrusion Making Machine6 Cavity PVC Corner Bead Profile Extrusion Making Machine

About our company:

Zhangjiagang Purple Horn Machinery Co., Ltd. is a professional manufacturer for kinds of plastic machines, such as plastic pipe extrusion line, plastic profile extrusion line, waste plastic recycling machine, plastic crusher & Shredder and plastic process auxiliary machines, etc.
The target of Purple Horn Machinery Co.,Ltd is to offer the best quality machines to the customers from all over the world. With the advanced technology, experienced engineers and skilled workers, we have the capability to manufacture specific machines according to customer's requirement.
Excellent quality and professional service is the promise made by Purple Horn Machinery Co.,Ltd to new and old friends. We are looking forward to establish good cooperation relationship with you on the basis of mutual benefits.
