ASA PMMA Plastic Glazed Ceiling Tile PVC Profile Extrusion Line Roofing Sheet
ASA PMMA Plastic Glazed Ceiling Tile PVC Profile Extrusion Line Roofing Sheet
ASA PMMA Plastic Glazed Ceiling Tile PVC Profile Extrusion Line Roofing Sheet
ASA PMMA Plastic Glazed Ceiling Tile PVC Profile Extrusion Line Roofing Sheet
ASA PMMA Plastic Glazed Ceiling Tile PVC Profile Extrusion Line Roofing Sheet
ASA PMMA Plastic Glazed Ceiling Tile PVC Profile Extrusion Line Roofing Sheet
ASA PMMA Plastic Glazed Ceiling Tile PVC Profile Extrusion Line Roofing Sheet
ASA PMMA Plastic Glazed Ceiling Tile PVC Profile Extrusion Line Roofing Sheet
Specifications
Brand Name :
Purple Horn
Model Number :
SJ120
Certification :
CE, ISO9001
Place of Origin :
CHINA
MOQ :
1 set
Price :
Dollar 50000-95000$/set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 sets per month
Delivery Time :
10-40 working days
Packaging Details :
Wood pallet+stretch film
Processed plastic :
PMMA ASA PVC
Dimension(L*W*H) :
55000*1500*3500mm
Screw Design :
Conical twin-screw
Die type :
T type, thickness adjustable
Capacity :
120 - 580 kg/h
Sheet wide :
1220-1560mm
Thickness :
2-12mm
Core Components :
PLC, Engine, Gearbox
Warranty :
1 Year
Final product :
Glazed Roof Tile
Description

PVC ASA PMMA Plastic Glazed Ceiling Tile PVC Roofing Sheet Extruding Making Machine

PMMA ASA PVC profile production line

Glazed tile roofing sheet Applications

The Plastic Roofing Tile Roll Forming Machine is mainly used in the production of plastic glazed tile.The plastic glazed tiles are widely used in the garden-style factory,tourist scenic spots, pavilions,hotels,family building, etc.

Product Flows

High speed mixer---conical twin screw extruder---co-extruder---co-extrusion die head---embossing and cooling rollers---forming machine---saw cutting machine---stacker---pneumatic pressing machine for ridge tiles moulds

PMMA ASA PVC Glazed Roofing Tile Extruding Making Machine including:

No. Machine Quantity
1 Screw loader 1 set
2 SJZ80/156 conical twin-screw extruder 1 set
3 SJ65/35 single screw co-extruder 1 set
4 Extrusion mould and flow distributor 1 set
5 Embossing roller 1 set
6 Side cutter 1 set
7 Glazed-tile forming machine 1 set
8 Cutter 1 set
9 Stacker 1 set

Auxiliary machine:

No. Machine Quantity
1 Mould: Main rigde tile; Oblique ridge tile; T cock; Tile end 4set
2 Pressing machine and oven 2set
3 SRL-Z500/1000 Mixing unit 1set
4 Screw loader 1set
5 SWP360 Crusher 1set
6 SMP600 Miller 1set

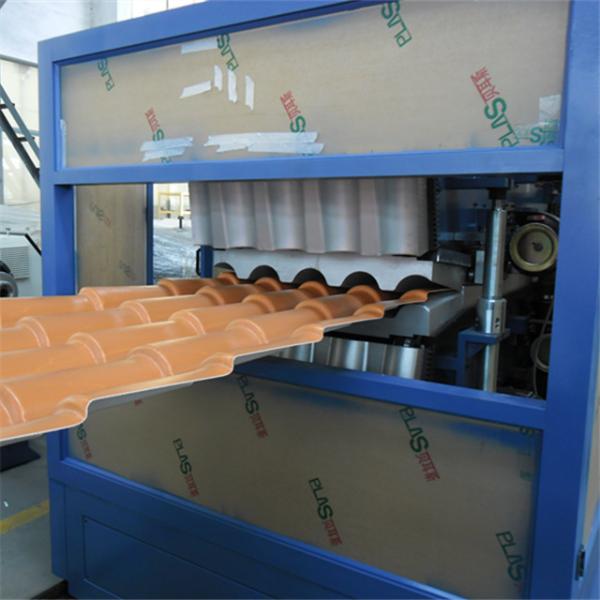

PVC ASA PMMA Roofing Sheet Extrusion Line pictures:

ASA PMMA Plastic Glazed Ceiling Tile PVC Profile Extrusion Line Roofing SheetASA PMMA Plastic Glazed Ceiling Tile PVC Profile Extrusion Line Roofing SheetASA PMMA Plastic Glazed Ceiling Tile PVC Profile Extrusion Line Roofing SheetASA PMMA Plastic Glazed Ceiling Tile PVC Profile Extrusion Line Roofing Sheet
