WPC Foam Board Production Line PVC Profile Manufacturing Machine
WPC Foam Board Production Line PVC Profile Manufacturing Machine
WPC Foam Board Production Line PVC Profile Manufacturing Machine
WPC Foam Board Production Line PVC Profile Manufacturing Machine
WPC Foam Board Production Line PVC Profile Manufacturing Machine
WPC Foam Board Production Line PVC Profile Manufacturing Machine
WPC Foam Board Production Line PVC Profile Manufacturing Machine
WPC Foam Board Production Line PVC Profile Manufacturing Machine
Specifications
Brand Name :
Purple Horn
Model Number :
SJZ65/132
Certification :
CE, ISO9001
Place of Origin :
CHINA
MOQ :
1 set
Price :
Dollar 50000-120000$/set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 sets per month
Delivery Time :
50-90 working days
Packaging Details :
Wood pallet+stretch film
Raw material :
PVC+wood+caco3+additive
Name :
PVC Foam Board production line
Screw Design :
Double-screw
Twin Screw Type :
Co-rotating conical Twin-screw
Inverter :
ABB Frequency Controller
Motor :
Siemens brand
Dimension(L*W*H) :
26*3*2.8M
Board thickness :
5-50mm
Description

PVC WPC Foam Board Making Machine Extrusion Line Manufacturing Machine

PVC/WPVC Foam Board production line

1,PVC WPC foam board machine production line
PVC/PVC-WPC foam board can be used for furniture & construction function.
used for furniture, it is free foam type. one extruder with T die is ok.
used for construction, it is surface co-extruded with pure PVC no foam, so surface is more stronger than free foam type, it is good used for concrete formworkers.
free foam & surfacce co-extruder (also called skinning foam ) is there one more extruder and division connection part for die. others are same. so it means you invest an skinning foam board line, it also can produce free foam type board.

usually foam board size 4' wide, 8' length, 5-25mm thickness, also some client want MAX to 35mm, or 40mm thickness, it is ok to be manufactured.

2,Machinery introduction
Produce processing:
raw material mixing--feeding---extrusion----forming and cooling----cooling---hauling--cutting

Equipment list :

1 Automatic weigh and loading system
2 Hot/cooling mixer SRL500/1000
3 Mixing material storehouse 4tons
4 Spring type of loader 700Kg/hr
5 Twin screw extruder SJZ80/156
6 Twin screw extruder SJZ51/105
7 T-die and calibrating system 1220mm, 915mm
8 PUR glue coating system optional
9 16 roller haul off unit
10 Automatic cutting with dust suciton
11 Tipping stacker

Specification of PVC foam board:

Main Dimension L: 2200 W: 1220mm T: 6-12mm
L: 2440 W: 600mm T: 6-12mm
L:1200 W: 1200mm T: 6-12mm
L: 600 W: 600mm T: 6-12mm
Specification 1) surface color Wood, cloth, marble
2) Top layer PVC film
3) Material PVC foam
4) Acc Lightgage steel joist or glue
5) Lacquer UV
6) Surface Effect Smooth,embossed, shinning or matt etc.
7) Gloss Matt 30±5%, Semi Gloss 50±5%, High Gloss 70±5%
8) Production Line PUR hot lamination
9) Joint 4-side T&G with micro bevel or square edge
Distinctive Feature

♦ Damp-proof and water-proof

♦ Good heat insulation and noise insualation

♦ More stable, energy-saving and healthy

♦ Rot-proof and long life

♦ Natural and environment friendly

♦ small heavy
Consumer Benefits

♦ good health for family

♦ long life and easy to exchange

♦ wonderful color
Installation

♦ Installation: glue or lightgage steel joist

♦ Precision cutting without edge broken

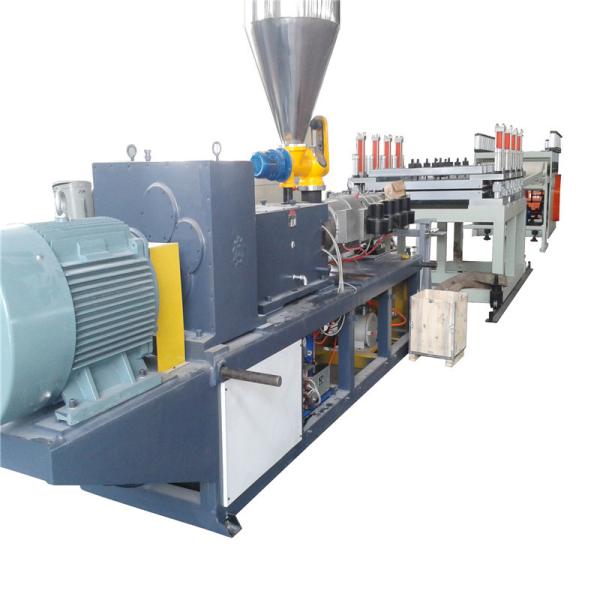

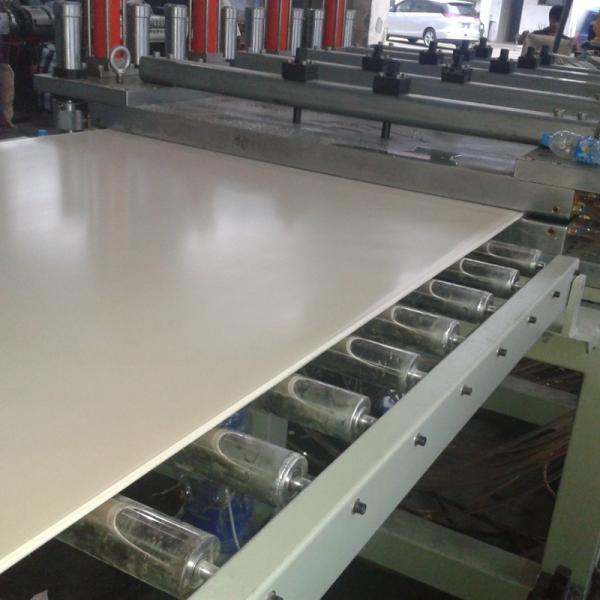

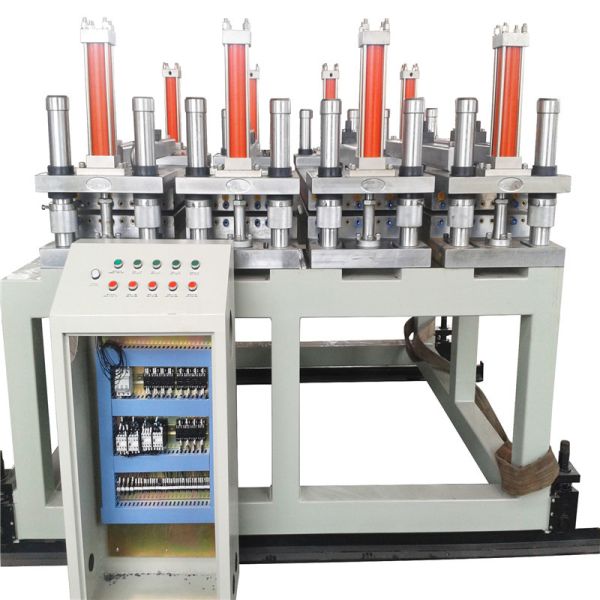

Machine pictures for reference:

WPC Foam Board Production Line PVC Profile Manufacturing MachineWPC Foam Board Production Line PVC Profile Manufacturing MachineWPC Foam Board Production Line PVC Profile Manufacturing Machine
