6 In 1 PVC Profile Extrusion Machine PVC Corner Bead Extrusion Line With Punching Holes
6 In 1 PVC Profile Extrusion Machine PVC Corner Bead Extrusion Line With Punching Holes
6 In 1 PVC Profile Extrusion Machine PVC Corner Bead Extrusion Line With Punching Holes
6 In 1 PVC Profile Extrusion Machine PVC Corner Bead Extrusion Line With Punching Holes
6 In 1 PVC Profile Extrusion Machine PVC Corner Bead Extrusion Line With Punching Holes
6 In 1 PVC Profile Extrusion Machine PVC Corner Bead Extrusion Line With Punching Holes
Specifications
Brand Name :
Purple Horn
Model Number :
PL65
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1set
Price :
dollar 28000-39000$/set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100sets/year
Delivery Time :
20-40working days
Packaging Details :
Wood package+wood pallet+stretch film package
Raw material :
PVC powder
Final product :
PVC Corner bead, angle bead, guard bead
Output :
8 in 1, 6 in 1, 4 in 1
Main extruder model :
SJZ51/105, SJZ65/132 Conical Twin Screw Extruder
Extrusion speed :
18-24m/min
Main motor brand :
Siemens beide
Color :
Customized
Application :
Protecting&decorating the edges of tile
Punching hole shape :
Square/ Round/ Triangle or Customized
Description

6 in 1 Plastic PVC Corner Bead Extrusion Line with Punching Holes

PVC Angles have a wide range of uses, as corner guards, wall protection, stair nosing, hiding screw holes and many more applications around the home and commercial premises.

This extrusion equipment is designed for extruding PVC corner bead, angle trim, which is a kind of PVC profile particularly designed for protecting corners of wall, door and window. As a replacement for the traditional methods to repair wall corner, it has been extensively used for construction, decoration, and wall protection. Upon clients' request, we can equip punching, printing, coding or other additional equipment for the PVC profile extrusion line.
Applications:
PVC beads, PVC L beads, furniture edge banding, etc
Technical Parametes:

Model Mold Max extrusion volume Motor power Heating power
SJSZ51 one mold with 4 cavities 120kg/h 22kw 12kw
SJSZ65 one mold with 6 cavities 280 kg/h 37kw 15kw

The PVC Corner Bead Extrsuion Line is composed by following parts:

No. Item
1 Spring feeder
2 SJZ65/132 Conical Twin Screw Extruder
3 Extrsuion mold
4 Vacuum Calibration Table
5 Haul off machine
6 Punching & cutter machine
7 Stacker
8 Crusher&pulverizer for recycling the waste

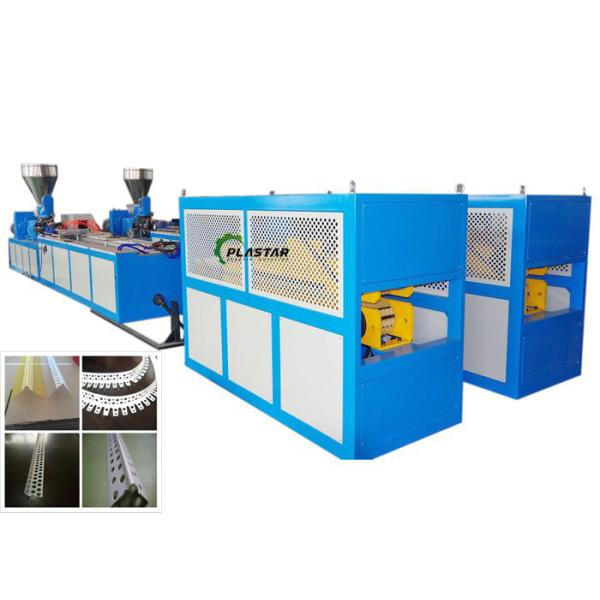

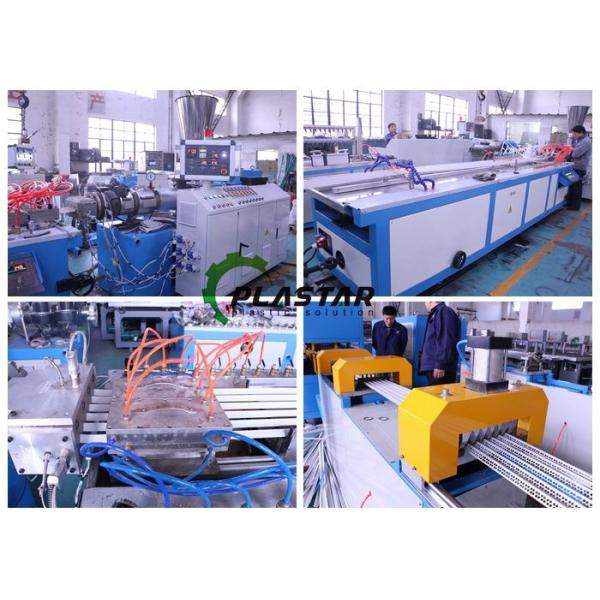

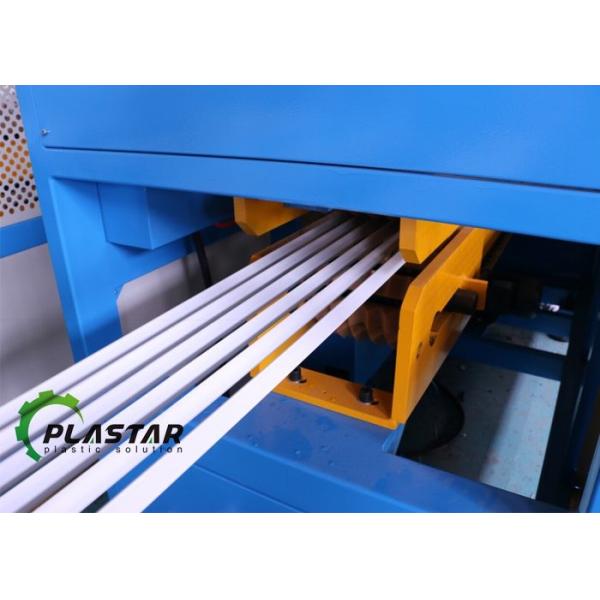

Machine pictures for reference:

6 In 1 PVC Profile Extrusion Machine PVC Corner Bead Extrusion Line With Punching Holes

6 In 1 PVC Profile Extrusion Machine PVC Corner Bead Extrusion Line With Punching Holes

6 In 1 PVC Profile Extrusion Machine PVC Corner Bead Extrusion Line With Punching Holes

6 In 1 PVC Profile Extrusion Machine PVC Corner Bead Extrusion Line With Punching Holes
