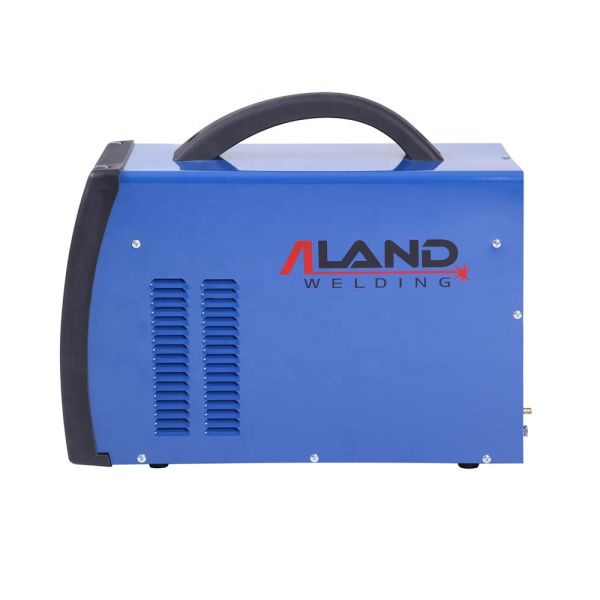

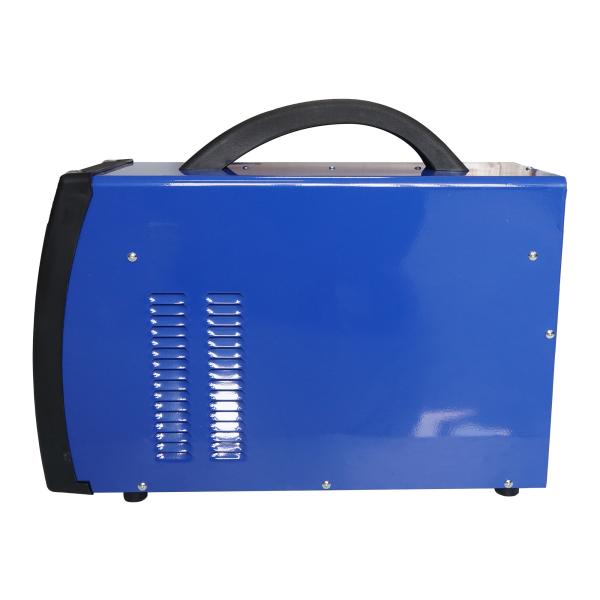

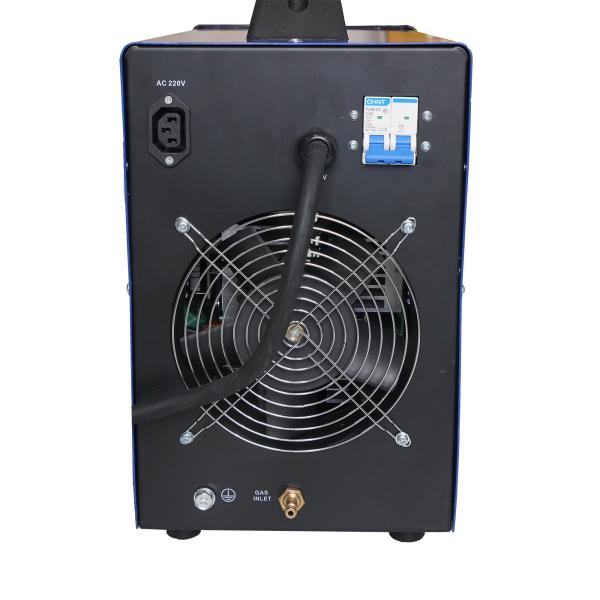

230V LCD Tig Ac Dc Mma Welding Machine Aluminum Welder
230V LCD Tig Ac Dc Mma Welding Machine Aluminum Welder
230V LCD Tig Ac Dc Mma Welding Machine Aluminum Welder
230V LCD Tig Ac Dc Mma Welding Machine Aluminum Welder
230V LCD Tig Ac Dc Mma Welding Machine Aluminum Welder
230V LCD Tig Ac Dc Mma Welding Machine Aluminum Welder
230V LCD Tig Ac Dc Mma Welding Machine Aluminum Welder
230V LCD Tig Ac Dc Mma Welding Machine Aluminum Welder
230V LCD Tig Ac Dc Mma Welding Machine Aluminum Welder
230V LCD Tig Ac Dc Mma Welding Machine Aluminum Welder
230V LCD Tig Ac Dc Mma Welding Machine Aluminum Welder
230V LCD Tig Ac Dc Mma Welding Machine Aluminum Welder
Specifications
material / metal processed :
Carbon Steel, Stainless Steel, Aluminium alloy
rated input voltage :
220 V
max. load power capacity :
9.2KVA
output polarity :
AC/DC TIG
rated duty cycle @40°c (tig) :
60%
rated output voltage :
220 V
Welding Current/Voltage Range :
TIG: 5-250A, MMA: 5-200A
condition :
New
Place of Origin :
Beijing, China
Brand Name :
TrustMIG
pulse frequency :
50-60Hz
motor type :
DC MOTOR
dimensions :
560*240*460mm
usage :
PULSE AC DC TIG MMA Welding
warranty :
1 Year
weight (kg) :
28
feature :
High Quantity
Plug Type :
US PLUG, european plug, british plug, australian plug
Rated Output Current :
250A
Welding Thickness :
25mm, 10mm, 5mm, 20mm
Product name :
IGBT Inverter Pulse AC DC TIG welder Digi TIG250 AC DC PULSE LCD
Color :
As requested
Functions :
PULSE AC DC TIG MMA
Other functions :
SPOT, MIX, REMOTE
Current range :
TIG: 5-250A, MMA: 5-200A
Max. Load Power Capacity :
4.6KVA
110V 220V Dual Voltage :
Optional
Rate duty cycle :
60%
MIX TIG :
Yes
LCD Display :
Yes
Description

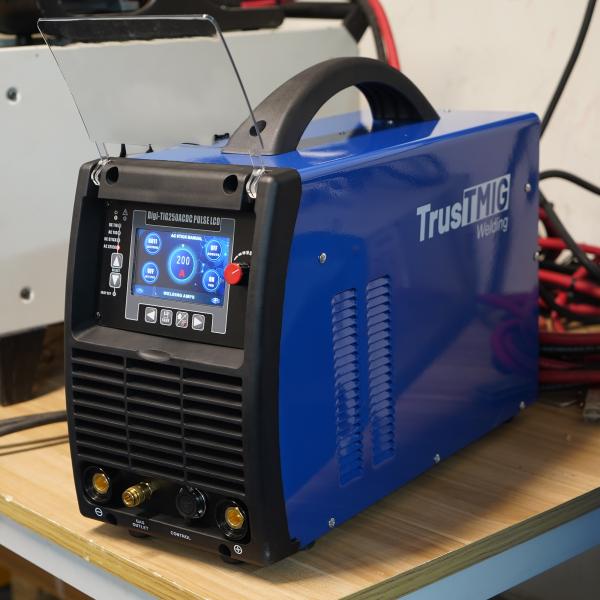

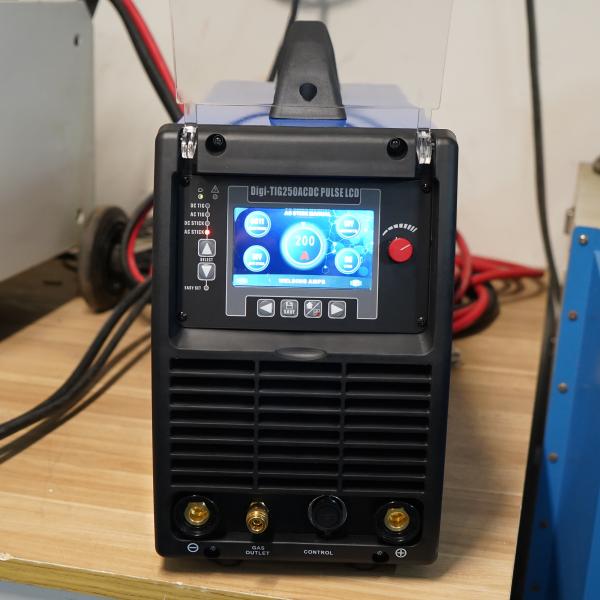

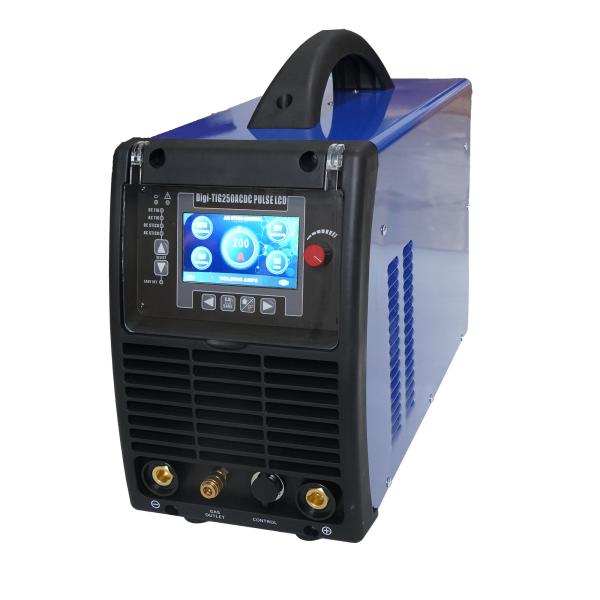

IGBT Inverter DC MMA ACTIG DCTIG PULSE TIG 3 IN 1 Welder DIGI-TIG 250AC DC PULS LCD

Product Description

What can you expect from our DIGI-TIG 250AC DC PULS LCD?
Functions: PULSE TIG, AC TIG, DC TIG, DC MMA
Suitable Material: All ferrous metals copper, Aluminium , titanium, stainless steel, and welding in all position.

Features:
1. Pulse MIG/Pulse TIG/Synergic MIG/MMA 3IN1 multi-process
2. Lift-TIG
3. IGBT technology
4. Full Digital Control Panel, Friendly Operation Panel
5. MIG has synergic function that automatically adjusts the wire speed when increases or decreases the voltage.
6. Hot Arc Start, arc force, anti-stick function.
7. 2T/4T function
8. Microprocessor inside, 10 channels memory to facilitate saving time and save your settings favorites.
9. Quickly gas connector, Easy Operation.
10. Over thermal and Current Protection.
11. 10kg/200mm wire spool.
12. Spool Gun socket optional.

230V LCD Tig Ac Dc Mma Welding Machine Aluminum Welder
230V LCD Tig Ac Dc Mma Welding Machine Aluminum Welder
230V LCD Tig Ac Dc Mma Welding Machine Aluminum Welder
230V LCD Tig Ac Dc Mma Welding Machine Aluminum Welder
230V LCD Tig Ac Dc Mma Welding Machine Aluminum Welder
Included Accessories:
230V LCD Tig Ac Dc Mma Welding Machine Aluminum Welder
230V LCD Tig Ac Dc Mma Welding Machine Aluminum Welder
230V LCD Tig Ac Dc Mma Welding Machine Aluminum Welder

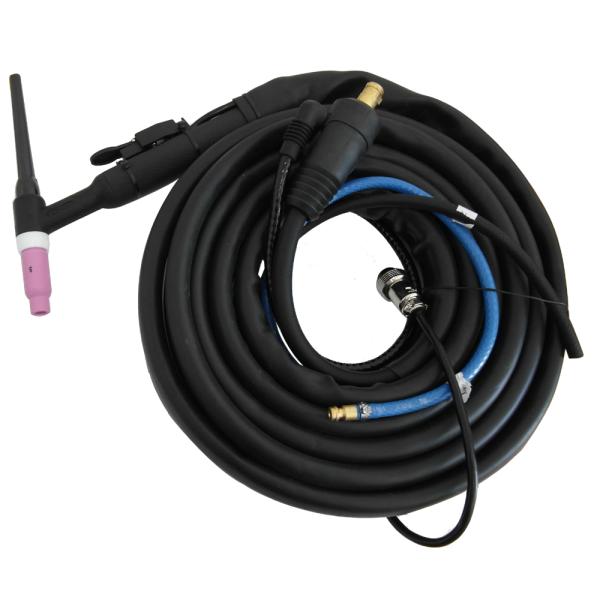

TIG Torch 3m
Regulator

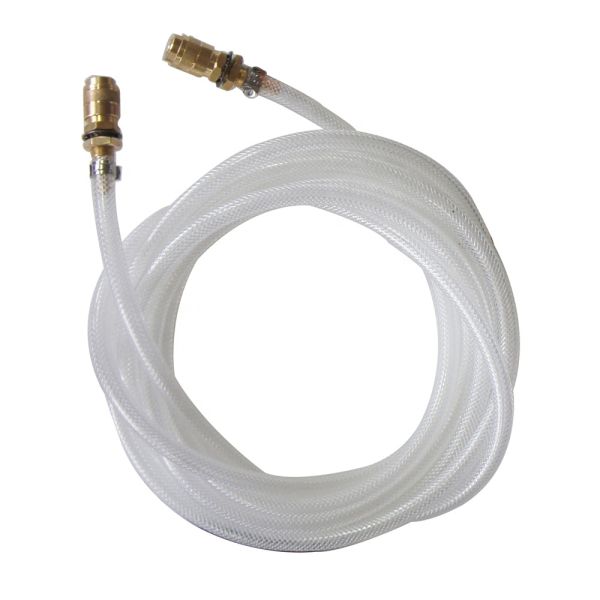

Gas hose 2m
230V LCD Tig Ac Dc Mma Welding Machine Aluminum Welder
230V LCD Tig Ac Dc Mma Welding Machine Aluminum Welder
230V LCD Tig Ac Dc Mma Welding Machine Aluminum Welder

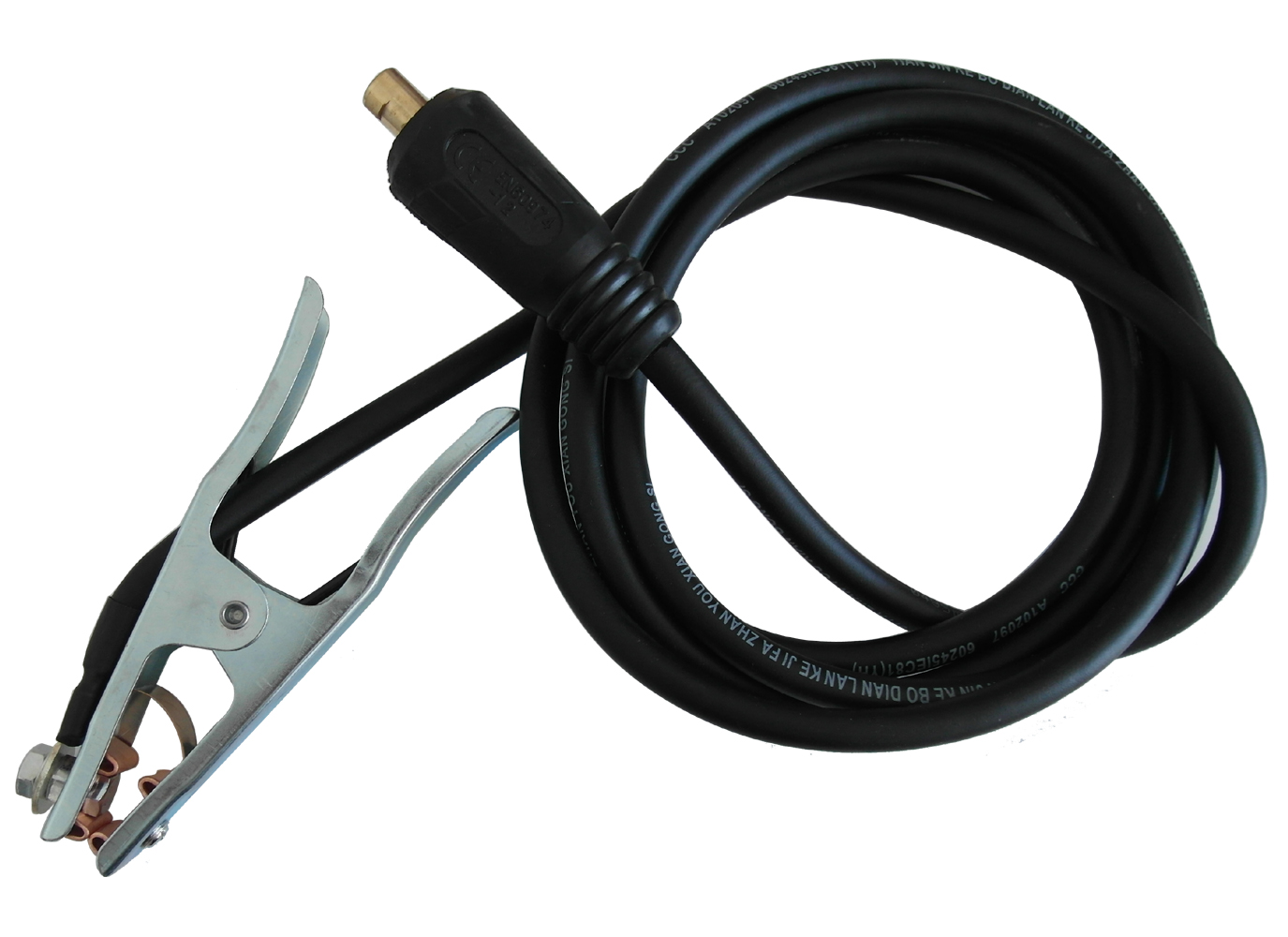

300A Earth Clamp 3m

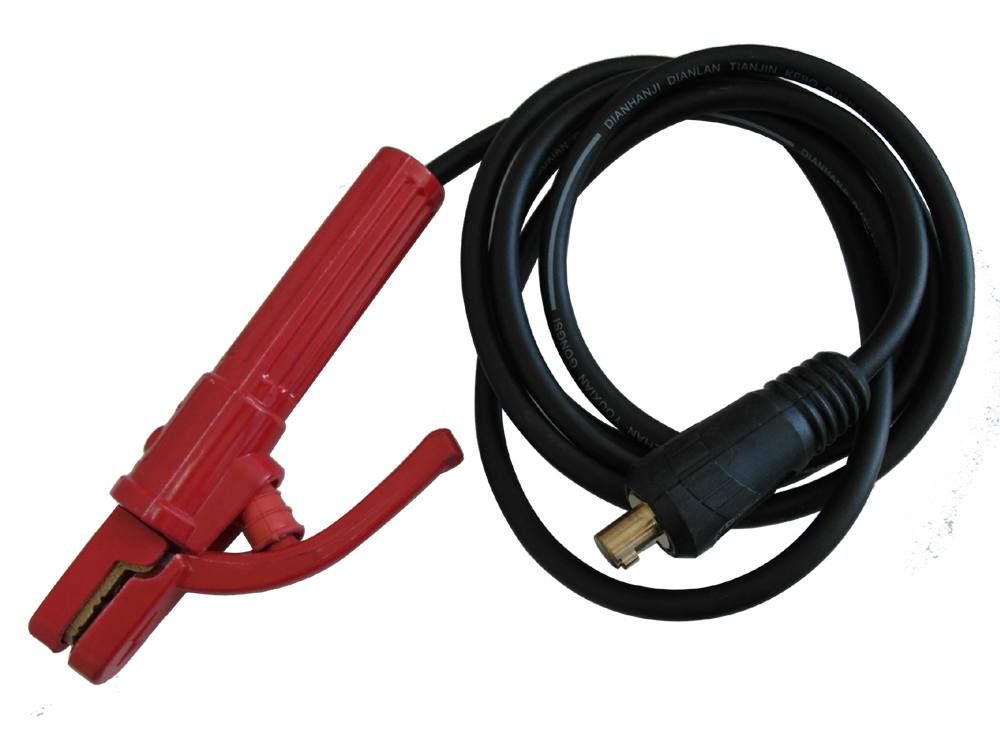

300A Electrode Holder 3m

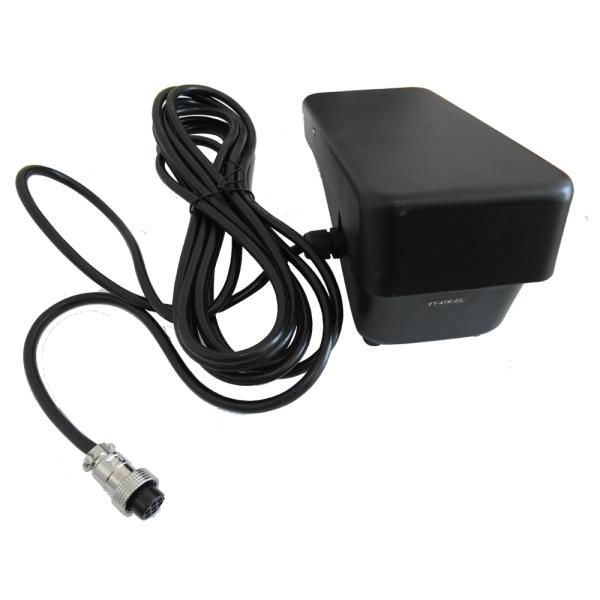

Foot peda
Main Parameters:
MODEL
Digi-TIG250ACDC PULSE LCD
INPUT
Voltage
1xAC220V 50/60Hz
















TIG
No-load Voltage
70V
welding/start/end current Adjusting Range
DC: 2~250A
AC: 3~250A
Rated Output Current
250A
up slope time adjusting Range
0-30s
down slope time adjusting Range
0-60s


pulse freq.
0.1~999.9Hz@DC
0.1~500Hz@SQUARE
0.1~10Hz@AC SINE-T, AC TRIANGULAR，
AC SINE WAVE，TRAPEZIUM WAVE
base/pulse ratio(P. time)
5~95%
BASE AMPS(base/pulse amps,P.AMP)
3~95%
AC freq.
20~400Hz
AC Balance
5~70%
AC WAVE
SQUARE/SINE-T/ TRIANGULAR/SINE/TRAPEZIUM

AMPLITUDE
EN-
3-250A
EP+
10~125%
Rated Duty Cycle
60%
TIG Arc starting mode
high frequency/LIFT/LIVE arc striking

Advanced
PULSE
TIG
AC peak Current
20~250A
DC AMPS
3~100%
Pulse time on(P. time)
5%~95%
pulse (AC to DC-) Freq.
0.1~10Hz







MMA
No-load Voltage
70V
current Adjusting Range
10~200A
Rated Output Current
200A
AC freq.
20~400Hz
AC Balance
5~70%
Arc force
0~100%
hot start current
0~100%
hot start time
0~2S
Rated Duty Cycle
60%
Pre gas Flow Time
0~30s
Post gas Flow Time
0~60s
Spot time
0.1~10S
Stitch time
0~5S
Efficiency
≥80%
Protection Class of enclosure
IP21S
Related Products:

Company Introduction

230V LCD Tig Ac Dc Mma Welding Machine Aluminum Welder
230V LCD Tig Ac Dc Mma Welding Machine Aluminum Welder
230V LCD Tig Ac Dc Mma Welding Machine Aluminum Welder
230V LCD Tig Ac Dc Mma Welding Machine Aluminum Welder

FAQ.

Q1. Why Choose us?
- We have nearly 10 years experience in welding industry and export to all over the world. - We have experienced R&D team. We can adjust the parameter and panels design as per your request.
- Most of key parts are adopted top brand to ensure the quality. Such as the IGBT of Infineon (Simens). - Each machine will be inspected before shipping. - One year warranty, life-long technical support and design service.
Q2. Could you get a customized sample?
Yes, we can adjust some configuration and parameters as your request.
It also includes OEM service.
Q3. How is your quality control?
We use the world-class quality inspection to make every machine strong, powerful and reliable. We inspect with the world class quality testing to make every single machine strong, powerful and reliable.
Inpection is full range, covered from welding power source to wire feeders, welding torches and up to welding consumables and work safety. Whether you want to weld with 2T/4T, GAS/NO GAS, our components, which have been perfectly tuned to your requirements, acting as excellent quality and the best possible welding results.
Q4. What voltage could you provide?
110V/220v, 220/380V, 230V etc.
We can make it as per your country voltage.
Q5. Can you send me the video to show how the machine works?
At present, some machines have video. We will try to make video of featured machine in future.
Q6. Do you have engineer who can guide me to install system?
Yes, we have a professional team. They can teach you how to work with it.
Q7. How long is the lead time for welding machine?
If no stockes, usually it takes 30-35 days after confirmation of order.
