400V IGBT Digital Inverter Tig Welding Tig Ac Dc Aluminium Welders
400V IGBT Digital Inverter Tig Welding Tig Ac Dc Aluminium Welders
400V IGBT Digital Inverter Tig Welding Tig Ac Dc Aluminium Welders
400V IGBT Digital Inverter Tig Welding Tig Ac Dc Aluminium Welders
400V IGBT Digital Inverter Tig Welding Tig Ac Dc Aluminium Welders
400V IGBT Digital Inverter Tig Welding Tig Ac Dc Aluminium Welders
400V IGBT Digital Inverter Tig Welding Tig Ac Dc Aluminium Welders
400V IGBT Digital Inverter Tig Welding Tig Ac Dc Aluminium Welders
400V IGBT Digital Inverter Tig Welding Tig Ac Dc Aluminium Welders
400V IGBT Digital Inverter Tig Welding Tig Ac Dc Aluminium Welders
400V IGBT Digital Inverter Tig Welding Tig Ac Dc Aluminium Welders
400V IGBT Digital Inverter Tig Welding Tig Ac Dc Aluminium Welders
400V IGBT Digital Inverter Tig Welding Tig Ac Dc Aluminium Welders
400V IGBT Digital Inverter Tig Welding Tig Ac Dc Aluminium Welders
Specifications
material / metal processed :
Aluminium alloy, Stainless Steel, Carbon Steel
rated input voltage :
400 V
max. load power capacity :
10KVA
output polarity :
AC/DC TIG
rated duty cycle @40°c (tig) :
35%
rated output voltage :
400 V
Welding Current/Voltage Range :
3-400A
condition :
New
Place of Origin :
Beijing, China
Brand Name :
ALAND
pulse frequency :
50/60HZ
motor type :
AC DC Motor
dimensions :
560*240*460MM
usage :
Various metal welding
warranty :
1 Year
weight (kg) :
30
feature :
Integrated Display
Plug Type :
US PLUG, european plug, australian plug, british plug
Rated Output Current :
400A
Welding Thickness :
8MM
Model :
DIGI-TIG325ACDCPULS
Power Supply Voltage :
3*400V 50/60Hz
Rate lnput Capacity (KVA) :
10
Rate Input Current(A) :
14.5
No Load Voltage :
80
Output current Range :
TIG:3(AC:5A)-400A MMA:10-315A
Duty Cycle :
35%
Weight :
30kg
L*WH(mm) :
560*240*460
Description
400V IGBT Digital Inverter Tig Welding Tig Ac Dc Aluminium Welders
400V IGBT Digital Inverter Tig Welding Tig Ac Dc Aluminium Welders
DESCRIPTION
IGBT Digital inverter ACDC,Pules TIG and MMA
Lift and HF(or HV) for TIG
32 bits MCU inside
Color LCD screen display
Foot pedal and finger amps remote control
2T/4T function
TIG Cool weld
Pulse frequancy up to 999Hz.
TIG Spot weld
TIG fast tack
Mix TIG weld
AC frequancy can up to 400Hz
AC amps can down to 3A.and DC amps can down to 2A.
Easy get high quality weld seam
PFC(Option)
Syngeric(Auto) setting. Tungsten selection En/Ep selection
Model
DIGI-TIG235ACDCPULS
DIGI-TIG325ACDCPULS
Power Supply Voltage
1*230V 50160Hz
3*400V 50/60Hz
Rate lnput Capacity (KVA)
6.2
10
Rate Input Current(A)
27
14.5
No Load Voltage
80
80
Output current Range
TIG:2(AC:3A)-235A
MMA:10-200A
TIG:3(AC:5A)-400A
MMA:10-315A
Duty Cycle
60%
35%
Weight
26kg
30kg
L*W*H(mm)
560*240*460
560*240*460
400V IGBT Digital Inverter Tig Welding Tig Ac Dc Aluminium Welders
400V IGBT Digital Inverter Tig Welding Tig Ac Dc Aluminium Welders
400V IGBT Digital Inverter Tig Welding Tig Ac Dc Aluminium Welders
400V IGBT Digital Inverter Tig Welding Tig Ac Dc Aluminium Welders

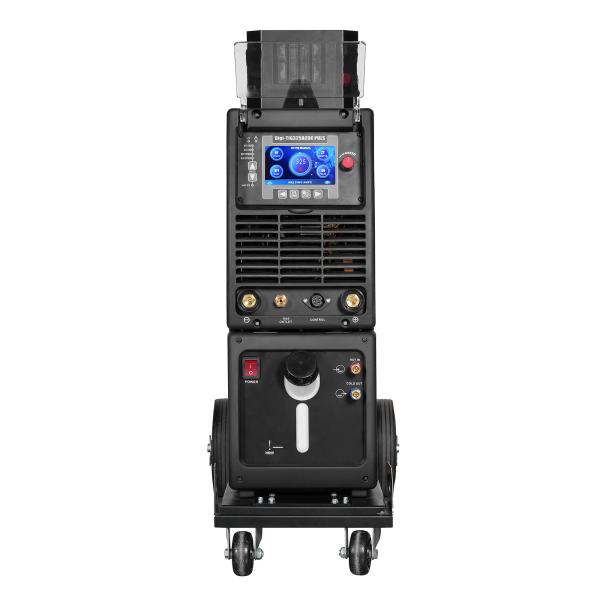

The welding machine features an LCD screen with button controls for easy and precise parameter adjustments. This modern interface ensures accuracy, reduces errors, and supports advanced functions like Synergic settings, enhancing efficiency and welding quality.
400V IGBT Digital Inverter Tig Welding Tig Ac Dc Aluminium Welders

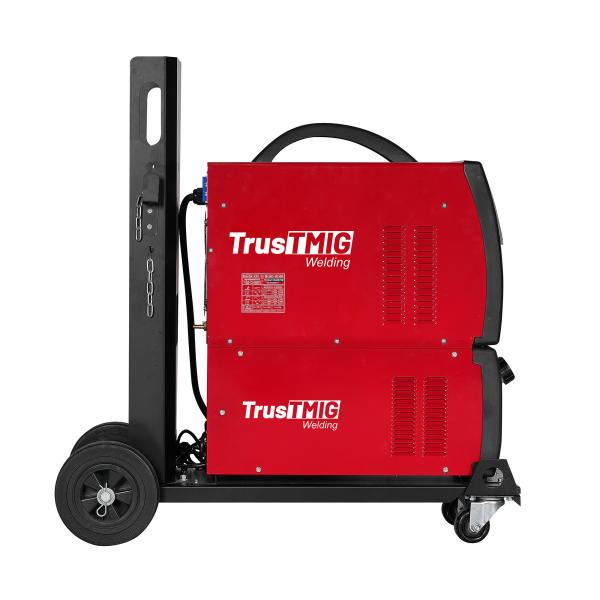

The welding machine is equipped with a built-in handle, making it more portable and convenient to carry. This design ensures ease
of transport, allowing users to work efficiently across different locations.
400V IGBT Digital Inverter Tig Welding Tig Ac Dc Aluminium Welders

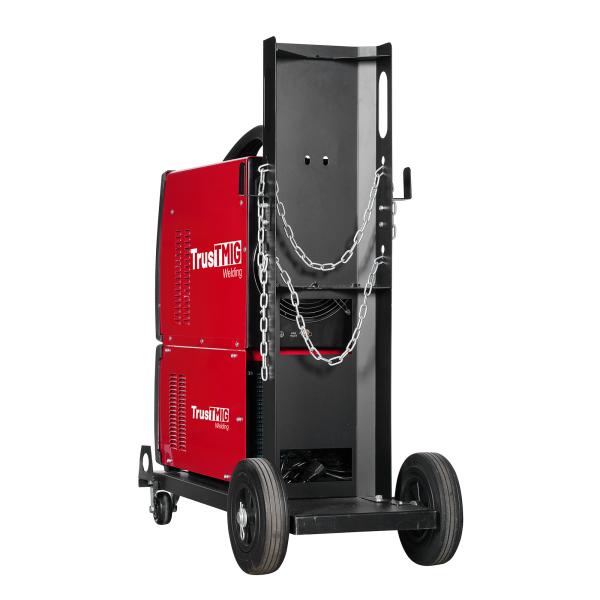

The integrated welding cart combines a water tank, welding unit, and gas cylinder, creating a compact all-in-one design. This setup simplifies the welding process, enhances mobility, and ensures a more efficient and organized workspace.

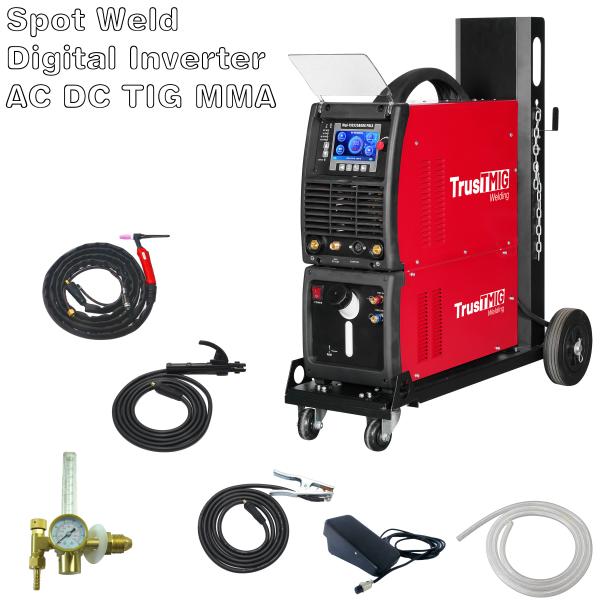

ACCESSORIES

Tig torch 4m
Earth clamp cable with 300A/500A earth clamp
Welding cable with 300AV500A electrode holder
Gas hose 2m
Serial Number
Name
Specification
Quantity
1
Tig torch
4m
1
2
Earth clamp
3m
1
3
Electrode Holder
3m
1
4
Gas hose
2m
1
400V IGBT Digital Inverter Tig Welding Tig Ac Dc Aluminium Welders
400V IGBT Digital Inverter Tig Welding Tig Ac Dc Aluminium Welders
400V IGBT Digital Inverter Tig Welding Tig Ac Dc Aluminium Welders
400V IGBT Digital Inverter Tig Welding Tig Ac Dc Aluminium Welders

OPTIONAL ACCESSORIES

Amps control tig torch
foot pedal
Regulator
Water cooler : W200
Trolley :MC205
Serial Number
Name
Specification
Quantity
1
Tig torch
4m
1
2
Foot pedal
1
3
Regulator
1
4
Water cooler
1
5
Trolley
1
400V IGBT Digital Inverter Tig Welding Tig Ac Dc Aluminium Welders
400V IGBT Digital Inverter Tig Welding Tig Ac Dc Aluminium Welders
400V IGBT Digital Inverter Tig Welding Tig Ac Dc Aluminium Welders
400V IGBT Digital Inverter Tig Welding Tig Ac Dc Aluminium Welders
400V IGBT Digital Inverter Tig Welding Tig Ac Dc Aluminium Welders
400V IGBT Digital Inverter Tig Welding Tig Ac Dc Aluminium Welders
400V IGBT Digital Inverter Tig Welding Tig Ac Dc Aluminium Welders
400V IGBT Digital Inverter Tig Welding Tig Ac Dc Aluminium Welders
Beijing Aland Welding Co., Ltd. is a professional manufacturer and exporter of high quality welding products and welding
solutions.We are proud to provide One Stop Solution for All Your Welding Needs.
We have professional factories of welding equipment, high efficiency production line and high-precision testing equipment, talented workers, and strict quality management
Quality First and Enjoy Work is our company principle.
We recognized that the pursuit of better quality and continuous Innovation is vital to improve competitiveness and obtain business success. Most of our products have gotten CE, GS and other suitable certificate. We always provide our customers -Quality
Products, Competitive Price, On-time Delivery and Excellent Services.
Our products have been exported to market of Europe, North/South America, Southeast Asia
Oceania, Africa. We are Aland Welding, your reliable parner for Quality Welding! We are willing to grow up and develop with you together.
