Digital Control Pulse Tig Ac Dc Aluminium Welders Tig Welding Machine 230V Tig Welder
Digital Control Pulse Tig Ac Dc Aluminium Welders Tig Welding Machine 230V Tig Welder
Digital Control Pulse Tig Ac Dc Aluminium Welders Tig Welding Machine 230V Tig Welder
Digital Control Pulse Tig Ac Dc Aluminium Welders Tig Welding Machine 230V Tig Welder
Digital Control Pulse Tig Ac Dc Aluminium Welders Tig Welding Machine 230V Tig Welder
Digital Control Pulse Tig Ac Dc Aluminium Welders Tig Welding Machine 230V Tig Welder
Digital Control Pulse Tig Ac Dc Aluminium Welders Tig Welding Machine 230V Tig Welder
Digital Control Pulse Tig Ac Dc Aluminium Welders Tig Welding Machine 230V Tig Welder
Digital Control Pulse Tig Ac Dc Aluminium Welders Tig Welding Machine 230V Tig Welder
Digital Control Pulse Tig Ac Dc Aluminium Welders Tig Welding Machine 230V Tig Welder
Digital Control Pulse Tig Ac Dc Aluminium Welders Tig Welding Machine 230V Tig Welder
Digital Control Pulse Tig Ac Dc Aluminium Welders Tig Welding Machine 230V Tig Welder
Digital Control Pulse Tig Ac Dc Aluminium Welders Tig Welding Machine 230V Tig Welder
Digital Control Pulse Tig Ac Dc Aluminium Welders Tig Welding Machine 230V Tig Welder
Specifications
material / metal processed :
Aluminium alloy, Carbon Steel, Other, Stainless Steel
rated input voltage :
230V
max. load power capacity :
7.4KVA
output polarity :
AC/DC TIG
rated duty cycle @40°c (tig) :
35%
rated output voltage :
230V
Welding Current/Voltage Range :
5-200A
condition :
New
Place of Origin :
Beijing, China
Brand Name :
ALAND
pulse frequency :
50/60HZ
motor type :
AC Motor
dimensions :
435*185*325 mm
usage :
TIG MMA Welding
warranty :
1 Year
weight (kg) :
18
feature :
INVERTER
Plug Type :
US PLUG, european plug, australian plug, british plug
Rated Output Current :
200A
Welding Thickness :
8MM
Model :
SUPERTG200DI
Power Supply Voltage :
1*230V 50/60Hz
Rate Input Capacity (KVA) :
7.4
Rate Input Current(A) :
32.1
No Load Voltage :
65
Output current Range :
TIG:5-200A,MMA:20- 160A
Duty Cycle :
35%
Weight :
18kg
L*W*H(mm) :
435*185*325
Description
Digital Control Pulse Tig Ac Dc Aluminium Welders Tig Welding Machine 230V Tig Welder

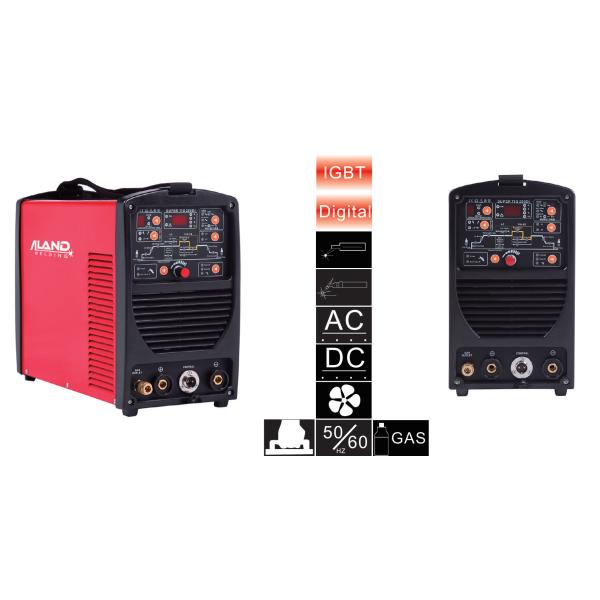

1. Introduction to welding machine
Digital Control Pulse Tig Ac Dc Aluminium Welders Tig Welding Machine 230V Tig Welder
This compact digital IGBT inverter supports DC MMA and pulse ACDC TIG welding with Lift and HF start modes. Features include arc force adjustment, anti-stick, 2T/4T operation, four AC waveform options, and 10 memory settings. Its MINI design and quick gas connector ensure portability and efficiency for versatile applications.

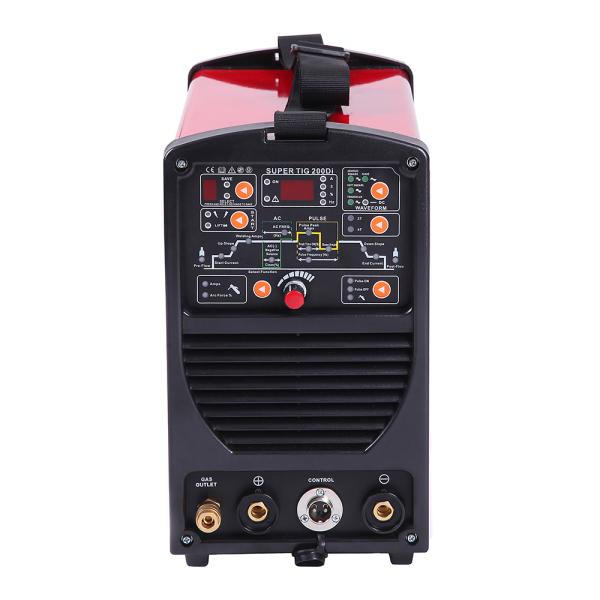

2.Panel display
Digital Control Pulse Tig Ac Dc Aluminium Welders Tig Welding Machine 230V Tig Welder
Digital Control Pulse Tig Ac Dc Aluminium Welders Tig Welding Machine 230V Tig Welder
3.Attribute table
Model
SUPERTIG200DI
Power Supply Voltage
1*230V 50/60Hz
Rate Input Capacity (KVA)
7.4
Rate Input Current(A)
32.1
No Load Voltage
65
Output current Range
TIG:5-200A，MMA:20- 160A
Duty Cycle
35%
Weight
18kg
L*W*H(mm)
435*185*325
4. Analysis of product buying points
Digital Control Pulse Tig Ac Dc Aluminium Welders Tig Welding Machine 230V Tig Welder
DESCRIPTION
*Digital Control IGBT inverter DC *MMA,PuIse ACDC TIG
*Lift and HF for TIG
*Hot arc start and arc force,Anti-stick for MMA
*32 bits MCU inside
*Foot pedal
*2T/4T function
*Advanced square,soft square,triangular,sine four AC wave for selection.
*MINI Stlye design
*Quickly gas connector
*10 Memories selection

Carbon Steel Welding

Our welding machines ensure stable arc performance and deep penetration for carbon steel, delivering strong and reliable welds suitable for structural and fabrication applications.

Stainless Steel Welding

For stainless steel, our equipment provides clean, precise welds with excellent corrosion resistance, ideal for food-grade, medical, and architectural projects.

Aluminum Welding

Welding aluminum is made easy with advanced AC and pulse control, enabling smooth, spatter-free welds with excellent appearance and minimal distortion.
Digital Control Pulse Tig Ac Dc Aluminium Welders Tig Welding Machine 230V Tig Welder
Digital Control Pulse Tig Ac Dc Aluminium Welders Tig Welding Machine 230V Tig Welder
Digital Control Pulse Tig Ac Dc Aluminium Welders Tig Welding Machine 230V Tig Welder

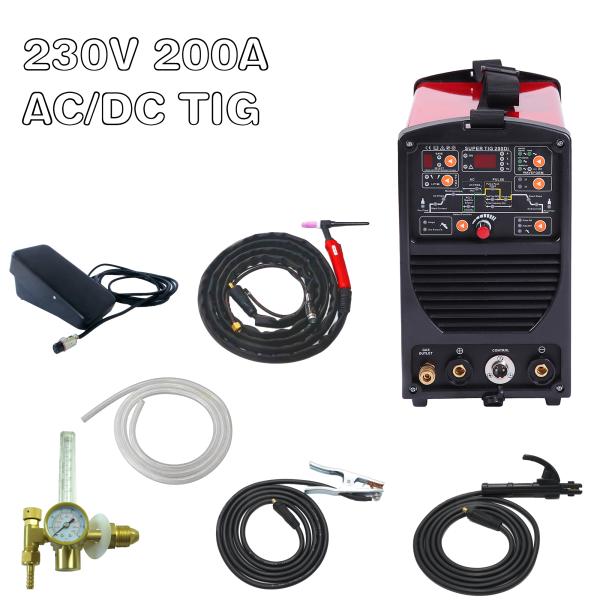

5. Product configuration

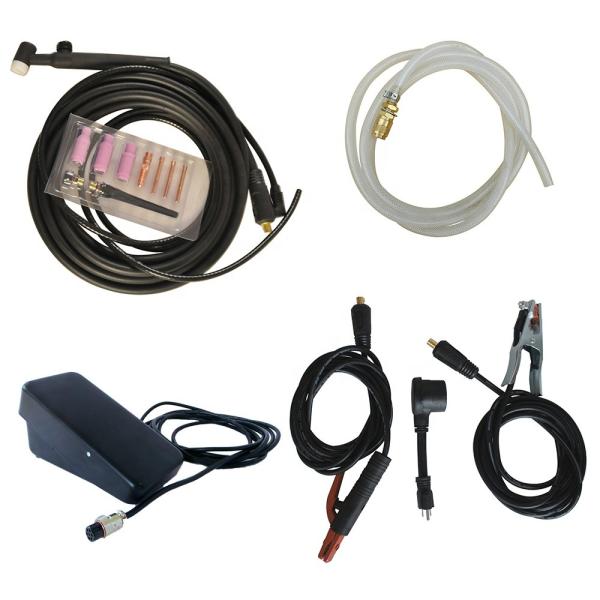

ACCESSORIES

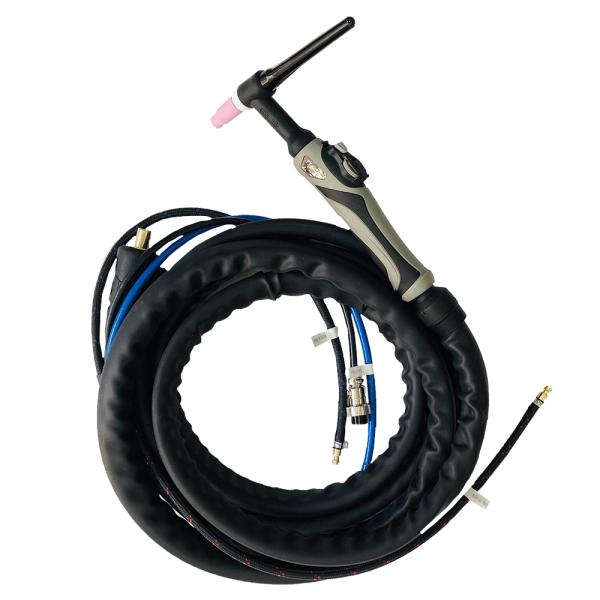

*Tig torch 4m
*Earth clamp cablewith 300A earth clamp
*Welding cable with300A electrode holder
*Gas hose 2m
Serial Number
Name
Specification
Quantity
1
Tig Torch
4m
1
2
Electrode Holder
1m
1
3
Earth Clamp
1m
1
4
Gas Hose
2m
1
Digital Control Pulse Tig Ac Dc Aluminium Welders Tig Welding Machine 230V Tig Welder
Digital Control Pulse Tig Ac Dc Aluminium Welders Tig Welding Machine 230V Tig Welder
Digital Control Pulse Tig Ac Dc Aluminium Welders Tig Welding Machine 230V Tig Welder
Digital Control Pulse Tig Ac Dc Aluminium Welders Tig Welding Machine 230V Tig Welder

OPTIONAL ACCESSORIES

*Amps control tig torch
*foot pedal
*Regulator
*110/220V
Serial Number
Name
Specification
Quantity
1
Tig Torch
4m
1
2
Foot Pedal
1
3
Regulator
1
Digital Control Pulse Tig Ac Dc Aluminium Welders Tig Welding Machine 230V Tig Welder
Digital Control Pulse Tig Ac Dc Aluminium Welders Tig Welding Machine 230V Tig Welder
Digital Control Pulse Tig Ac Dc Aluminium Welders Tig Welding Machine 230V Tig Welder
Digital Control Pulse Tig Ac Dc Aluminium Welders Tig Welding Machine 230V Tig Welder
Digital Control Pulse Tig Ac Dc Aluminium Welders Tig Welding Machine 230V Tig Welder
Digital Control Pulse Tig Ac Dc Aluminium Welders Tig Welding Machine 230V Tig Welder
Beijing Aland Welding Co., Ltd. is a professional manufacturer and exporter of high quality welding products and welding
solutions.We are proud to provide One Stop Solution for All Your Welding Needs.
We have professional factories of welding equipment, high efficiency production line and high-precision testing equipment, talented workers, and strict quality management
Quality First and Enjoy Work is our company principle.
We recognized that the pursuit of better quality and continuous Innovation is vital to improve competitiveness and obtain business success. Most of our products have gotten CE, GS and other suitable certificate. We always provide our customers -Quality
Products, Competitive Price, On-time Delivery and Excellent Services.
Our products have been exported to market of Europe, North/South America, Southeast Asia
Oceania, Africa. We are Aland Welding, your reliable parner for Quality Welding! We are willing to grow up and develop with you together.
