Specifications
material / metal processed :
Aluminium alloy, Stainless Steel, Carbon Steel
rated input voltage :
230 V
max. load power capacity :
6.6KVA
output polarity :
AC/DC TIG
rated duty cycle @40°c (tig) :
35%
rated output voltage :
230 V
Welding Current/Voltage Range :
5-185A
condition :
New
Place of Origin :
Beijing, China
Brand Name :
ALAND
pulse frequency :
50/60HZ
motor type :
AC DC Motor
dimensions :
530*185*325mm
usage :
Various metal welding machines
warranty :
1 Year
weight (kg) :
18.5
feature :
INVERTER
Plug Type :
US PLUG, european plug, australian plug, british plug
Rated Output Current :
185A
Welding Thickness :
8MM
Model :
MicroTig185DA
Power Supply Voltage :
1*230V 50/60Hz
Rate Input Capacity (KVA) :
6.6
Rate Input Current(A) :
29
No Load Voltage :
70
Qutput current Range :
TIG:5-185A,MMA:5-150A
Duty Cycle :
35%
Weight :
18.5KG
L*W*H(mm) :
530*185*325
Description
230V TIG AC DC Aluminium Welding 185A TIG Welders DC Mma Welder
1. Introduction to welding machine
230V TIG AC DC Aluminium Welding 185A TIG Welders DC Mma Welder
DESCRIPTION
IGBT inverter DC MMA, ACDC TIG
Lift and HF for TIG
32 bits MCU inside
Analog operation panel design
7Pins connector for Foot pedal or finger AMPS adjustment
2T/4T function
Advanced square wave for AC TIG
1Hz and 10Hz easy pulse selection
Current down slope and gas post fow time adjustment
Quickly gas outlet

Carbon Steel Welding

Our welding machines ensure stable arc performance and deep penetration for carbon steel, delivering strong and reliable welds suitable for structural and fabrication applications.

Stainless Steel Welding

For stainless steel, our equipment provides clean, precise welds with excellent corrosion resistance, ideal for food-grade, medical, and architectural projects.

Aluminum Welding

Welding aluminum is made easy with advanced AC and pulse control, enabling smooth, spatter-free welds with excellent appearance and minimal distortion.
230V TIG AC DC Aluminium Welding 185A TIG Welders DC Mma Welder
230V TIG AC DC Aluminium Welding 185A TIG Welders DC Mma Welder
230V TIG AC DC Aluminium Welding 185A TIG Welders DC Mma Welder
2. Attribute table
Model
MicroTig185DA
Power Supply Voltage
1*230V 50/60Hz
Rate Input Capacity (KVA)
6.6
Rate Input Current(A)
29
No Load Voltage
70
Output current Range
TIG:5-185A,
MMA:5-150A
Duty Cycle
35%
Weight
8.5KG
Weight
530*185*325

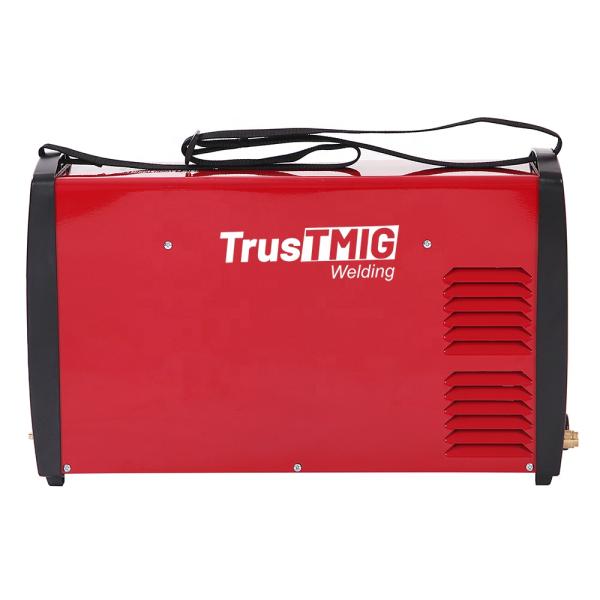

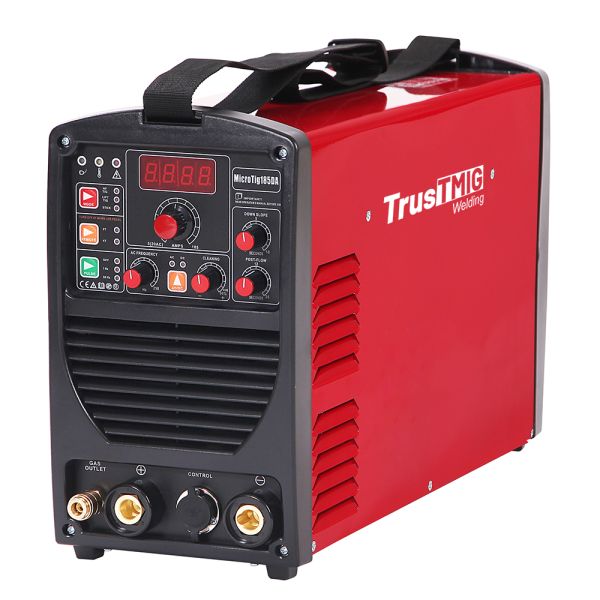

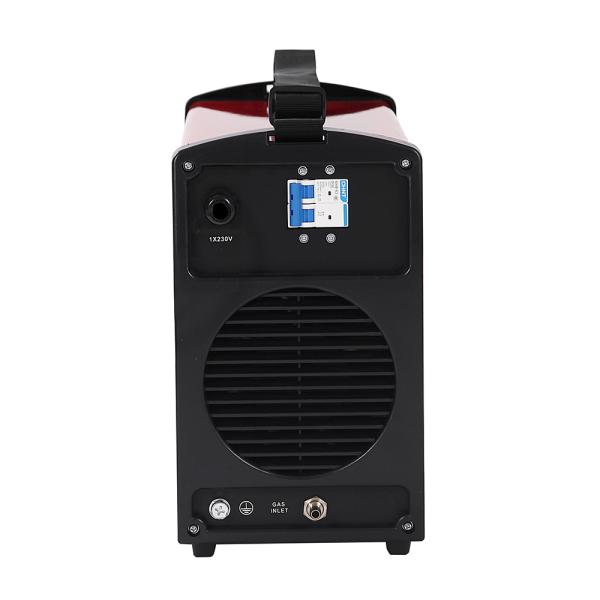

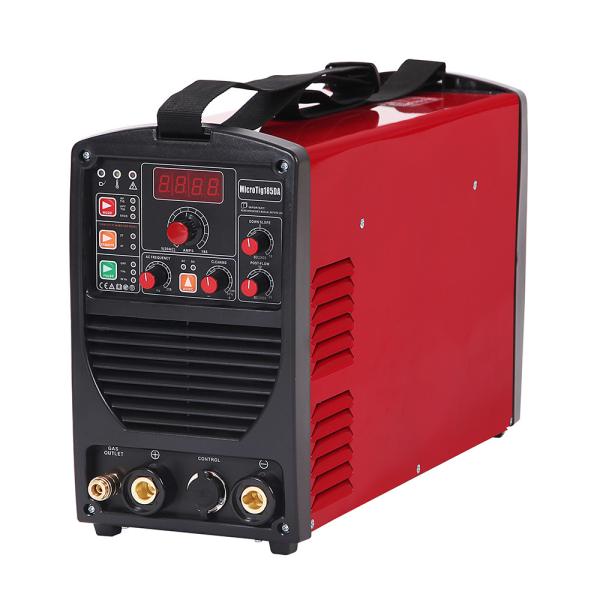

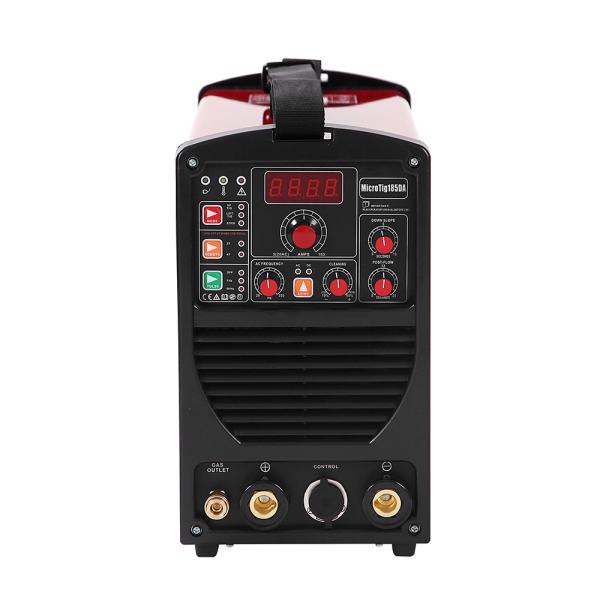

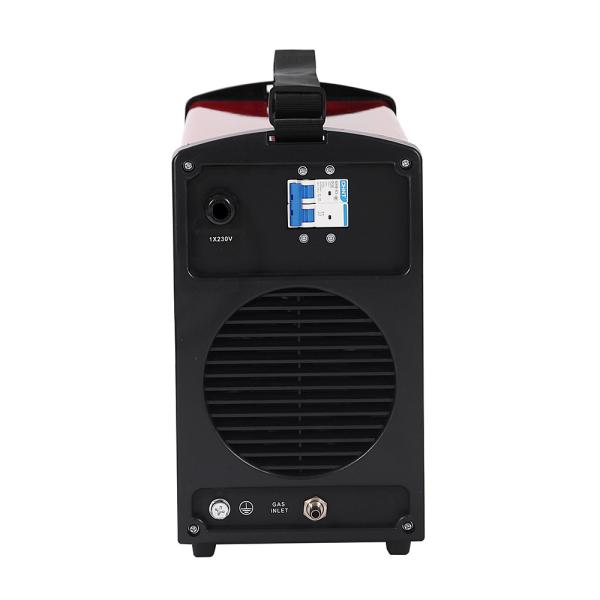

3.Product display
230V TIG AC DC Aluminium Welding 185A TIG Welders DC Mma Welder
230V TIG AC DC Aluminium Welding 185A TIG Welders DC Mma Welder
230V TIG AC DC Aluminium Welding 185A TIG Welders DC Mma Welder
230V TIG AC DC Aluminium Welding 185A TIG Welders DC Mma Welder

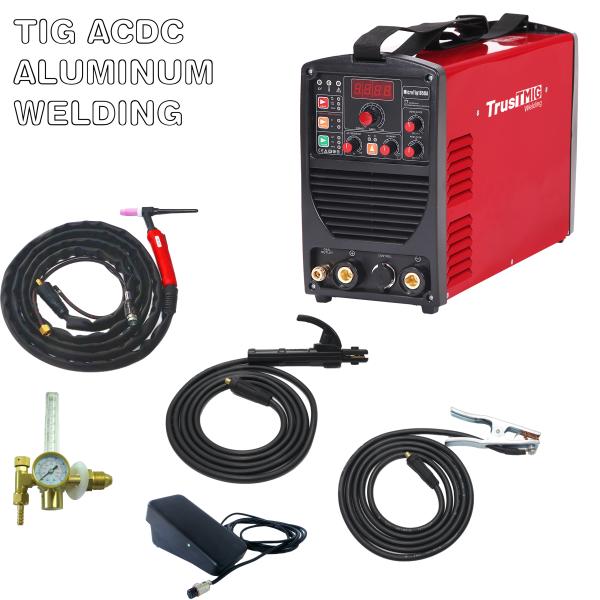

4.Welding machine accessories
ACCESSORIES
Serial Number
Name
Specification
Quantity
1
Tig torch
4M
1
2
Earth clamp cable
300A
1
230V TIG AC DC Aluminium Welding 185A TIG Welders DC Mma Welder
230V TIG AC DC Aluminium Welding 185A TIG Welders DC Mma Welder
OPTIONAL ACCESSORIES
Serial Number
Name
Specification
Specification
1
Tig torch
3M
1
2
Foot pedal
1
3
Regulator
1
4
welding clamp
3M
1
230V TIG AC DC Aluminium Welding 185A TIG Welders DC Mma Welder
230V TIG AC DC Aluminium Welding 185A TIG Welders DC Mma Welder
230V TIG AC DC Aluminium Welding 185A TIG Welders DC Mma Welder
230V TIG AC DC Aluminium Welding 185A TIG Welders DC Mma Welder
230V TIG AC DC Aluminium Welding 185A TIG Welders DC Mma Welder
230V TIG AC DC Aluminium Welding 185A TIG Welders DC Mma Welder
230V TIG AC DC Aluminium Welding 185A TIG Welders DC Mma Welder
Beijing Aland Welding Co., Ltd. is a professional manufacturer and exporter of high quality welding products and welding
solutions.We are proud to provide One Stop Solution for All Your Welding Needs.
We have professional factories of welding equipment, high efficiency production line and high-precision testing equipment, talented workers, and strict quality management
Quality First and Enjoy Work is our company principle.
We recognized that the pursuit of better quality and continuous Innovation is vital to improve competitiveness and obtain business success. Most of our products have gotten CE, GS and other suitable certificate. We always provide our customers -Quality
Products, Competitive Price, On-time Delivery and Excellent Services.
Our products have been exported to market of Europe, North/South America, Southeast Asia
Oceania, Africa. We are Aland Welding, your reliable parner for Quality Welding! We are willing to grow up and develop with you together.
