Single Port DC Input 12V To 48V Fiber PoE Injector 1000Mbps
Single Port DC Input 12V To 48V Fiber PoE Injector 1000Mbps
Specifications
Brand Name :
PROCET
Model Number :
PT-PSE105GBPS-E
Certification :
CE
Place of Origin :
Dongguan China
MOQ :
1PCS
Payment Terms :
T/T, L/C
Supply Ability :
50PCS
Delivery Time :
Sample Delivery Time:Within 24H
Packaging Details :
Export Carton ; Pallet size:110 x 110cm
Name :
Single-port Industrial DC Input 12-48V Fiber PoE Injector 1000Mbps for 95W PoE PDs
Power Indicator :
Green
PoE Load Indicator :
Green
SFP fiber indicator :
Green
PoE data indicator :
Yellow
Input :
12-48Vdc
Operating Temperature :
-40℃ to 65℃
Storage Temperature :
-40℃ to 85℃
Mounting :
DIN-rail
Size :
144.5mm X 95mm X 35.4mm
Warranty :
2 years
Weigh :
485g
Description

Single-port Industrial DC Input 12-48V Fiber PoE Injector 1000Mbps for 95W PoE PDs

Product features:

PT-PSE105GBPS-E is a single-port, industrial-scale,boost PoE injector with fiber port. It provides 55Vdc, 1.75A power for remote PDs over full 4 pairs output with 6KV (10/700us) surge protection. It supports 1000Mbps of data speed. It works for 95W PoE PDs, such as wireless access points,network cameras, VoIp phones and other high power Ethernet terminals. It is also compatible and safe to use with any IEEE802.3af/at, PoH compliant terminals.It works as a switch, data is interoperable between PoE port and SFP port.

Specification :

Product Name Single-port Industrial DC Input 12-48V Fiber PoE Injector 1000Mbps for 95W PoE PDs
Product Model PT-PSE105GBPS-E
EMI FCC CFR47 Part 15, EN55032, EN55035
EMS
IEC61000-4-2(ESD) ± 6kV(contact), ±8kV(air)
IEC61000-4-3(RS) 10V/m(80MHz~2GHz)
IEC61000-4-4(EFT) Power Port: ±2kV; Data Port:±1kV
IEC61000-4-5(Surge) Power Port:±1kV/DM, ±2kV/CM
IEC61000-4-6(CS) 10V(150kHz~80MHz)
PoE Surge Protection
Protected line: 1,2,3,4,5,6,7,8
Common mode surge protection(10/700us): 6KV
Differential mode surge protection (10/700us): 1.5KV
Working Environment
Operating Temperature: -40℃ to 65℃
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -40℃ to 85℃
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 5000meters
Standard
IEEE802.3ab 1000Base-T Gigabit Ethernet
Full compliant with IEEE802.3af/at, PoH
RoHS Compliance
WEEE Compliance
Case Metal

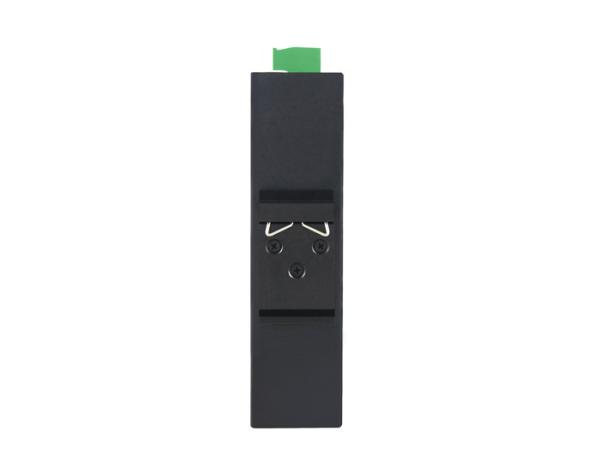

Mounting DIN-rail

Introduction:

PT-PSE105GBPS-E is designed for indoor use. It works with input voltage of 12-48Vdc and operates under -40℃ to 65℃. It has detection chip inside,which will detect and classify PD before powering it. It will not apply power until a standard-compliant PD is detected. The effective distance
is 100 meters over Cat5e/Cat6 cables.This model equiped standard DIN rail mounting bracket,which can easily jam into the guide rail.

Schematic Diagram:

Single Port DC Input 12V To 48V Fiber PoE Injector 1000Mbps

Company Introduction:
PROCET(Creative Lianjie Network Technology Co.,Ltd) estblished in 2000. PROCET mainly R&D on the PoE (Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE, -40℃ to +65℃ PoE, PoE splitter, PoE extender. We registered PROCET Technology Co., Ltd in HONGKONG in 2019.

Single Port DC Input 12V To 48V Fiber PoE Injector 1000Mbps

Single Port DC Input 12V To 48V Fiber PoE Injector 1000Mbps

Certification:

Single Port DC Input 12V To 48V Fiber PoE Injector 1000Mbps

Why Choose Us:

Operating since 2000
PROCET(Creative Lianjie Network Technology Co.,Ltd) estblished in 2000. PROCET mainly R&D on the PoE (Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE, -40℃ to +65℃ PoE, PoE splitter, PoE extender. We registered PROCET Technology Co., Ltd in HONGKONG in 2019.


R&D Engineer Team
PROCET's engineers used PoE on 2002, and then mainly focus on PoE since 2003 the IEEE802.3AF standard comes out. We got our first paten on single-port PoE on the end of 2003.
Our PoE engineers have experience more than 15 years by now. They started to R&D the surge on PoE using, and now they have great contribution on our outdoor PoE series.


Production quality assurance
We keeped our stable production workers, four QC with at least 4 years experience to make sure the production.
We have aging testing, high-low temperature testing, surge testing, drop testing, swing testing before delivery.
We have CCC, CE,FCC,UL,TUV certification for our PoE.


OEM&ODM serives
We do OEM serives. Our MD engineer can help to design the LOGO, the label, the package, even the Housing.
We do ODM serives too, special on the high power PoE solutions, the Boost-Buck voltage PoE, AC/DC surge PoE.

Ordering:

Order Info.: PT-PSE105GBPS-E 55Vdc/1.75A/1000Mbps/(4,5+,7,8-) & 3/6(+),1/2(-) /Surge Protection/PoH

Packing Size: PT-PSE105GBPS-E

Ground lug Wire: 16AWG
Manual x 1

FAQ:

(1) Lead Time?

Order samples, we have in stock.
Bigger orders, 2-4 weeks after payment.

(2) How to buy?

Click the BLUE BUTTON "Inquire now" (in the middle of page), input your order info and send to us.
Your sales consultant will contact you with 24 hr.

(3) OEM/ODM Services?

YES. Tell us your demand, get the products you want.
For distributors, we can put your labels on it too.

Shipping:
