IEEE802.3af/at,PoE++ 60W 55V output Single port PoE injector Switch For Highway

Main Features:

1. Procet Industrial Fiber BT PoE injector
2. Input 100-240Vac
3. Output 55Vdc 1100mA
4. Surge protection 4KV
5. Working temperature at -40℃ to 65℃
6. Gigabit data rates

Product Features:

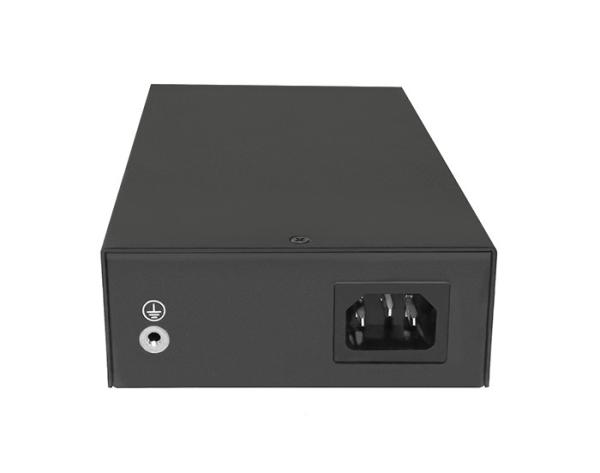

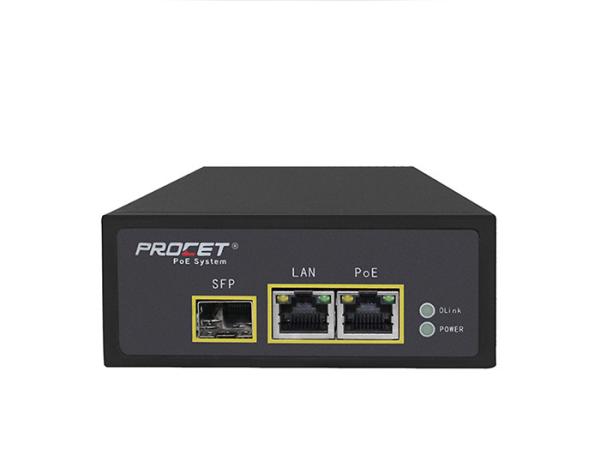

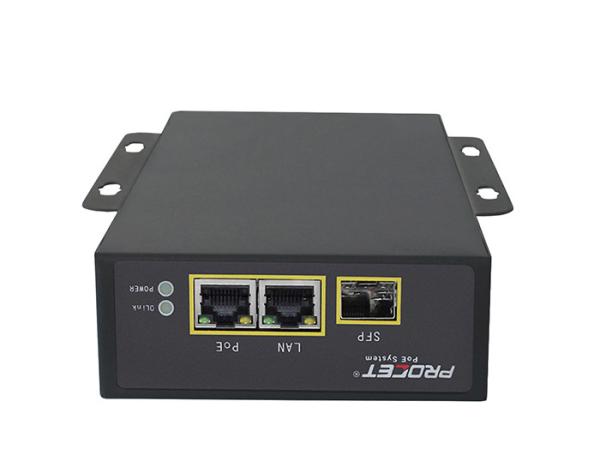

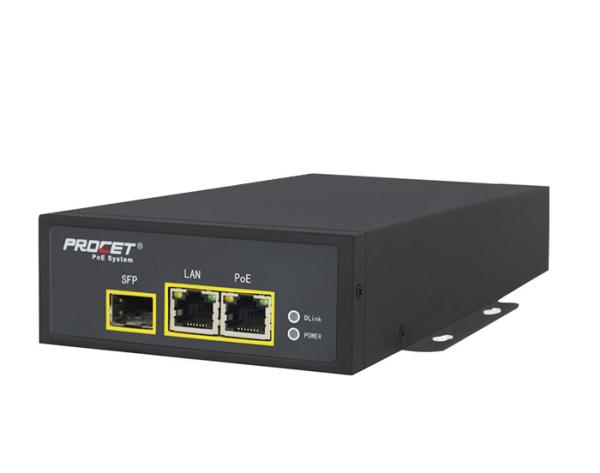

1. PT-PSE107GRO-S is an indoor rated fiber PoE midspan converter specially designed for complex industrial backhaul and networking applications, special scenarios, like highway side, exurb, etc.. Enclosed in an IP20 high-impact metal case but can work outdoor by covered with waterproof case.

2. After negotiating IEEE802.3bt standard PoE, the single PoE output port delivers 55Vdc, 1.1A up to 60W power with 4KV surge protection for remote PDs over 4 Pair at 10/100/1000Mbps data rates. It works with a wide input voltage of 100-240VAC, 50 or 60 Hz and operates under -40℃ to +65℃. It fully complies with IEEE802.3bt and remains compatible with any IEEE802.3af/at compliant devices, such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks.

3. For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables.

Introduction:

Procet Industrial Fiber BT PoE injector, Input 100-240Vac, Output 55Vdc 1100mA, Surge protection 4KV, Working temperature at -40℃ to 65℃, Gigabit data rates

Schematic Diagram:

Parameter:

Company Introduction:

Creative Lianjie Co., Ltd established in 2000, we have our own brand“Procet”. We are an integrated and manufactured enterprise not only specialized in R&D but also good at manufacturing. Our headquarter is based in Beijing, our R&D center and factory is located at Dongguan City.

Our company has got ISO 9001:2015, ISO 14001:2015, OHSAS 18001:2007 Certification.We accumulated abundant experiences and excellent corporate reputation during the past years.We have rich variety of PoE Products, Single-port PoE, multi-port PoE, lightning-PoE, indoor PoE, outdoor IP67 PoE, DC PoE, Wide-temperature PoE, high power PoE, Industrial PoE, SFP fiber PoE, DIN Rail&Wall mounting&Pole mounting&Wall plug PoE, PoE Splitter, PoE Extender etc.All the PoE designed base on CE/FCC/CCC requirements, part type past cUL/UL, SAA, PSE, BIS, KCC, RCM, NOM certification.

Certification:

Ordering:

Product Order Info.(Model) :PT-PSE107GRO-S

Stock Quantity:100PCS

Bulk Stock Delivery Time:Within 48H

Shipping Way:DHL,UPS,FedEx,TNT,By SEA/AIR,Customer Nominated Forwarder

Packing Size:

Qty: 10pcs/carton

G.W.: 13Kgs

Volume: 0.04 m³

Packing: Export Carton

Pallet size: 110 x 110cm
