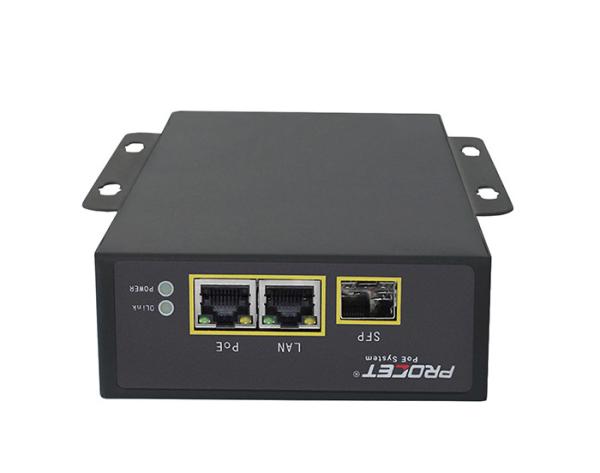

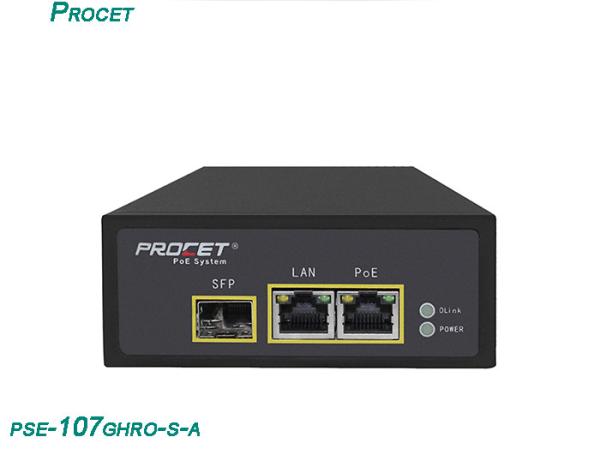

55 Volt 1360mA 75 Watt RJ45 SFP PoE Injector For Hikvision Ip Camera
55 Volt 1360mA 75 Watt RJ45 SFP PoE Injector For Hikvision Ip Camera
55 Volt 1360mA 75 Watt RJ45 SFP PoE Injector For Hikvision Ip Camera
55 Volt 1360mA 75 Watt RJ45 SFP PoE Injector For Hikvision Ip Camera
55 Volt 1360mA 75 Watt RJ45 SFP PoE Injector For Hikvision Ip Camera
55 Volt 1360mA 75 Watt RJ45 SFP PoE Injector For Hikvision Ip Camera
55 Volt 1360mA 75 Watt RJ45 SFP PoE Injector For Hikvision Ip Camera
55 Volt 1360mA 75 Watt RJ45 SFP PoE Injector For Hikvision Ip Camera
Specifications
Brand Name :
Procet
Model Number :
PT-PSE107GHRO-S-A
Certification :
CE FCC
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C, T/T
Supply Ability :
500PCS
Delivery Time :
Sample for 24 hours / Order within 20Days
Packaging Details :
204mm X 130mm X 41mm
Feature :
IP40 fire-retardant plastic housing
Storage Humidity :
10% to 90%, non-condensation
Surge protection :
4KV(10/700us)
Transmission Rate :
10/100/1000Mbps
Application :
Poe IP phone, POE IP Camera, Poe Wifi AP
Power :
75W
DC connector :
2 RJ45 Ethernet ports
Guarantee :
5
Color :
black
Wide temperature :
-40℃ to 65℃
Description

Industrial PoE Powered devices Input 100-240Vac Output55Vdc1360mA 75W Port RJ45+SFP

Key Specifications/Special Features

PT-PSE107GHRO-S-A is a single port midspan Injector with 4 Pair PoE up to 90 watts of power at 55 VDC at 1.64 amp.

Designed for powered 75W PoE Powered Devices (PDs), such as wireless APs, base stations, high power cameras, door locks, displays, POS,

information kiosks and other high power Ethernet terminals. It complies to IEEE802.3bt and backward compatible with IEEE802.3af/at standard. It

supports not only 10/100/1000Mbps of data speed,but also 2.5GbE/5GbE/10GbE NBase-T. Equipped detecting chip inside, which will detect and

classify PD before powering it, protecting non PoE device.

Enclosed in an IP40 plastic case, designed for indoor use. It operates with input voltage of 100-240Vac 2.0A 50/60Hz. The effective distance limitation of 100 meters over Cat5e/Cat6 cables.

Single Port Gigabit PoE Injector

TECHNICAL SPECIFICATION

Model PT-PSE107GHRO-S-A
Port Description 2x copper cable RJ45 ports, 1x AC input port
Power Supply Pin Default: 1/2 (+), 3/6 (-),optional:4/5(+), 7/8(-)
Network Medium 1000Base-T: 5Cat and more UTP (≤100 meters)
Thermal Protection >100°C
Working Rate 10/100/1000Mbps
Network Port Protection IEC61000-4-2(ESD)
MTBF 100,000 hours
LEDs Indicator PoE working status
PoE Standards IEEE 802.3af
Total Power 75W
AC Input Voltage 100~240V, 50~60Hz 0.5A
DC Output Voltage 55V 1360mA
Dimensions 204mm X 130mm X 41mm
Weight 7370G
Operation TEMP / Humidity -20°~ 55°C;10%~90%% RH Non condensing
Storage TEMP / Humidity -40°~ 85°C;10%~95% RH Non condensing
Certification CE mark,commercial,FCC Part 15 Class B, RoHS
Warranty

3 years warranty

55 Volt 1360mA 75 Watt RJ45 SFP PoE Injector For Hikvision Ip Camera

55 Volt 1360mA 75 Watt RJ45 SFP PoE Injector For Hikvision Ip Camera

55 Volt 1360mA 75 Watt RJ45 SFP PoE Injector For Hikvision Ip Camera

55 Volt 1360mA 75 Watt RJ45 SFP PoE Injector For Hikvision Ip Camera

55 Volt 1360mA 75 Watt RJ45 SFP PoE Injector For Hikvision Ip Camera

FAQ

Q: Are you manufacturer or trading company?

A: Manufacturer, and industry network total solution provider.

Q: Do you accept ODM/OEM?

A: Yes. We provide customized service.

Q: What is your minimum order quantity?

A: MOQ is 1 unit.

Q: What’s the payment type?

A: T/T, L/C,Western Union, Money Cram, Credit Card, Alipay, Cash.

Q: What’s the accepted trade terms?

A: EXW, FOB, CIF, FAS, CIP, FCA, CPT, DED, etc.

Q: How about shipping time?

A: Within 3-15 days after receiving full payment , but if you need OEM/ODM, the lead time depends on the specific specifications of the product.

Q: How about after-sales service?

A: 7/24 hours online and respond to user's field device problems in time.

Q: How about the warranty?

A: 5 years.
