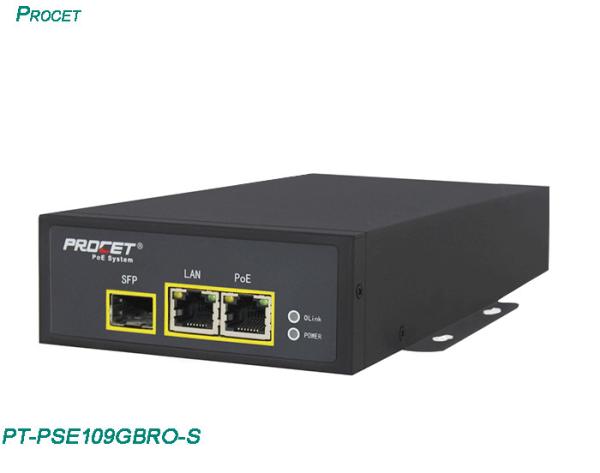

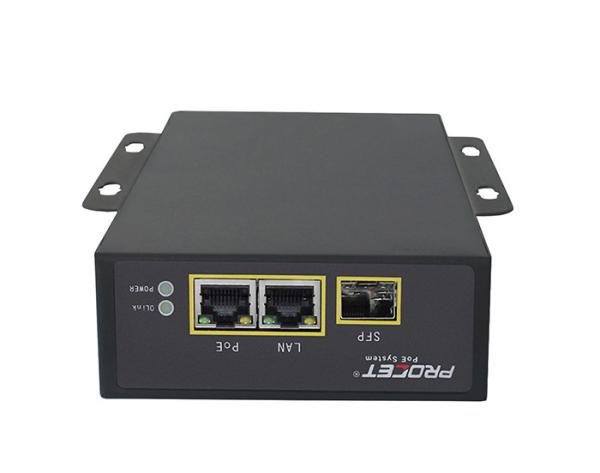

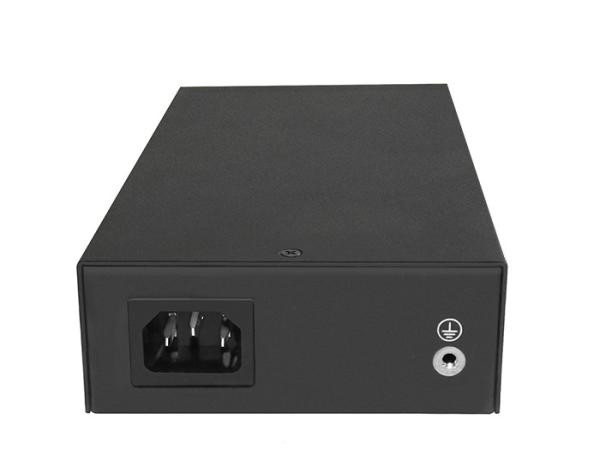

Procet 100-240Vac 95W SFP Fiber PoE Injector With Surge Protection 6KV
Procet 100-240Vac 95W SFP Fiber PoE Injector With Surge Protection 6KV
Procet 100-240Vac 95W SFP Fiber PoE Injector With Surge Protection 6KV
Procet 100-240Vac 95W SFP Fiber PoE Injector With Surge Protection 6KV
Procet 100-240Vac 95W SFP Fiber PoE Injector With Surge Protection 6KV
Procet 100-240Vac 95W SFP Fiber PoE Injector With Surge Protection 6KV
Procet 100-240Vac 95W SFP Fiber PoE Injector With Surge Protection 6KV
Procet 100-240Vac 95W SFP Fiber PoE Injector With Surge Protection 6KV
Specifications
Brand Name :
procet
Model Number :
PT-PSE109GBRO-S
Certification :
CE FCC
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
T/T, L/C
Supply Ability :
500PCS
Delivery Time :
Sample for 24 hours / Order within 20Days
Packaging Details :
176mm X 269mm X 65mm
Key Features :
designed for indoor use but can work outdoor by covered with waterproof case
Model :
PT-PSE109GBRO-S
.Mounting: :
Wall- mounted/ Pole-mounted.
Operating Humidity :
20% to 80%,non-condensation
Output :
55Vdc 1750mA
Input voltage :
100 to 240Vdc
Storage Temperature: :
-40℃ to 85℃
Surge Protection :
6Kv
power :
95W
LED Indicator Power Indicator :
Green PoE Load Indicator: Green
Description

SFP Fiber 95W PoE injector Procet Industrial injector Input 100-240Vac with Surge protection 6KV
Key Specifications/Special Features:


PT-PSE109GBRO-S
1. Procet Industrial SFP Fiber 95W PoE injector, Input 100-240Vac, Output 55Vdc 1750mA, Surge protection 6Kv, Working temperature at

-40℃ to 65℃, Gigabit data rates

2. PT-PSE109GBRO-S POE Injector is a single port midspan Injector with 4 Pair PoE up to 95 watts of power at 55 Vdc at 1.75 Amp.

3. Enclosed in an IP20 high-impact metal case, designed for indoor use but can work outdoor by covered with waterproof case. It works with a

wide input voltage of 100-240VAC with 6KV surge protection, 50 or 60 Hz and operates under -40℃ to +65℃. The effective distance limitation is

100 meters over Cat5e/Cat6 cables.

Parameter

Description

Key Features

Industrial PoE can be outdoor use by covered with waterproof case
Extend temperature from -40℃ to 65℃
SFP Fiber Function
Lighting Protection at PoE port
Gigabit data rates
IP20 high-impact metal enclosure
AC power cord with optional US or EU plug or other standard plug
Diagnostic LEDs

Part Number

PT-PSE109GBRO-S

Ports condition

LAN Port*1, AC Input Port*1, PoE Output Port*1, SFP Port*1

Regulatory Compliance

IEEE802.3bt
RoHS Compliance
WEEE Compliance

Pass Through Data Rates

10/100/1000 Mbps

Output

Pin Assignment and Polarity:
4/5(+), 7/8(-) and 3/6(+),1/2(-)
Output Power Voltage: 55Vdc
User Port Power: 95W Guaranteen

Input

AC Input Voltage:90 to 264Vac(100 to 240Vac Rated)
AC Input Current: 2.0A
Frequency: 47 to 63Hz (50/60Hz Typ.)

Working Environment

Operating Temperature: -40℃ to 65℃
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -40℃ to 85℃
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 5000meters

PoE Surge Protection

Protected line: 1,2,3,4,5,6,7,8
Common mode surge protection(10/700us): 6KV
Differential mode surge protection (10/700us): 1.5KV

AC Surge Protection

Line-Earth 1.2/50us (8/20us): 2KV
Line-Line 1.2/50us (8/20us): 1KV

Mechanical Characteristics

Case: Metal
Color: Black
Mounting:Wall-mounted
IP Rated: IP20
Connectors: Shielded RJ-45*2
Size: 214 X 134 X 41mm
Weight: 1070g(2.36lb)

LED Indicator

Power Indicator: Green
PoE Load Indicator: Green

Warranty

2 year

Safety Approvals

cUL/UL, CE, CB, FCC

Procet 100-240Vac 95W SFP Fiber PoE Injector With Surge Protection 6KV

FAQ

Q: Are you manufacturer or trading company?
A: Manufacturer, and industry network total solution provider.
Q: Do you accept ODM/OEM?
A: Yes. We provide customized service.
Q: What is your minimum order quantity?
A: MOQ is 1 unit.
Q: What’s the payment type?
A: T/T, L/C,Western Union, Money Cram, Credit Card, Alipay, Cash.
Q: What’s the accepted trade terms?
A: EXW, FOB, CIF, FAS, CIP, FCA, CPT, DED, etc.
Q: How about shipping time?
A: Within 3-15 days after receiving full payment , but if you need OEM/ODM, the lead time depends on the specific specifications of the product.
Q: How about after-sales service?
A: 7/24 hours online and respond to user's field device problems in time.
Q: How about the warranty?
A: 5 years.
