PSA Oxygen Generator with 93%-95% Oxygen Purity and 100Nm3/hr~8000Nm3/hr Capacity for Industrial Use
PSA Oxygen Generator with 93%-95% Oxygen Purity and 100Nm3/hr~8000Nm3/hr Capacity for Industrial Use
PSA Oxygen Generator with 93%-95% Oxygen Purity and 100Nm3/hr~8000Nm3/hr Capacity for Industrial Use
PSA Oxygen Generator with 93%-95% Oxygen Purity and 100Nm3/hr~8000Nm3/hr Capacity for Industrial Use
PSA Oxygen Generator with 93%-95% Oxygen Purity and 100Nm3/hr~8000Nm3/hr Capacity for Industrial Use
PSA Oxygen Generator with 93%-95% Oxygen Purity and 100Nm3/hr~8000Nm3/hr Capacity for Industrial Use
PSA Oxygen Generator with 93%-95% Oxygen Purity and 100Nm3/hr~8000Nm3/hr Capacity for Industrial Use
PSA Oxygen Generator with 93%-95% Oxygen Purity and 100Nm3/hr~8000Nm3/hr Capacity for Industrial Use
Specifications
Brand Name :
GNEE
Certification :
SGS
Place of Origin :
CHINA
MOQ :
≥1sets
Payment Terms :
MoneyGram,Western Union,T/T,D/P,L/C,D/A
Delivery Time :
Transit time: Est. 17-24 days
Packaging Details :
Wooden box packaging
Product :
VPSA oxygen generator
Outer Vessel Diameter :
2000 mm
Capacity :
100Nm3/hr~8000Nm3/hr
Usage :
Oxygen
Air Compressor Pressure :
0.7-1.0MPa
Oxygen Purity :
93%-95%
Technology :
Pressure Swing Adsorbtion (PSA)
Air Compressor Power :
22-110kW
Warranty Period :
15years+
Flow :
1200m3 / h
Weight :
Depend on capacity
Filling Rate :
95%
Description
PSA Oxygen Generator Oxygen Generator Factory For General Industry

Product Description

We manufacture PSA oxygen plant using the latest PSA (Pressure Swing Adsorption) technology. Being the leading PSA plant manufacturer, it is our motto to deliver oxygen machinery to our customers that is at par with international standards and yet is

very competitively priced. We use premium quality materials bought from the best suppliers in the industry.


Product Parameters

Product Name

PSA Oxygen Gas Generator

Model No.

PSA

Oxygen Production

≥100Nm3/h

Oxygen Purity

90~94%

Oxygen Pressure

50Kpa

Dew Point

≤-50 degree ℃

Capacity

(Nm³/h)

Purity

O₂ Outlet Pressure(Mpa)

Inlet/Outlet Connections(mm)

Dimensions

(mm)

2.2 - 3

95%±1%

0.3 - 0.5

DN15/G1 2

120010001840

3.5 - 5

95%±1%

0.3 - 0.5

DN20/G1 2

135012002050

6 - 7

95%±1%

0.3 - 0.5

DN25/G1 2

150013502350

8 - 10

95%±1%

0.3 - 0.5

DN25/G1 2

175015502300

11 - 13

95%±1%

0.3 - 0.5

DN25/G1 2

175015502300

14 - 15

95%±1%

0.3 - 0.5

DN40/G1 2

185018252350

16 - 17

95%±1%

0.3 - 0.5

DN40/G1 2

185018252350

18 - 20

95%±1%

0.3 - 0.5

DN40/G1 2

200019002350

21 - 25

95%±1%

0.3 - 0.5

DN40/G1 2

210020502400

26 - 30

95%±1%

0.3 - 0.5

DN40/G1 2

210020502400

31 - 35

95%±1%

0.3 - 0.5

DN50/G1

200013002400

36 - 42

95%±1%

0.3 - 0.5

DN50/G1

200013002800

43 - 46

95%±1%

0.3 - 0.5

DN50/G1

200013002800

47 - 52

95%±1%

0.3 - 0.5

DN50/G1

180017002400

53 - 56

95%±1%

0.3 - 0.5

DN50/G1-1 2

210018002600

57 - 63

95%±1%

0.3 - 0.5

DN65/G1-1 2

220015002700

3

98%±1%

0.5 - 1.0

DN20/G1 2

/

5

98%±1%

0.5 - 1.0

DN20/G1 2

/

10

98%±1%

0.5 - 1.0

DN25/G1 2

/

15

98%±1%

0.5 - 1.0

DN25/G1 2

/

20

98%±1%

0.5 - 1.0

DN40/G1 2

/

25

98%±1%

0.5 - 1.0

DN40/G1 2

/

30

98%±1%

0.5 - 1.0

DN50/G1 2

/

40

98%±1%

0.5 - 1.0

DN50/G1

/

PSA Oxygen Generator with 93%-95% Oxygen Purity and 100Nm3/hr~8000Nm3/hr Capacity for Industrial Use

PSA Oxygen Generator with 93%-95% Oxygen Purity and 100Nm3/hr~8000Nm3/hr Capacity for Industrial UsePSA Oxygen Generator with 93%-95% Oxygen Purity and 100Nm3/hr~8000Nm3/hr Capacity for Industrial Use

Technical Feature

1). Full Automation

All systems are designed for un-attended operation and automatic Oxygen demand adjustment.

2). Lower Space Requirement

The design and Instrument makes the plant size very compact,assembly on skids,prefabricated from factory.

3). Fast Start-up

Start-up time is only 5 minutes to get desired Oxygen purity.So these units can be switched ON&OFF as per Oxygendemand changes.

4). High Reliabiity

Very reliable for continuous and steady operation with constant Oxygen purity.Plant availability time is better than 99% always.

5). Molecular Sieves life

Expected Molecular sieves life is around 15-years i.e. whole life time of Oxygen plant.So no replacement costs.

6). Adjustable

By altering flow,you can deliver Oxygen with precisely the right purity.

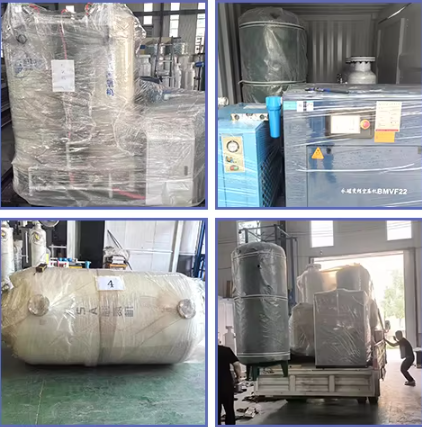

Packaging

Size

123 (L) * 456 (W) * 789 (D)

Weight

1.2 T

Packaging Details

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.


In addition to PSA Oxygen Generators, we also produce VPSA Oxygen Generators, storage tanks, heat exchangers and other products. If you are interested in VPSA Oxygen Systems or other products, please feel free to send an email to info@gneeheatex.com. We will be very happy to serve you.
