4 Digit 1/8 DIN Loop Powered LCD Indicator PR 5531B Easy Push Button Configuration
4 Digit 1/8 DIN Loop Powered LCD Indicator PR 5531B Easy Push Button Configuration
4 Digit 1/8 DIN Loop Powered LCD Indicator PR 5531B Easy Push Button Configuration
4 Digit 1/8 DIN Loop Powered LCD Indicator PR 5531B Easy Push Button Configuration
4 Digit 1/8 DIN Loop Powered LCD Indicator PR 5531B Easy Push Button Configuration
4 Digit 1/8 DIN Loop Powered LCD Indicator PR 5531B Easy Push Button Configuration
4 Digit 1/8 DIN Loop Powered LCD Indicator PR 5531B Easy Push Button Configuration
4 Digit 1/8 DIN Loop Powered LCD Indicator PR 5531B Easy Push Button Configuration
Specifications
Brand Name :
PR
Model Number :
PR 5531B
Certification :
CO
Place of Origin :
Denmark
MOQ :
1
Price :
100-300usd
Payment Terms :
T/T
Supply Ability :
99pcs 4-6 weeks
Delivery Time :
5-7 work days
Display Type :
LED/LCD
Response Time :
100 ms to 500 ms
Dimensions :
Typically 48x24mm, 72x36mm, or 96x48mm
Certifications :
CE, RoHS, UL
Power Supply :
AC 85-265V or DC 12-24V
Operating Temperature :
-10°C to 60°C
Measurement Range :
Depends on model, e.g., ±199.9 mV to ±199.9 V
Display Digits :
3.5 to 6 digits
Mounting Type :
Panel mount
Weight :
100g to 300g
Accuracy :
±0.05% to ±0.1%
Input Types :
Voltage, Current, Resistance, Thermocouple, RTD
Calibration :
Factory calibrated, user calibration available
Output Options :
Analog output, Relay output, RS485 communication
Description

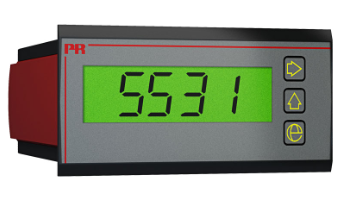

Loop-powered LCD Indicator
PR 5531B
  • 4 digit 1/8 DIN (48 x 96 mm) loop-powered LCD display
  • Easy push-button configuration
  • Backlit LCD display is readable in low light conditions

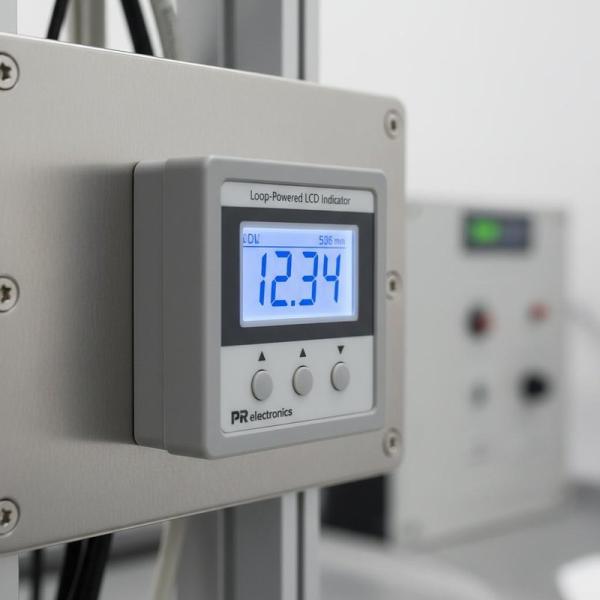

  • Display can be mounted in various industrial applications
    • Environmental Conditions
    Operating temperature -20°C to +60°C
    Storage temperature -20°C to +60°C
    Calibration temperature 20...28°C
    Relative humidity < 95% RH (non-cond.)
    Protection degree IP65, from front
    Mechanical Specifications
    Dimensions (HxWxD) 48 x 96 x 120 mm
    Cut out dimensions 44.5 x 91.5 mm
    Weight approx. 200 g
    Wire size, connector terminal 1 - 4 0.13...2.08 mm² / AWG 26...14 stranded wire
    Common Specifications
    Supply
    Supply voltage Input loop-powered
    Response Time
    Response time (0...90%, 100...10%) < 1 s
    EMC immunity influence < ±0.5% of span
    Programming Front-programmable
    Signal / noise ratio > 60 dB
    Updating time 500 ms
    Input Specifications
    Current Input
    Measurement range 3.6...23 mA
    Loop error detection, 4...20 mA: Low ~ < 3 mA
    Loop error detection, 4...20 mA: High ~ > 24 mA
    Input voltage drop, without backlight < 1.5 V @ 20 mA
    Input voltage drop, with half backlight < 6.5 V @ 20 mA
    Input voltage drop, with full backlight < 10.5 V @ 20 mA
    Output Specifications
    Display
    Display readout ± 9999 (4 digits)
    Digit height 16 mm
    Compliance & Certifications
    Observed Authority Requirements
    EMC 2014/30/EU

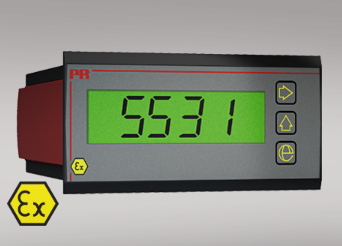

    ATEX 2014/34/EU
    RoHS 2011/65/EU
    EAC TR-CU 020/2011
    EAC Ex TR-CU 012/2011
    Approvals
    ATEX KEMA 05ATEX1105X
    IECEx DEK 24.0002X
    CCC 2024322309006239
    EAC Ex EAEU KZ 7500361.01.01.08756
