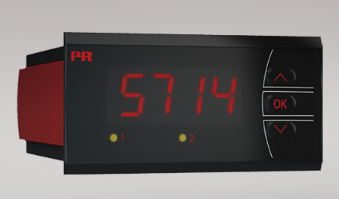

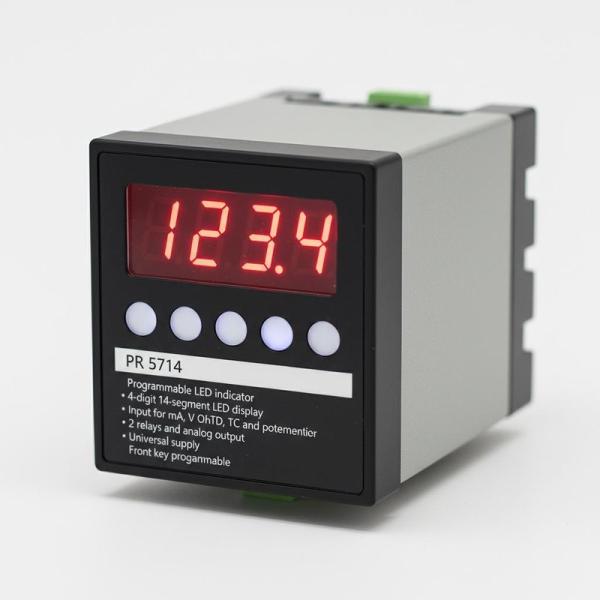

Programmable LED Indicator PR 5714
4-digit 14-segment LED display
Input for mA, V, Ohm, RTD, TC and potentiometer
2 relays and analog output
Universal supply
Front key programmable
Environmental Conditions
Operating temperature -20°C to +60°C
Calibration temperature 20...28°C
Relative humidity < 95% RH (non-cond.)
Protection degree (mounted in panel) IP65 / Type 4X
Mechanical Specifications
Dimensions (HxWxD) 48 x 96 x 120 mm
Cut out dimensions 44.5 x 91.5 mm
Weight approx. 230 g
Wire size, pin 41-46 (max.) 0.05...1.31 mm² AWG 30...16 stranded wire
Wire size, others, max. 0.05...3.31 mm² / AWG 30...12 stranded wire
Vibration IEC 60068-2-6
2...13.2 Hz ±1 mm
13.2...100 Hz ±0.7 g
Common Specifications
Supply
Supply voltage, universal 21.6...253 VAC, 50...60 Hz or 19.2...300 VDC
Max. required power 2.5 W (5714A) 3.0 W (5714B/C) 3.5 W (5714D)
Internal power dissipation 2.2 W (5714A) 2.7 W (5714B/C) 3.2 W (5714D)
Isolation Voltage
Isolation voltage, test / working 2.3 kVAC / 250 VAC
Response Time
Temperature input, programmable (0...90%, 100...10%) 1...60 s
mA / V input (programmable) 0.4...60 s
Auxiliary Supplies
2-wire supply (pin 46...45) > 15 VDC @ 0...20 mA
Programming Front-programmable
Signal / noise ratio Min. 60 dB (0...100 kHz)
Accuracy Better than 0.1% of sel. range
EMC immunity influence < ±0.5% of readout
Input Specifications
RTD Input
RTD type Pt10/20/50/100/200/250; Pt300/400/500/1000; Ni50/100/120/1000; Cu10/20/50/100
Cable resistance per wire 50 Ω (max.)
Sensor current Nom. 0.2 mA
Effect of sensor cable resistance (3-/4-wire) < 0.002 Ω / Ω
Linear Resistance Input
Linear resistance min....max. 0 Ω...10000 Ω
Potentiometer Input
Potentiometer min....max. 10 Ω...100 kΩ
TC Input
Thermocouple type B, E, J, K, L, N, R, S, T, U, W3, W5, LR
CJC via int. mounted sensor ±(2.0°C + 0.4°C * Δt)
Sensor error detection Yes
Sensor error current: When detecting / else Nom. 2 μA / 0 μA
Current Input
Measurement range 0...23 mA
Programmable measurement ranges 0...20 and 4...20 mA
Input resistance Nom. 20 Ω + PTC 25 Ω
Sensor error detection Loop break 4...20 mA
Voltage Input
Measurement range 0...12 VDC
Programmable measurement ranges 0/0.2...1; 0/2...10 VDC
Input resistance Nom. 10 MΩ
Output Specifications
Display
Display readout -1999...9999 (4 digits)
Decimal point Programmable
Digit height 13.8 mm
Display updating 2.2 times / s
Input outside input range is indicated by Explanatory text
Current Output
Signal range 0...23 mA
Programmable signal ranges 0...20/4...20/20...0/20...4 mA
Load (@ current output) ≤ 800 Ω
Load stability ≤ 0.01% of span / 100 Ω
Sensor error indication 0 / 3.5 / 23 mA / none
NAMUR NE43 Upscale/Downscale 23 mA / 3.5 mA
Output limitation, on 4...20 and 20...4 mA signals 3.8...20.5 mA
Output limitation, on 0...20 and 20...0 mA signals 0...20.5 mA
Current limit ≤ 28 mA
Relay Output
Relay functions Setpoint
Hysteresis 0...100%
ON and OFF delay 0...3600 s
Sensor error reaction Break / Make / Hold
Max. voltage 250 VAC / VDC
Max. current 2 A
Max. AC power 500 VA
Max. DC current, resistive load > 30 VDC See manual for details
Compliance & Approvals
Observed Authority Requirements
EMC 2014/30/EU & UK SI 2016/1091
LVD 2014/35/EU & UK SI 2016/1101
RoHS 2011/65/EU & UK SI 2012/3032
EAC TR-CU 020/2011
EAC LVD TR-CU 004/2011
Approvals
c UL us, UL 508 E248256
EU RO MR Type Approval MRA000000Z
