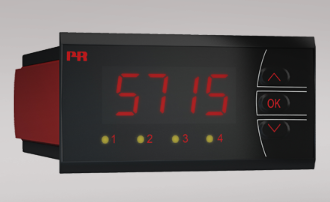

PR 5715 Digital Panel Meter Panel Mount 4 Relays Analog Output Programmable LED Indicator
PR 5715 Digital Panel Meter Panel Mount 4 Relays Analog Output Programmable LED Indicator
PR 5715 Digital Panel Meter Panel Mount 4 Relays Analog Output Programmable LED Indicator
PR 5715 Digital Panel Meter Panel Mount 4 Relays Analog Output Programmable LED Indicator
PR 5715 Digital Panel Meter Panel Mount 4 Relays Analog Output Programmable LED Indicator
PR 5715 Digital Panel Meter Panel Mount 4 Relays Analog Output Programmable LED Indicator
PR 5715 Digital Panel Meter Panel Mount 4 Relays Analog Output Programmable LED Indicator
PR 5715 Digital Panel Meter Panel Mount 4 Relays Analog Output Programmable LED Indicator
Specifications
Brand Name :
PR
Model Number :
PR 5715
Certification :
CO
Place of Origin :
Denmark
MOQ :
1
Price :
100-300usd
Payment Terms :
T/T
Supply Ability :
99pcs 4-6 weeks
Delivery Time :
5-7 work days
Accuracy :
±0.1% to ±0.5%
Mounting Type :
Panel mount
Input Impedance :
≥1MΩ for voltage input
Input Types :
Voltage, Current, Resistance, Thermocouple, RTD
Storage Temperature :
-20°C to 70°C
Output Options :
Relay, Analog output (4-20mA, 0-10V), RS485 communication
Power Supply :
AC 85-265V or DC 12-24V
Dimensions :
Varies, commonly 96x48mm or 72x36mm
Display Digits :
3.5 to 6 digits
Operating Temperature :
-10°C to 60°C
Measurement Range :
Depends on model, typically ±1999 to ±9999 counts
Display Type :
LED / LCD
Response Time :
Typically 200ms to 500ms
Certifications :
CE, RoHS
Description

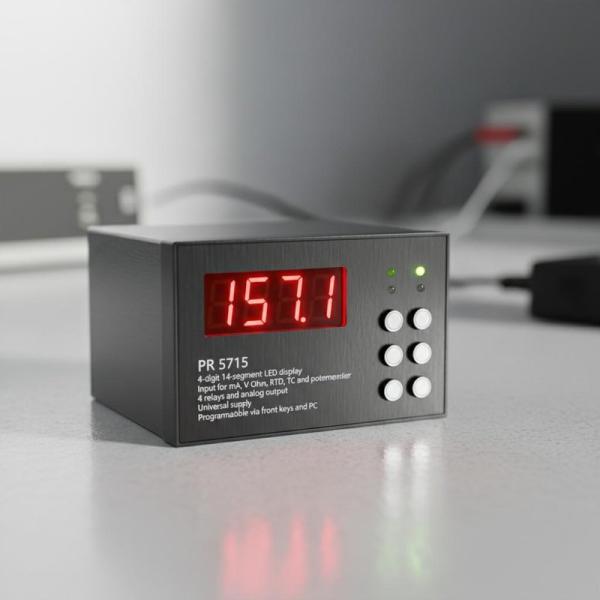

Programmable LED Indicator PR 5715
Key Features
  • 4-digit 14-segment LED display with 13.8 mm digit height
  • Multiple input types: mA, V, Ohm, RTD, TC and potentiometer
  • 4 relay outputs and analog output capability
  • Universal power supply (21.6-253 VAC / 19.2-300 VDC)
  • Front-panel programming and PC configuration options
  • High accuracy: better than 0.1% of selected range
Environmental Specifications
Operating Temperature -20°C to +60°C
Calibration Temperature 20-28°C
Relative Humidity < 95% RH (non-condensing)
Protection Degree (panel mounted) IP65 / Type 4X
Mechanical Specifications
Dimensions (H*W*D) 48 * 96 * 120 mm
Cut-out Dimensions 44.5 * 91.5 mm
Weight (approx.) 260 g
Wire Size (pins 41-46, max.) 0.05-1.31 mm² / AWG 30-16 stranded wire
Wire Size (other pins, max.) 0.05-3.31 mm² / AWG 30-12 stranded wire
Electrical Specifications
Power Supply
Supply Voltage 21.6-253 VAC, 50-60 Hz or 19.2-300 VDC
Maximum Power Required 3.3 W (5715B) / 3.8 W (5715D)
Internal Power Dissipation 3.0 W (5715B) / 3.5 W (5715D)
Isolation & Response
Isolation Voltage (test/working) 2.3 kVAC / 250 VAC
Temperature Input Response Time ≤ 1 s (0-90%, 100-10%)
mA/V Input Response Time ≤ 400 ms (0-90%, 100-10%)
Input Specifications
RTD Input
RTD Types Pt10/20/50/100/200/250; Pt300/400/500/1000; Ni50/100/120/1000; Cu10/20/50/100
Cable Resistance per Wire 50 Ω (max.)
Sensor Current Nominal 0.2 mA
Thermocouple Input
Thermocouple Types B, E, J, K, L, N, R, S, T, U, W3, W5, LR
CJC via Internal Sensor ±(2.0°C + 0.4°C * Δt)
Current & Voltage Inputs
Current Measurement Range 0-20 mA (programmable: 0-20 and 4-20 mA)
Voltage Measurement Range 0-12 VDC (programmable: 0/0.2-1; 0/2-10 VDC)
Output Specifications
Display
Display Readout -1999 to 9999 (4 digits)
Digit Height 13.8 mm
Display Update Rate 2.2 times/second
Current Output
Signal Range 0-20 mA
Programmable Ranges 0-20/4-20/20-0/20-4 mA
Load (@ current output) ≤ 800 Ω
Relay Output
Relay Functions Setpoint
Maximum Voltage 250 VRMS
Maximum Current 2 AAC
Certifications & Approvals
EMC 2014/30/EU & UK SI 2016/1091
LVD 2014/35/EU & UK SI 2016/1101
RoHS 2011/65/EU & UK SI 2012/3032
EAC TR-CU 020/2011
EAC LVD TR-CU 004/2011
c UL us, UL 508 E248256
EU RO MR Type Approval MRA000000Z
