4 Digit 1/8 DIN LCD Indicator PR 5531A Loop Powered Digital Indicator
4 Digit 1/8 DIN LCD Indicator PR 5531A Loop Powered Digital Indicator
4 Digit 1/8 DIN LCD Indicator PR 5531A Loop Powered Digital Indicator
4 Digit 1/8 DIN LCD Indicator PR 5531A Loop Powered Digital Indicator
4 Digit 1/8 DIN LCD Indicator PR 5531A Loop Powered Digital Indicator
4 Digit 1/8 DIN LCD Indicator PR 5531A Loop Powered Digital Indicator
4 Digit 1/8 DIN LCD Indicator PR 5531A Loop Powered Digital Indicator
4 Digit 1/8 DIN LCD Indicator PR 5531A Loop Powered Digital Indicator
Specifications
Brand Name :
PR
Model Number :
PR 5531A
Certification :
CO
Place of Origin :
Denmark
MOQ :
1
Price :
40-100USD
Payment Terms :
T/T
Supply Ability :
99PCS 4-6 WEEKS
Delivery Time :
5-7 work days
Display Type :
LED / LCD
Accuracy :
±0.1% to ±0.5%
Material :
Plastic or metal housing
Response Time :
100ms to 500ms
Measurement Range :
Customizable depending on model
Application :
Industrial automation, process control, power monitoring
Power Supply :
AC 85-265V or DC 12-24V
Mounting Type :
Panel mount
Certifications :
CE, RoHS, UL
Operating Temperature :
-10°C to 60°C
Input Signal :
Voltage, Current, Resistance, Thermocouple, RTD
Dimensions :
Varies by model, typically 48x48mm or 96x48mm
Output Signal :
Analog output, Relay output, RS485 communication
Display Digits :
3.5 to 6 digits
Description

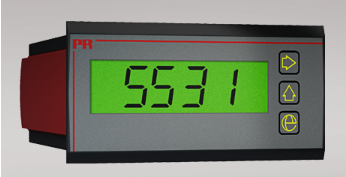

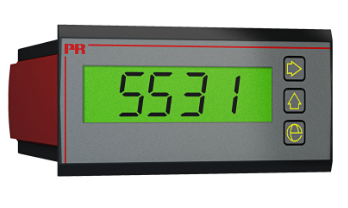

Loop-powered LCD Indicator
PR 5531A
Product Overview
  • 4 digit 1/8 DIN (48 x 96 mm) loop-powered LCD display
  • Easy push-button configuration
  • Backlit LCD display readable in low light conditions
  • Versatile mounting options
Environmental Conditions
Operating temperature-20°C to +60°C
Storage temperature-20°C to +60°C
Calibration temperature20...28°C
Relative humidity< 95% RH (non-condensing)
Protection degreeIP65, from front
Mechanical Specifications
Dimensions (HxWxD)48 x 96 x 120 mm
Cut out dimensions44.5 x 91.5 mm
Weight approx.200 g
Wire size, connector terminal 1-40.13...2.08 mm² / AWG 26...14 stranded wire
Screw terminal torque0.5 Nm
Common Specifications
Supply
Supply voltageInput loop-powered
Response Time
Response time (0...90%, 100...10%)< 1 s
ProgrammingFront-programmable
Signal / noise ratio> 60 dB
Updating time500 ms
EMC immunity influence< ±0.5% of span
Input Specifications
Current Input
Loop error detection, 4...20 mA: Low~ < 3 mA
Loop error detection, 4...20 mA: High~ > 24 mA
Input range4...20 mA
Measurement range3.6...23 mA
Input voltage drop, without backlight< 1.5 V @ 20 mA
Input voltage drop, with half backlight< 6.5 V @ 20 mA
Input voltage drop, with full backlight< 10.5 V @ 20 mA
Output Specifications
Display
Display readout± 9999 (4 digits)
Digit height16 mm
Compliance & Certifications
EMC2014/30/EU
ATEX2014/34/EU
RoHS2011/65/EU
EACTR-CU 020/2011
EAC LVDTR-CU 004/2011
Approvals
ATEXKEMA 05ATEX1044X
IECExDEK 24.0002X
CCC2024322309006239
