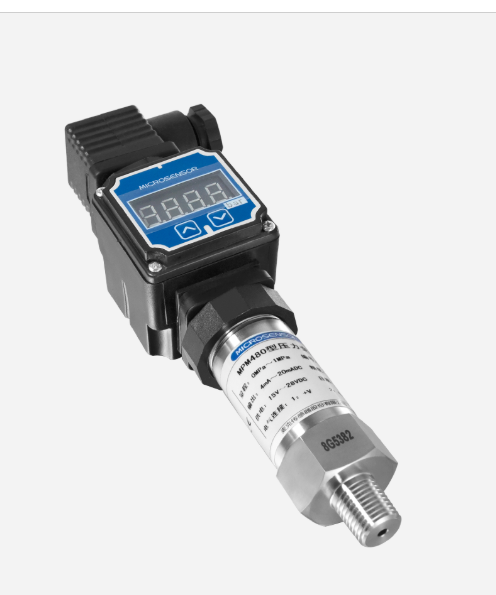

MPM480 high-frequency analog output pressure transmitter
MPM480 high-frequency analog output pressure transmitter
Specifications
Certification :
CO
MOQ :
1
Pressuretype :
Gauge, Absolute, Differential
Responsetime :
≤ 1 ms
Payment Terms :
T/T
Application :
Industrial process control, HVAC, Hydraulic systems
Calibration :
Factory calibrated
Price :
10-100usd
Supply Ability :
99pcs 1-2 weeks
Accuracy :
±0.25% FS
Mountingoptions :
Panel mount, Pipe mount
Outputsignal :
4-20 mA
Model Number :
MPM480
Measurementrange :
0 to 1000 psi
Protectionrating :
IP65
Operatingtemperature :
-20°C to 85°C
Delivery Time :
5-7 work days
Place of Origin :
china
Material :
Stainless Steel
Productname :
Pressure Measurement Instruments
Connectiontype :
1/4 inch NPT
Powersupply :
24 V DC
Displaytype :
Digital LCD
Description
MPM480 High-Frequency Analog Output Pressure Transmitter
Product Overview

The MPM480 series represents advanced high-frequency analog output pressure transmitters designed for precision measurement applications across various industrial environments.

Technical Specifications
Pressure Range: -0.1…0 – 0.1…100 MPa
Overpressure: 1.5 x FS or 110 MPa (whichever is minimum)
Pressure Type: G = Gauge; A = Absolute; S = Sealed Gauge
Accuracy (Non-linearity + Hysteresis + Repeatability):
MPM489: ±0.5% FS
MPM480: ±0.25% FS
Long Term Stability:
MPM489: ±0.15% FS (typical)
MPM480: ±0.1% FS (typical)
Temperature Performance
Parameter MPM489 MPM480
Zero Temperature Coefficient 0.05% FS/°C (±100 kPa)
0.03% FS/°C (±100 kPa)		 0.03% FS/°C (±100 kPa)
0.02% FS/°C (±100 kPa)
Full Scale Temperature Coefficient 0.05% FS/°C (±100 kPa)
0.03% FS/°C (±100 kPa)		 0.03% FS/°C (±100 kPa)
0.02% FS/°C (±100 kPa)
Operating Conditions
Compensated Temperature: 0°C – 60°C
Operating Temperature: -30°C to +80°C
Intrinsically safe version: -10°C to +70°C
Storage Temperature: -40°C to +120°C
Electrical Specifications
Power Supply: 10 – 30 VDC
Intrinsically safe version: Supply by safety barrier
Output Signal: 4-20 mA (2-wire), 0/1-5 VDC (3-wire), 0-10 VDC (3-wire)
Load Resistance: ≤(U-10)/0.02 Ω (2-wire), ≥10 KΩ (3-wire)
Intrinsically Safe Rating: ExiaCT6
Physical Characteristics
Pressure Connection: ¼G male - ½G male
M20X1.5 male – M20X1.5 male flush diaphragm - ½G male flush diaphragm
Electrical Connection: Plug DIN43650 – Cable
Housing Protection: IP65
