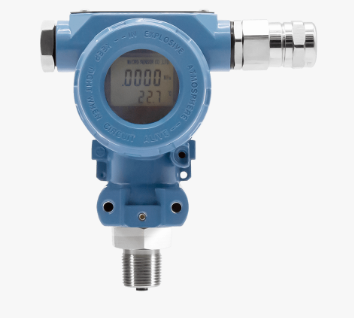

MPM483DM High Precision Stainless Steel IP65 Digital Pressure Transmitter
MPM483DM High Precision Stainless Steel IP65 Digital Pressure Transmitter
MPM483DM High Precision Stainless Steel IP65 Digital Pressure Transmitter
MPM483DM High Precision Stainless Steel IP65 Digital Pressure Transmitter
MPM483DM High Precision Stainless Steel IP65 Digital Pressure Transmitter
MPM483DM High Precision Stainless Steel IP65 Digital Pressure Transmitter
Specifications
Model Number :
MPM483DM
Certification :
CO
Place of Origin :
china
MOQ :
1
Price :
10-100usd
Payment Terms :
T/T
Supply Ability :
99pcs 1-2 weeks
Delivery Time :
5-7 work days
Responsetime :
≤ 1 ms
Pressuretype :
Gauge, Absolute, Differential
Material :
Stainless Steel
Productname :
Pressure Measurement Instruments
Application :
Industrial process control, HVAC, Hydraulic systems
Protectionrating :
IP65
Accuracy :
±0.25% FS
Powersupply :
24 V DC
Calibration :
Factory calibrated
Connectiontype :
1/4 inch NPT
Displaytype :
Digital LCD
Mountingoptions :
Panel mount, Pipe mount
Operatingtemperature :
-20°C to 85°C
Measurementrange :
0 to 1000 psi
Outputsignal :
4-20 mA
Description
MPM483DM Intelligent Digital Pressure Transmitter
The MPM483DM intelligent digital pressure transmitter is a high-precision, high-stability digital transmitter product designed for demanding industrial applications.
Performance Specifications
  • Measurement Range: -100kPa... 0kPa~10kPa... 100MPa
  • Overload Capacity: ≤ 2 times full range pressure or 110MPa (whichever is lower)
  • Pressure Types:
    • Absolute pressure type A
    • Gauge pressure type S
    • Positive/negative pressure type N
    • Gauge pressure type G (explosion-proof)
    ① Not recommended for gauge pressure G and positive/negative pressure type N
  • Comprehensive Accuracy: Detailed in measurement range and accuracy table
  • Long-term Stability: ± 0.25% FS/year
  • Compensation Temperature: -10℃ to 70℃
  • Operating Temperature:
    • -30℃ to 80℃ (standard and intrinsic safety types)
    • -30℃ to 60℃ (explosion-proof type)
  • Storage Temperature: -40℃ to 85℃
  • Insulation Resistance: 100MΩ @ 100V
  • Vibration Resistance: 10g, 20Hz~2000Hz
    ② Base and shell bonding, default bonding for explosion-proof type
  • Impact Resistance: 20g, 11ms
  • Protection Level: IP65
