MPM6861SY Wireless Pressure Transmitter with LCD Display Ultra-Low Power Consumption 4G MQTT Communication IP67 Protection
MPM6861SY Wireless Pressure Transmitter with LCD Display Ultra-Low Power Consumption 4G MQTT Communication IP67 Protection
MPM6861SY Wireless Pressure Transmitter with LCD Display Ultra-Low Power Consumption 4G MQTT Communication IP67 Protection
MPM6861SY Wireless Pressure Transmitter with LCD Display Ultra-Low Power Consumption 4G MQTT Communication IP67 Protection
MPM6861SY Wireless Pressure Transmitter with LCD Display Ultra-Low Power Consumption 4G MQTT Communication IP67 Protection
MPM6861SY Wireless Pressure Transmitter with LCD Display Ultra-Low Power Consumption 4G MQTT Communication IP67 Protection
Specifications
Model Number :
MPM6861SY
Certification :
CO
Place of Origin :
china
MOQ :
1
Price :
10-100usd
Payment Terms :
T/T
Supply Ability :
99pcs 1-2 weeks
Delivery Time :
5-7 work days
Responsetime :
≤ 1 ms
Pressuretype :
Gauge, Absolute, Differential
Material :
Stainless Steel
Productname :
Pressure Measurement Instruments
Application :
Industrial process control, HVAC, Hydraulic systems
Protectionrating :
IP65
Accuracy :
±0.25% FS
Powersupply :
24 V DC
Calibration :
Factory calibrated
Connectiontype :
1/4 inch NPT
Displaytype :
Digital LCD
Mountingoptions :
Panel mount, Pipe mount
Operatingtemperature :
-20°C to 85°C
Measurementrange :
0 to 1000 psi
Outputsignal :
4-20 mA
Description

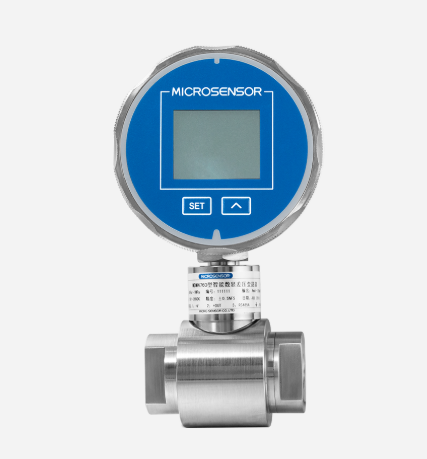

MPM6861SY Wireless Pressure Transmitter
The MPM6861SY wireless pressure transmitter is an advanced LCD digital display instrument featuring ultra-low power consumption and robust wireless communication capabilities for industrial applications.
Key Features
  • LCD segment code screen with digital display
  • Ultra-low power consumption design
  • 4G MQTT wireless communication
  • Magnetic control button operation
  • Multiple configuration modes: Local/Bluetooth/Wireless
  • IP67 protection rating for harsh environments
Technical Specifications
Pressure Range 0kPa ~ 7kPa...100MPa
Overload Capacity ≤ 2 times full range pressure or 110MPa (whichever is lower)
Pressure Types Gauge pressure, Absolute pressure, Sealed gauge pressure
Long-term Stability ± 0.2% FS/year
Operating Temperature -20℃ ~ 80℃
-20℃ ~ 70℃ (explosion-proof d1 type)
-20℃ ~ 80℃ (explosion-proof d2 type)
Storage Temperature -40℃ ~ 90℃
Power Supply 3.6V disposable lithium battery
Power Consumption Sending average current: <150mA
Sleep current: <30μA
Protection Level IP67
Weight ≤ 1.5kg
Communication & Configuration
This transmitter supports 4G MQTT communication protocol and offers flexible configuration options including local, Bluetooth, and wireless methods for easy setup and maintenance.
