Rosemount 3051CFA Integral Orifice Flow Meter Multivariable Device Customized
Rosemount 3051CFA Integral Orifice Flow Meter Multivariable Device Customized
Rosemount 3051CFA Integral Orifice Flow Meter Multivariable Device Customized
Rosemount 3051CFA Integral Orifice Flow Meter Multivariable Device Customized
Rosemount 3051CFA Integral Orifice Flow Meter Multivariable Device Customized
Rosemount 3051CFA Integral Orifice Flow Meter Multivariable Device Customized
Specifications
Brand Name :
Emerson Rosemount
Model Number :
3051CFA
Certification :
CO
Place of Origin :
USA
MOQ :
1
Price :
200-2000
Payment Terms :
T/T
Supply Ability :
99PCS 4-6 WEEKS
Delivery Time :
5-7 WORK DAYS
Medium :
gas,liquid
Port :
Shanghai or Ningbo
Pressure Form :
Gauge G,Absolute A
Current Output :
4-20mA
Pressure Type :
Gauge / Absolute / Sealed Gauge
Thread :
NPT,G,ZG-1/2,M20*1.5 threaded connection
Temp Range :
0~(100-1200)℃
Process Connection :
1/2 inch NPT
Measuring Medium :
liquid, gas, steam
Accuracy :
±0.1% FS
Communication :
RS485
Temperature :
-40 to 104°c
Ambient Temperature :
(-40～80)℃
Voltage :
5±0.5VDc
Power Supply :
12-36 V DC
Description

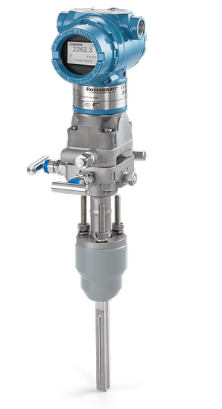

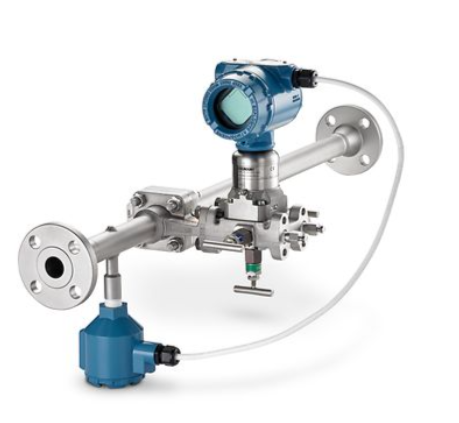

Rosemount 3051CFA Integral Orifice Flow Meter
The Rosemount 3051CFA Integral Orifice Flow Meter is a superior multivariable device featuring an integral orifice primary element, designed for precise flow measurement in demanding industrial applications.
Product Specifications
Warranty Up to 1-year limited warranty
Rangedown Up to 150:1 (8:1 flow turndown)
Measurement Range Up to 1000 inH2O (2.48 bar) differential
Communication Protocol 4-20 mA HART®, Wireless HART®, FOUNDATION™ fieldbus, PROFIBUS® PA, 1-5 V Low Power HART®
Line Size 2 to 96 in. (50 to 2440 mm)
Process Wetted Material 316L SST, Alloy C-276
Diagnostics Basic Diagnostics, Process Alerts, Loop Integrity Diagnostics, Plugged Impulse Line Diagnostics
Certifications/Approvals SIL 2/3 certified to IEC 61508 by an independent 3rd party, NACE®
Wireless Update Rate 1 sec. to 60 min., user selectable
Power Module Life Up to 10-year life, field replaceable (order separately)
Wireless Range Internal antenna (225 m)
Key Features:
  • Integral orifice primary element design
  • Multivariable measurement capability
  • Wide range of communication protocols
  • Advanced diagnostic functions
  • Long-lasting power module with field replacement option
