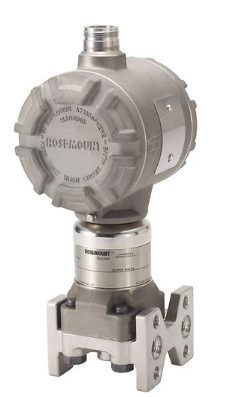

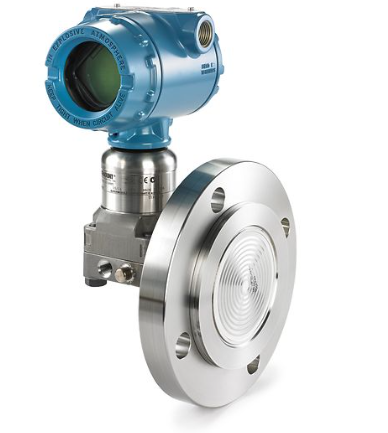

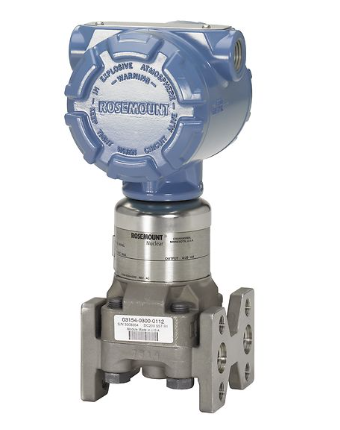

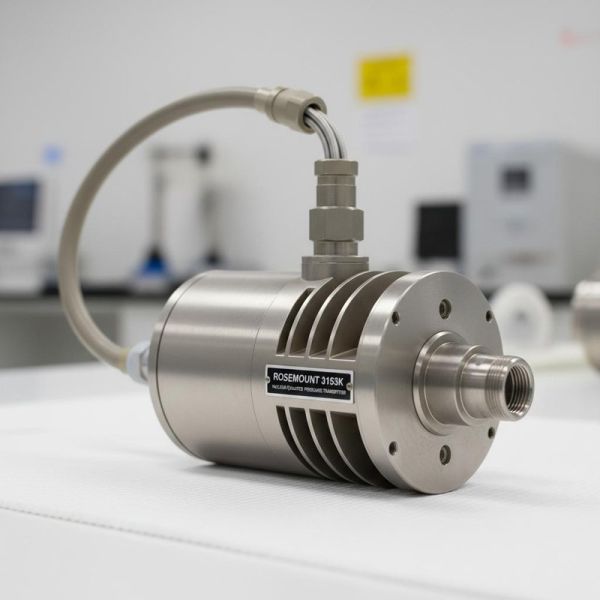

Aluminum Pressure Transmitter Rosemount 3153K Qualified For Nuclear Applications
Aluminum Pressure Transmitter Rosemount 3153K Qualified For Nuclear Applications
Aluminum Pressure Transmitter Rosemount 3153K Qualified For Nuclear Applications
Aluminum Pressure Transmitter Rosemount 3153K Qualified For Nuclear Applications
Aluminum Pressure Transmitter Rosemount 3153K Qualified For Nuclear Applications
Aluminum Pressure Transmitter Rosemount 3153K Qualified For Nuclear Applications
Aluminum Pressure Transmitter Rosemount 3153K Qualified For Nuclear Applications
Aluminum Pressure Transmitter Rosemount 3153K Qualified For Nuclear Applications
Specifications
Brand Name :
Emerson Rosemount
Model Number :
3153K
Certification :
CO
Place of Origin :
USA
MOQ :
1
Price :
200-2000
Payment Terms :
T/T
Supply Ability :
99PCS 4-6 WEEKS
Delivery Time :
5-7 WORK DAYS
Medium :
gas,liquid
Port :
Shanghai or Ningbo
Pressure Form :
Gauge G,Absolute A
Current Output :
4-20mA
Pressure Type :
Gauge / Absolute / Sealed Gauge
Thread :
NPT,G,ZG-1/2,M20*1.5 threaded connection
Temp Range :
0~(100-1200)℃
Process Connection :
1/2 inch NPT
Measuring Medium :
liquid, gas, steam
Accuracy :
±0.1% FS
Communication :
RS485
Temperature :
-40 to 104°c
Ambient Temperature :
(-40～80)℃
Voltage :
5±0.5VDc
Power Supply :
12-36 V DC
Description
Rosemount 3153K Nuclear Qualified Pressure Transmitter
Professional-grade pressure transmitter specifically designed and qualified for nuclear applications with robust performance specifications.
Technical Specifications
Output Signal 4-20mA
Rangedown Up To 10:1 (5:1 for range 1)
Measurement Range Up to 13.79 MPa (2000 psi) Differential
Up to 27.58 MPa (4000 psig) Gauge
Up to 27.58 MPa (4000 psig) Absolute
Housing Material Aluminum
Process Wetted Material 316 SST
Seismic Rating Vibration levels up to 50 m/s² at 16 Hz
Radiation Rating 20 kGy (2 Mrad) TID gamma radiation
Steam/Pressure Temperature HELB 115° C (239° F) peak temperature
Qualification Standard RCC-E 2002
Product Documentation
The Product Data Sheets and Manuals posted on this website are intended for general product information only, with errata included. They may not represent the latest revision or contain information relating to recent product notifications, if any.
Contact Information
Please contact Rosemount Nuclear Instruments, Inc. at 1-952-949-5200 or RNII.info@emerson.com for the most current information available.
