Integral Orifice Primary Element Rosemount 3051CFP Integral Orifice Flow Meter
Integral Orifice Primary Element Rosemount 3051CFP Integral Orifice Flow Meter
Integral Orifice Primary Element Rosemount 3051CFP Integral Orifice Flow Meter
Integral Orifice Primary Element Rosemount 3051CFP Integral Orifice Flow Meter
Integral Orifice Primary Element Rosemount 3051CFP Integral Orifice Flow Meter
Integral Orifice Primary Element Rosemount 3051CFP Integral Orifice Flow Meter
Integral Orifice Primary Element Rosemount 3051CFP Integral Orifice Flow Meter
Integral Orifice Primary Element Rosemount 3051CFP Integral Orifice Flow Meter
Specifications
Brand Name :
Emerson Rosemount
Model Number :
3051CFP
Certification :
CO
Place of Origin :
USA
MOQ :
1
Price :
200-2000
Payment Terms :
T/T
Supply Ability :
99PCS 4-6 WEEKS
Delivery Time :
5-7 WORK DAYS
Medium :
gas,liquid
Port :
Shanghai or Ningbo
Pressure Form :
Gauge G,Absolute A
Current Output :
4-20mA
Pressure Type :
Gauge / Absolute / Sealed Gauge
Thread :
NPT,G,ZG-1/2,M20*1.5 threaded connection
Temp Range :
0~(100-1200)℃
Process Connection :
1/2 inch NPT
Measuring Medium :
liquid, gas, steam
Accuracy :
±0.1% FS
Communication :
RS485
Temperature :
-40 to 104°c
Ambient Temperature :
(-40～80)℃
Voltage :
5±0.5VDc
Power Supply :
12-36 V DC
Description

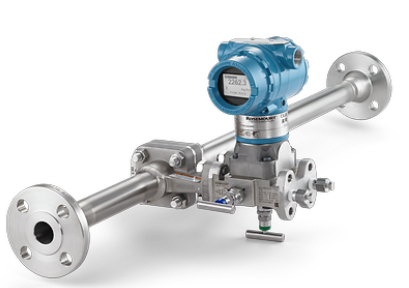

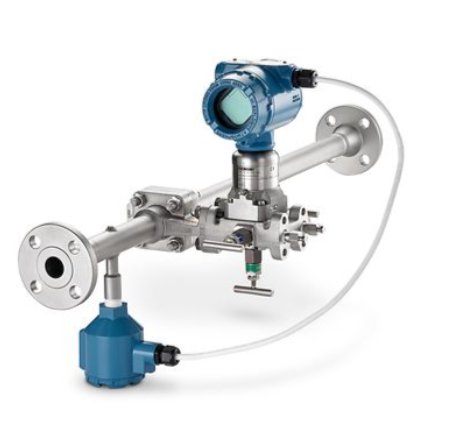

Rosemount 3051CFP Integral Orifice Flow Meter
Designed with an integral orifice primary element for easy installation, the Rosemount 3051CFP Integral Orifice Flow Meter is an industry-leading flow measurement solution.
Product Specifications
Warranty Up to 1 year limited warranty
Range Up to 150:1 (8:1 flow turndown)
Measurement Range Up to 1000 inH2O (2,48 bar) differential
Communication Protocol 4-20 MA HART, Wireless HART, FOUNDATION fieldbus, PROFIBUS PA, 1-5 V Low Power HART
Line Size 0.5 to 1.5 in. (15 to 40 mm)
Process Wetted Material Body: 316L SST
Orifice Plate: 316L SST, Alloy C-276, Alloy 400
Diagnostics Basic Diagnostics, Process Alerts, Loop Integrity Diagnostics, Plugged Impulse Line Diagnostics
Certifications/Approvals SIL 2/3 certified to IEC 61508 by an independent 3rd party, NACE
Wireless Update Rate 1 sec. to 60 min., user selectable
Power Module Life Up to 10-year life, field replaceable (order separately)
Wireless Range Internal antenna (225 m)
Key Features
  • Integral orifice design for simplified installation
  • Industry-leading flow measurement accuracy
  • Multiple communication protocol options
  • Comprehensive diagnostic capabilities
  • Long-lasting power module with field replaceable option
  • SIL 2/3 safety certification
