Rosemount 3051HT Hygienic Pressure Transmitter with ±0.1% FS Accuracy, 316L SST Material, and 4-20mA HART® Communication
Rosemount 3051HT Hygienic Pressure Transmitter with ±0.1% FS Accuracy, 316L SST Material, and 4-20mA HART® Communication
Rosemount 3051HT Hygienic Pressure Transmitter with ±0.1% FS Accuracy, 316L SST Material, and 4-20mA HART® Communication
Rosemount 3051HT Hygienic Pressure Transmitter with ±0.1% FS Accuracy, 316L SST Material, and 4-20mA HART® Communication
Rosemount 3051HT Hygienic Pressure Transmitter with ±0.1% FS Accuracy, 316L SST Material, and 4-20mA HART® Communication
Rosemount 3051HT Hygienic Pressure Transmitter with ±0.1% FS Accuracy, 316L SST Material, and 4-20mA HART® Communication
Specifications
Brand Name :
Emerson Rosemount
Model Number :
3051HT
Certification :
CO
Place of Origin :
USA
MOQ :
1
Price :
200-2000
Payment Terms :
T/T
Supply Ability :
99PCS 4-6 WEEKS
Delivery Time :
5-7 WORK DAYS
Medium :
gas,liquid
Port :
Shanghai or Ningbo
Pressure Form :
Gauge G,Absolute A
Current Output :
4-20mA
Pressure Type :
Gauge / Absolute / Sealed Gauge
Thread :
NPT,G,ZG-1/2,M20*1.5 threaded connection
Temp Range :
0~(100-1200)℃
Process Connection :
1/2 inch NPT
Measuring Medium :
liquid, gas, steam
Accuracy :
±0.1% FS
Communication :
RS485
Temperature :
-40 to 104°c
Ambient Temperature :
(-40～80)℃
Voltage :
5±0.5VDc
Power Supply :
12-36 V DC
Description

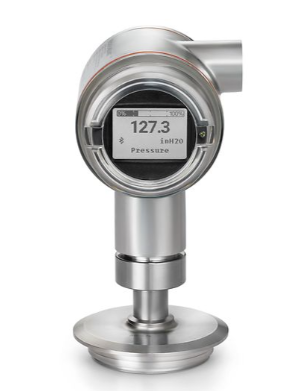

Rosemount 3051HT Hygienic Pressure Transmitter
A best-in-class transmitter solution for gage and absolute measurements in pharmaceutical, food, and beverage industries.
Product Specifications
Warranty Up to 1-year limited warranty
Rangedown Up to 100:1
Communication Protocol 4-20 MA HART®, FOUNDATION™ fieldbus, PROFIBUS® PA
Measurement Range Up to 800 psig (55.7 bar) gage
Up to 150 psia (10.3 bar) absolute
Process Wetted Material 316L SST mechanically polished and electropolished to Ra < 15 μ-in. (0.38 μ-m)
Diagnostics Basic Diagnostics, Process Alerts, Loop Integrity Diagnostics, Plugged Impulse Line Diagnostics
Certifications/Approvals 3A, EHEDG, ASME-BPE (see full specs for complete list)
Wireless Update Rate 1 sec. to 60 min., user selectable
Power Module Life Up to 10-year life, field replaceable (order separately)
Wireless Range Internal antenna (225 m)
Key Features
  • Hygienic design for pharmaceutical and food processing applications
  • High accuracy pressure measurement with extensive rangedown capability
  • Multiple communication protocol options for system integration
  • Advanced diagnostic capabilities for process monitoring
  • Industry-standard certifications for quality assurance
  • Long-life power module with field-replaceable design
Contact us for complete certification details and custom configuration options.
