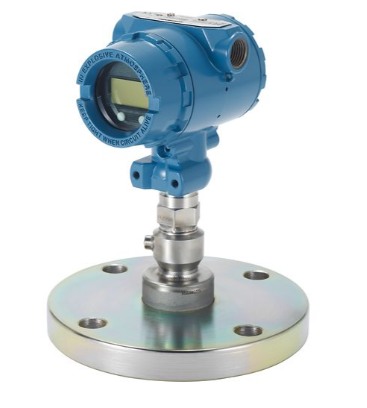

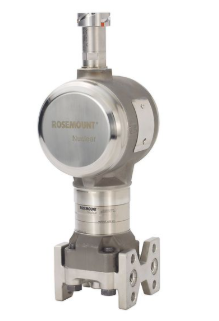

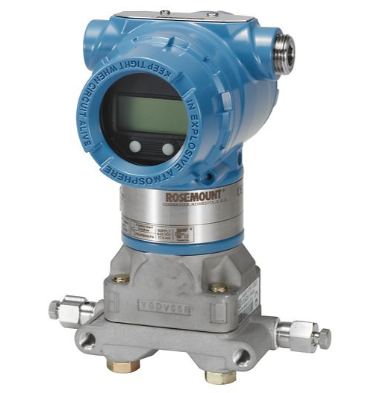

Rosemount 3155N Nuclear Qualified Pressure Transmitter
Rosemount 3155N Nuclear Qualified Pressure Transmitter
Rosemount 3155N Nuclear Qualified Pressure Transmitter
Rosemount 3155N Nuclear Qualified Pressure Transmitter
Rosemount 3155N Nuclear Qualified Pressure Transmitter
Rosemount 3155N Nuclear Qualified Pressure Transmitter
Specifications
Brand Name :
Emerson Rosemount
Model Number :
3155N
Certification :
CO
Place of Origin :
USA
MOQ :
1
Price :
200-2000
Payment Terms :
T/T
Supply Ability :
99PCS 4-6 WEEKS
Delivery Time :
5-7 WORK DAYS
Medium :
gas,liquid
Port :
Shanghai or Ningbo
Pressure Form :
Gauge G,Absolute A
Current Output :
4-20mA
Pressure Type :
Gauge / Absolute / Sealed Gauge
Thread :
NPT,G,ZG-1/2,M20*1.5 threaded connection
Temp Range :
0~(100-1200)℃
Process Connection :
1/2 inch NPT
Measuring Medium :
liquid, gas, steam
Accuracy :
±0.1% FS
Communication :
RS485
Temperature :
-40 to 104°c
Ambient Temperature :
(-40～80)℃
Voltage :
5±0.5VDc
Power Supply :
12-36 V DC
Description
Rosemount 3155N Nuclear Qualified Pressure Transmitter
Technical Specifications
Output Signal 4-20 mA
Rangedown Up To 10:1
Measurement Range Up to 2000 psi (13.79 MPa) Differential
Up to 4000 psig (27.58 MPa) Gage
Housing Material SST
Process Wetted Material 316L SST
Seismic Rating 8.5g ZPA Seismic
Radiation Rating 165 Mrad (1.65 kGy) TID Gamma Radiation
Steam/Pressure Temperature 437°F (225°C) Steam/Temperature
Qualification Standard IEEE Std 323™-1974/1983/2003
IEEE Std 344™ – 1975/1987/2004
Product Documentation
The Product Data Sheets and Manuals posted on this web-site are intended for general product information only, with errata included. They may not represent the latest revision or contain information relating to recent product notifications, if any.
Contact Information
Please contact Rosemount Nuclear Instruments, Inc. at 1-952-949-5200 or RNII.info@emerson.com for the most current information available.
