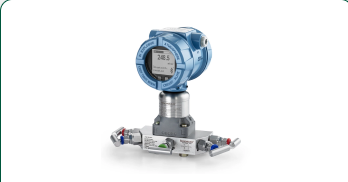

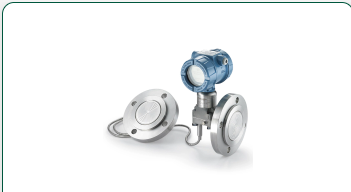

Rosemount Pressure Differential Transmitter IP65 / IP67 4-20 MA HART Protocol
Rosemount Pressure Differential Transmitter IP65 / IP67 4-20 MA HART Protocol
Rosemount Pressure Differential Transmitter IP65 / IP67 4-20 MA HART Protocol
Rosemount Pressure Differential Transmitter IP65 / IP67 4-20 MA HART Protocol
Rosemount Pressure Differential Transmitter IP65 / IP67 4-20 MA HART Protocol
Rosemount Pressure Differential Transmitter IP65 / IP67 4-20 MA HART Protocol
Specifications
Brand Name :
Rosemount
Model Number :
4051SCD1A2B21AB4M5
Certification :
CO
Place of Origin :
USA
MOQ :
1
Price :
USD2000-5000
Payment Terms :
T/T
Supply Ability :
99
Delivery Time :
5-7 work days
Protection rating :
IP65, IP67
Output signal :
4-20 mA, 0-10 V, Digital
Measurement range :
0 to 1000 psi
Accuracy :
±0.25% FS
Power supply :
12-36 VDC
Operating temperature :
-40°C to 85°C
Description
Rosemount Differential Pressure Transmitter 4051SCD1A2B21AB4M5
Accuracy

0.025% span accuracy

Warranty

1 year limited warranty

Range Capability

Up to 800:1 rangedown

Communication Protocol

4-20 mA HART® protocol

Measurement Range
  • Up to 2000 psi (137,89 bar) differential
  • Up to 10000 psig (689,47 bar) gage
  • Up to 10000 psia (689,47 bar) absolute
Diagnostics
  • Process Intelligence
  • Dedicated Plugged Impulse Line & Loop Integrity Diagnostic
  • Expanded Process Alerts
  • Basic Diagnostics
Process Wetted Materials
  • 316L Stainless Steel
  • Alloy C-276
  • Alloy 400
  • Tantalum
  • Gold-plated 316L Stainless Steel
  • Gold-plated Alloy 400
Certifications & Approvals
  • SIL 2/3 certified to IEC 61508 by an independent 3rd party
  • NSF
  • NACE®
  • Hazardous location certifications

See full specifications for complete list of certifications

Response Time

40 ms time constant
