Industrial Explosion-proof Temperature Controller Switch NEW-FLOW ETS5000 With SS316 Sensor
Industrial Explosion-proof Temperature Controller Switch NEW-FLOW ETS5000 With SS316 Sensor
Specifications
Model Number :
ETS5000 Explosion-proof temperature switch
Protectionrating :
IP65
Payment Terms :
T/T
Broken Pressure :
3XRP(rated pressure)
Protection Level :
IP65/ IP68
Supply Ability :
99pcs/2-4weeks
Measuring Range :
400 mbar... 400 bar
Voltage :
5±0.5VDc
MOQ :
1
Delivery Time :
2-4weeks
Wire :
2 wire(standard),3 or 5 wire optional
Connection :
1/2NPT 1/4NPT
Price :
298-580USD
Measure Range :
2 bar......600 bar
Protection Rating :
IP67
Operating Voltage :
110V, 220V, 240V
Packaging Details :
Export standard carton with shockproof inner foam
Supply :
1.5mAD
Certification :
CO
Stability :
0.2%/Year
Place of Origin :
China
Displaytype :
LCD Digital Display
Brand Name :
NEW-FLOW
Response Time :
< 10 ms
Description

Overview

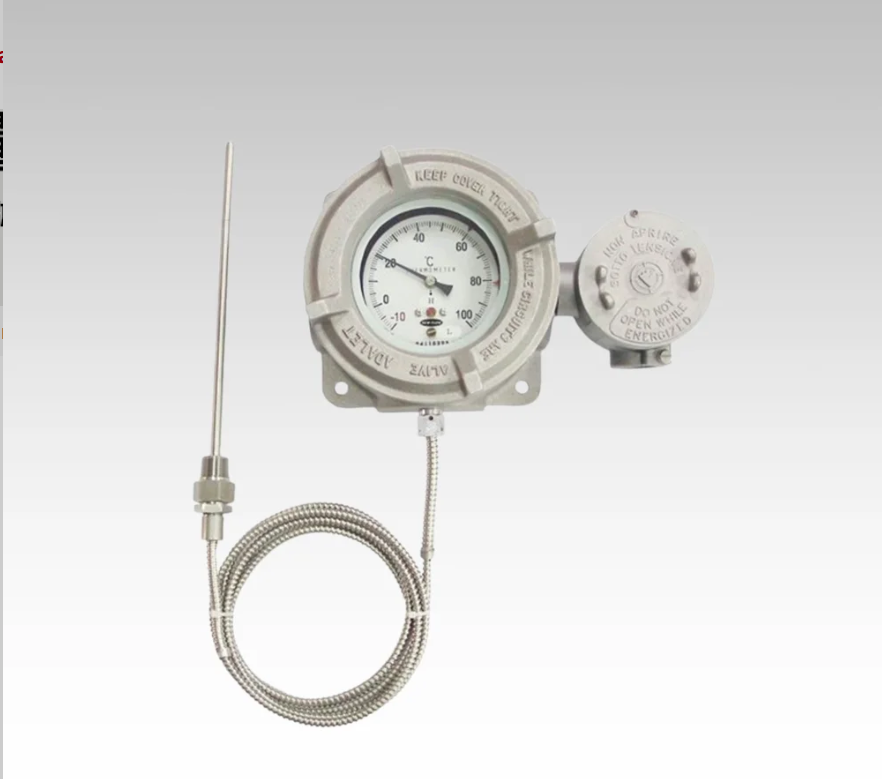

The NEW-FLOW ETS5000 Explosion-proof Temperature Switch is a capillary remote mechanical temperature controller specially designed for flammable, explosive hazardous working environments. Equipped with stainless steel 316 sensing bulb and heavy-duty die-cast aluminum explosion-proof enclosure, it realizes automatic circuit on/off when temperature hits preset value, providing reliable over-temperature alarm and equipment protection for oilfield, refinery, chemical reactor, underground mining machinery.

  • Full explosion-proof certification, applicable to Class I Div.1/2, Class II hazardous locations
  • SS316L wetted parts, anti-corrosion for oil, solvent, natural gas medium
  • Mechanical liquid/gas filled sensing system, no electronic component, strong anti-interference
  • Optional single / dual SPDT micro switch (5A/10A 250VAC)
  • Customizable capillary length (1m–30m), probe length & temperature range
  • IP65 waterproof & dustproof, vertical/horizontal installation available
  • Dial local temperature display, easy field calibration

    Item Standard Parameter
    Model NEW-FLOW ETS5000
    Type Capillary remote explosion-proof temperature switch
    Sensing Medium Liquid (ETS5000-L: -70~400℃) / Gas (ETS5000-G: -200~650℃)
    Wetted Material SS316 stainless steel bulb & capillary
    Explosion Grade Class I Groups B/C/D; Class II Groups E/F/G
    Micro Switch SPDT single / dual, AC250V 5A/10A
    Protection Class IP65
    Housing Die-cast aluminum alloy explosion shell
    Dial Size 6 inch local temperature indicator
    Capillary Custom Length 1m ~ 30m
    Process Connection 1/2" NPT / 3/4" NPT optional

    Application Scenarios

    • Petrochemical refineries, oil & gas pipeline equipment
    • Chemical reaction kettles, flammable solvent storage tanks
    • Coal mine underground hydraulic & transmission equipment
    • Explosion-proof motor, gearbox, hydraulic station overheat monitoring
    • Natural gas compressor, explosion-proof fan, paint workshop equipment
