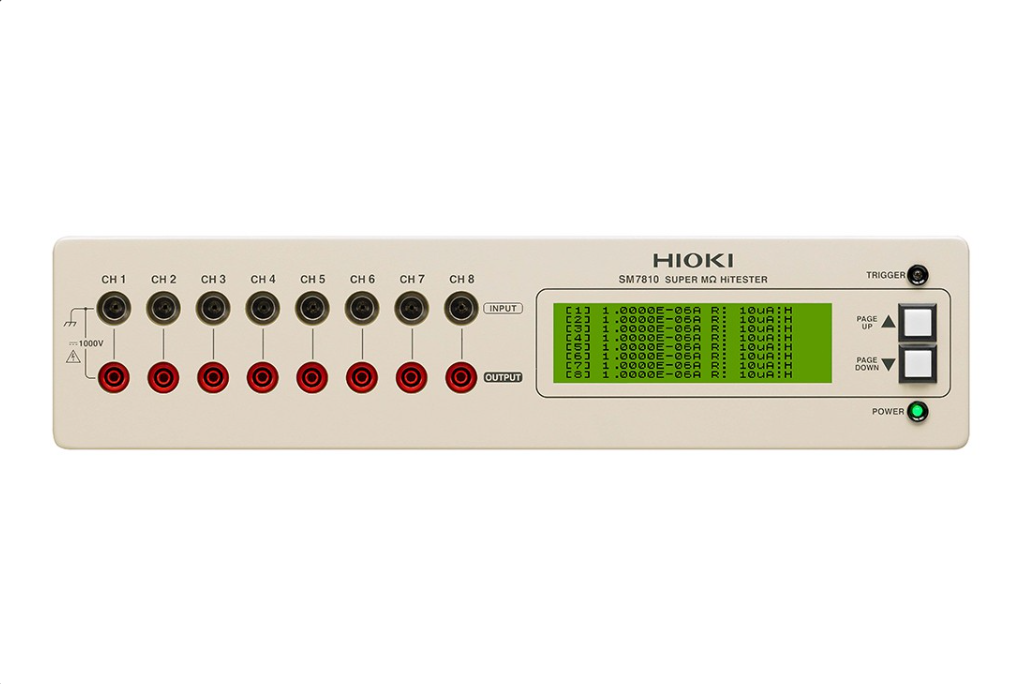

SM7810 Super MΩ HiTESTER is HIOKI flagship multi-channel ultra-high resistance measuring instrument, designed to solve high-speed, high-precision leakage current testing of multi-layer ceramic capacitors (MLCC) in mass production workshops.

It realizes synchronous parallel measurement of 8 independent channels with a minimum test cycle of only 6.8ms, greatly improving production line throughput. The ultra-wide measurement range covers tiny picoamp-level leakage current up to 1mA large current, and ultra-insulation resistance up to 10¹⁵Ω. Each channel can be set with separate test voltage, averaging and comparison judgment thresholds, adapting to mixed-spec MLCC simultaneous inspection. Built-in contact check function judges probe contact status via capacitance detection, effectively avoiding defective misjudgment caused by poor contact; jig capacitance&resistance open-circuit compensation eliminates fixture interference to guarantee stable test repeatability. Combined with SM7860 dedicated programmable power supply, it forms a complete high-speed MLCC automatic detection system, widely deployed in electronics component manufacturing factories worldwide.

1. 8 fully independent synchronous measurement channels, fastest 6.8ms single-cycle detection
2. Ultra-wide measuring range: Current 1pA ~ 1mA; Resistance 1×10²Ω ~ 1×10¹⁵Ω
3. Test voltage 0.1V~1000.0V with 0.1V high resolution, supplied by external SM7860 power unit
4. Contact check function to identify poor probe contact and prevent false pass/fail results
5. Jig capacitance & resistance open-circuit compensation to remove fixture measurement interference
6. Multi-speed measurement modes: FAST / MED / SLOW / SLOW2 for different precision requirements
7. Built-in comparison judgment function, output HI/IN/LO pass/fail signal for automation sorting
8. Multi communication interfaces: GP-IB, RS-232C, EXT I/O for PLC & industrial PC linkage
9. Independent parameter configuration for each channel, support mixed specification component testing
10. Two power input versions: SM7810 (100/110V AC) / SM7810-20 (220V AC)

MLCC multi-layer ceramic capacitor leakage current mass production testing, electronic component ultra-insulation resistance inspection, semiconductor material high impedance characteristic measurement, thin film resistor high resistance value detection, automotive electronic insulation component reliability aging test, laboratory ultra-faint current scientific research measurement.
