Specifications
Brand Name :
Chitwing
Model Number :
Camera No.CWM23058
Certification :
ISO 9001:2015
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 set/month
Delivery Time :
30 day(s)
Packaging Details :
The mold is packaged with a wooden box and placed on a wood pallet.
Size :
320.000 X 350.000 X 316.000
IMM Tonnage :
180T
Mold Weight :
222kg
Injection Runner System :
Cold runner
Mould life :
≥500000 shots
Mould base :
LKM
Mould material :
Harden（1*4/S136）
Surface treatment :
Polishing
Design software :
3D-UG 4.0/ 2D-CAD
structure :
Fixed Cavity + Movable Side + Runner Stripper Plate + runner plate
Description

Transparent glasses middle bracket (1*2)

No.23058-B

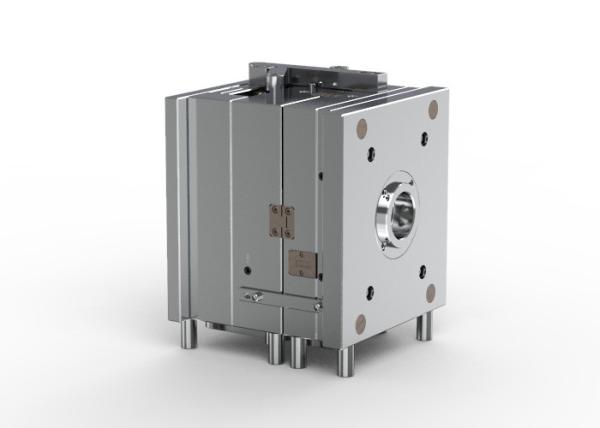

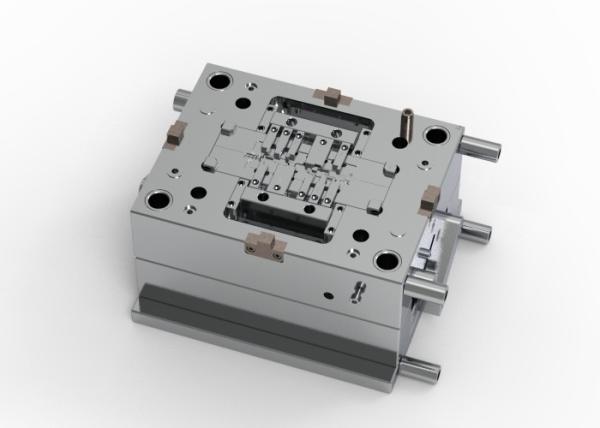

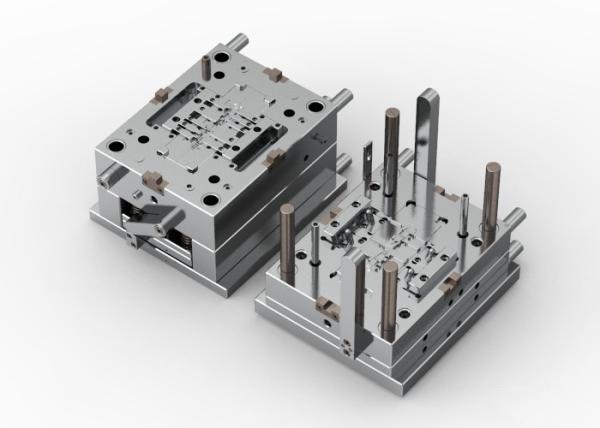

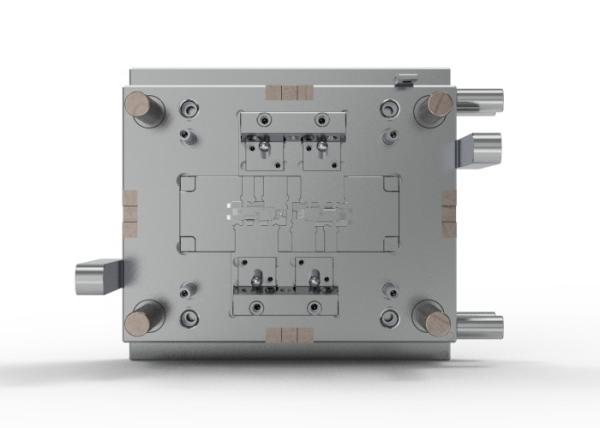

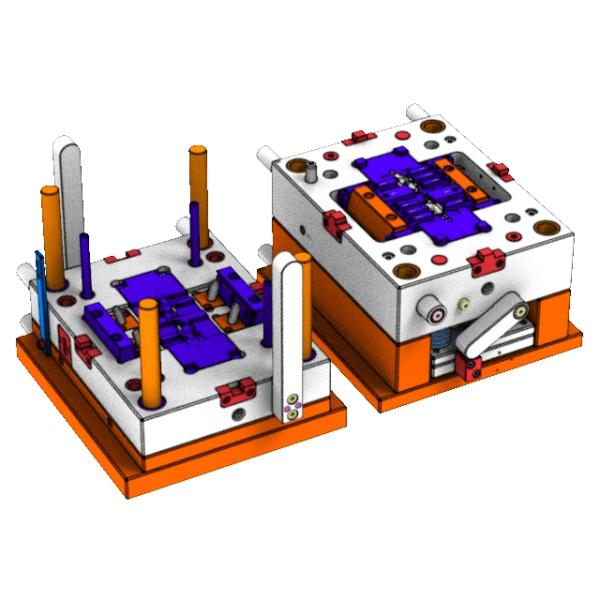

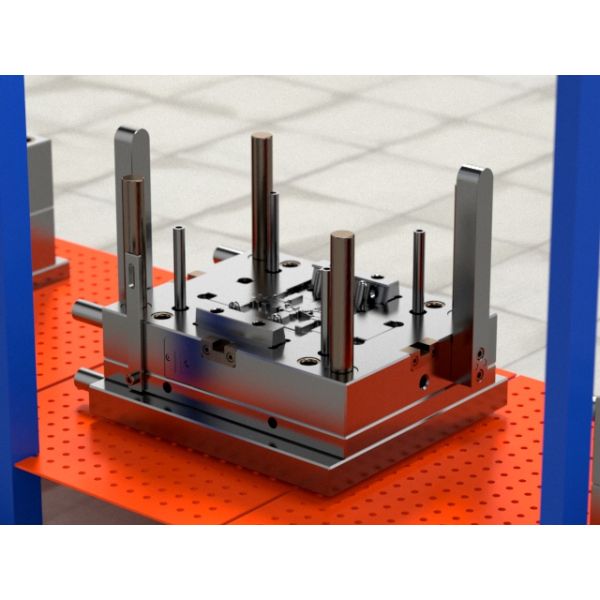

This mold is a three-plates mold with a mold base of FCI2735 609080. It follows the LKM standard and has a size of L 320mm X W 350mm X H 316mm. The mold features 5 slides and 2 lifters, contributing to its functionality. The net weight of the mold is 222kg.
The required IMM tonnage for this mold is 180T, and it utilizes a Cold Runner injection/runner type. The mold is designed to provide a smooth surface and precise details for the molded parts. This is achieved through a surface finish that includes VDI24 etching and polishing with 800# sandpaper. These treatments improve the mold surface glossiness and reduce pits, ensuring that the molded parts have a smooth surface and do not stick to the mold.

OEM / ODM ： Cold Runner Injection Molding & Transparent Glasses Middle Bracket 1*2 No.23058-B

The cavity steel is hardened with 1*2/S136, which enhances the mold's hardness, anti-wearing, and anti-corrosion performance. It also extends the tool life of the mold, allowing for up to 500k shots.
The mold steel used is also hardened with 1*2/S136, further contributing to its durability and performance.

OEM / ODM ： Cold Runner Injection Molding & Transparent Glasses Middle Bracket 1*2 No.23058-B

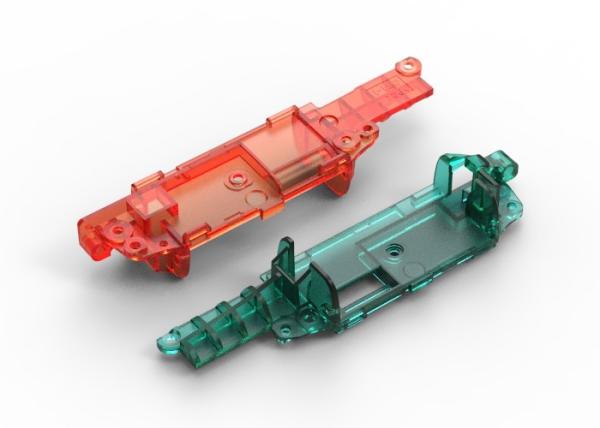

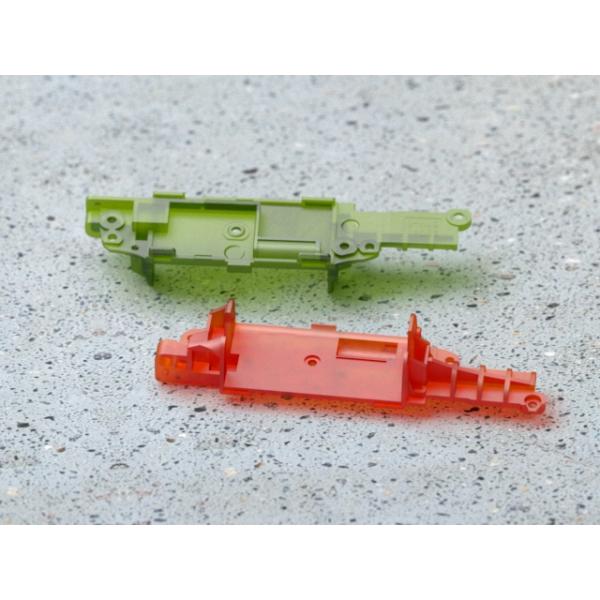

The injection part material for this mold is PC, and the weight of the injection part is 1.5g. The size of the injection part is 16.20 X 66.25 X 11.50mm.

OEM / ODM ： Cold Runner Injection Molding & Transparent Glasses Middle Bracket 1*2 No.23058-B

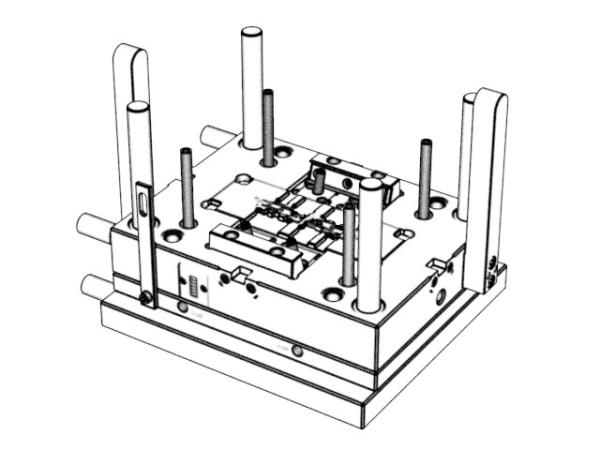

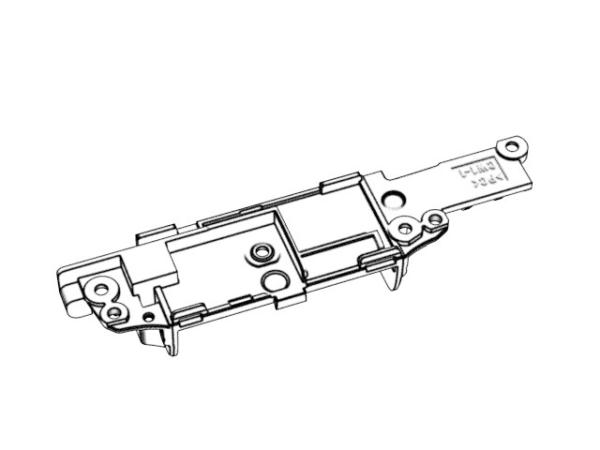

Display diagram

OEM / ODM ： Cold Runner Injection Molding & Transparent Glasses Middle Bracket 1*2 No.23058-BOEM / ODM ： Cold Runner Injection Molding & Transparent Glasses Middle Bracket 1*2 No.23058-BOEM / ODM ： Cold Runner Injection Molding & Transparent Glasses Middle Bracket 1*2 No.23058-BOEM / ODM ： Cold Runner Injection Molding & Transparent Glasses Middle Bracket 1*2 No.23058-B
