Specifications
Brand Name :
Chitwing
Model Number :
Camera
Certification :
ISO 9001:2015
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 set/month
Delivery Time :
30 day(s)
Packaging Details :
The mold is packaged with a wooden box and placed on a wood pallet.
Size :
320.000 X 350.000 X 316.000
IMM Tonnage :
180T
Mold Weight :
222kg
Mold base :
FCI2735 609080
Standard :
LKM
Features :
5 slides & 2 lifters
Type :
three-plates mold
Gate :
Pin point gate
Part weight :
1.5g
Injection/Runner Type :
Cold Runner
Slide :
5
Lifter :
2
Part material :
PC
Part size :
16.20 X 66.25 X 11.50mm
Description

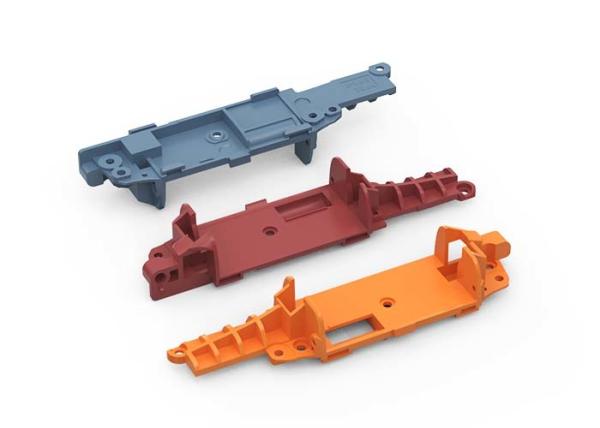

Bracket in glasses (1*2)

No.23058-B

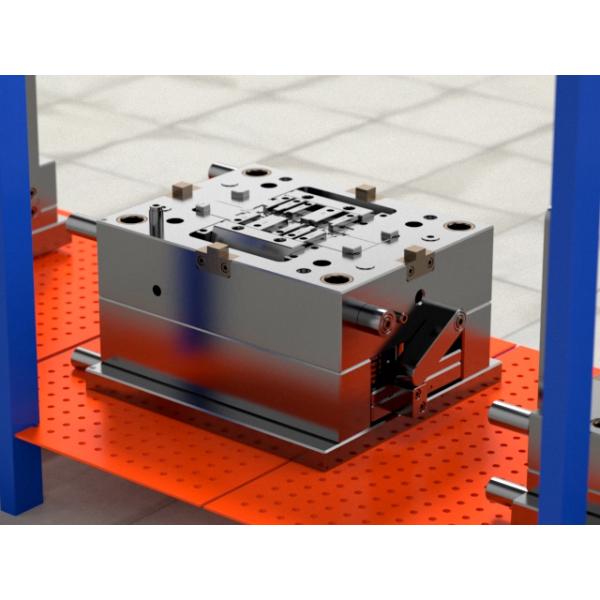

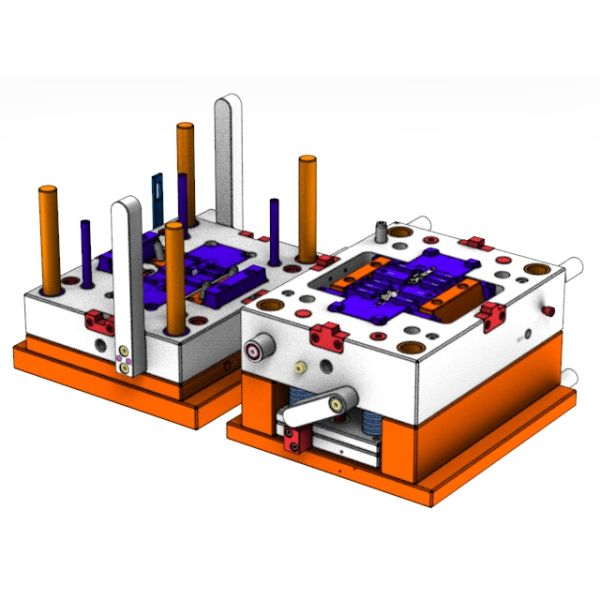

This mold embodies sophistication as a three-plates mold, boasting a mold base of FCI2735 609080. Adhering to the esteemed LKM standard, it showcases dimensions of L 320mm x W 350mm x H 316mm. With a weight of 222kg, it demands an impressive IMM tonnage of 180T. Notably, this mold showcases 5 slides and 2 lifters, ensuring effortless demolding. Its ingenious design comprises a core, cavity, and discharge plate, accompanied by a flexible gate and self-degating mechanism, resulting in flawlessly molded parts devoid of conspicuous gate marks.

OEM / ODM ： Cold Runner Injection Molding & Bracket In Glasses 1*2 No.23058-B

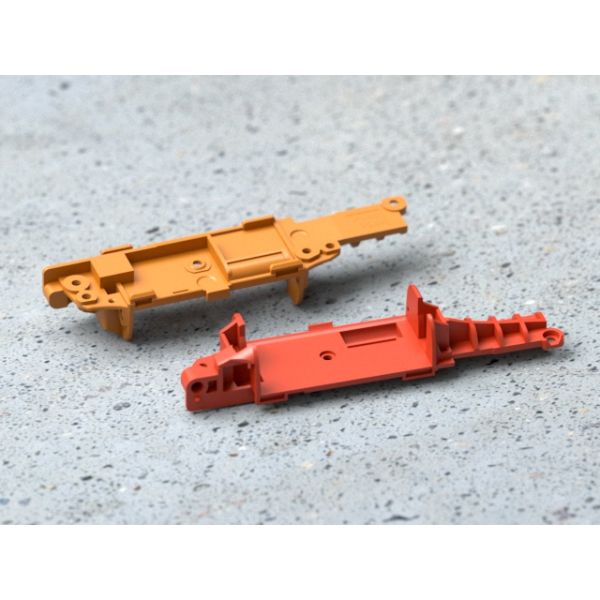

Employing a pin point gate, this mold offers unparalleled flexibility in gate positioning. The melt utilized exhibits exceptional fluidity and withstands high temperatures, culminating in impeccably molded parts boasting remarkable clarity and a lustrous finish. The injection part material of choice is PC, while the injection part itself measures L16.2mm x W66.25mm x H11.5mm. With a weight of a mere 1.5g, this injection part exemplifies precision and finesse.

OEM / ODM ： Cold Runner Injection Molding & Bracket In Glasses 1*2 No.23058-B

The chosen injection/runner type for this mold is the esteemed Cold Runner system. To enhance its durability and resistance to wear and corrosion, the cavity and core are meticulously hardened with 1*2/S136 steel, boasting superior hardness and exceptional anti-wearing and anti-corrosion properties.
In terms of surface finish, meticulous attention has been given to ensure optimal results. One surface of the mold undergoes a meticulous VDI24 etching process, while the other surface is meticulously polished using 800# sandpaper. These meticulous surface treatments elevate the mold's surface glossiness, ultimately leading to impeccably smooth and flawless parts.

OEM / ODM ： Cold Runner Injection Molding & Bracket In Glasses 1*2 No.23058-B

Display diagram

OEM / ODM ： Cold Runner Injection Molding & Bracket In Glasses 1*2 No.23058-BOEM / ODM ： Cold Runner Injection Molding & Bracket In Glasses 1*2 No.23058-BOEM / ODM ： Cold Runner Injection Molding & Bracket In Glasses 1*2 No.23058-BOEM / ODM ： Cold Runner Injection Molding & Bracket In Glasses 1*2 No.23058-B
