Specifications
Brand Name :
Chitwing
Model Number :
Camera
Certification :
ISO 9001:2015
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 set/month
Delivery Time :
30 day(s)
Packaging Details :
The mold is packaged with a wooden box and placed on a wood pallet.
Size :
320.000 X 350.000 X 316.000
IMM Tonnage :
180T
Mold Weight :
222kg
Mold base :
FCI2735 609080
Standard :
LKM
Features :
5 slides & 2 lifters
Type :
three-plates mold
Gate :
Pin point gate
Part weight :
1.5g
Injection/Runner Type :
Cold Runner
Slide :
5
Lifter :
2
Part material :
PC
Part size :
16.20 X 66.25 X 11.50mm
Description

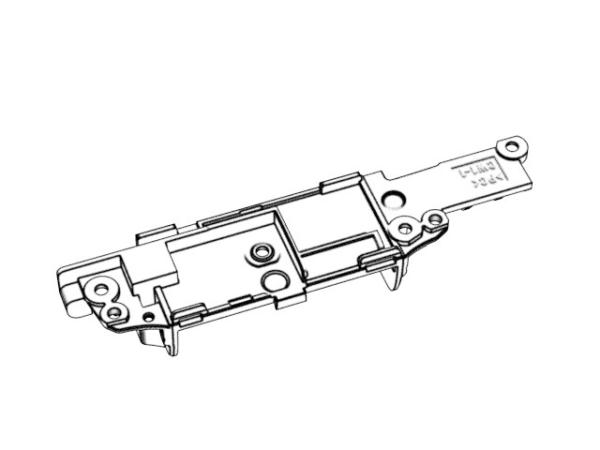

Bracket in glasses (1*2)

No.23058

[Mold base]: FCI2735 609080
[Size]: L 320mm | W 350mm | H 316mm
[Standard]: LKM		 [Mold weight]:
222kg

OEM / ODM ：Precision Machining Molds / Bracket in glasses (1*2) No.23058

☆ [IMM tonnage]: 180T


☆ [Features]: 5 slides & 2 lifters (easy to demold)


☆ [Type]: three-plates mold

(composed of core, cavity and discharge plate, with flexible gate,

self-degating, no obvious gate marks)


☆ [Gate]: Pin point gate

(flexible gate position, the melt has strong fluidity and high temperature,

and the molded parts have clear details and high glossiness)

OEM / ODM ：Precision Machining Molds / Bracket in glasses (1*2) No.23058

☆ [Part material]: PC
☆ [Size]: L16.2mm | W66.25mm | H11.5mm | ☆ [Part weight]: 1.5g

OEM / ODM ：Precision Machining Molds / Bracket in glasses (1*2) No.23058

[Injection/Runner Type]: Cold Runner


[Steel of cavity and core]: harden with 1*2/S136
(The mold has higher hardness, anti-wearing and anti-corrosion performance)

[Surface finish]:
① A surface VDI24 etch
② A surface polished to 800# sandpaper
(Improve mold surface glossiness for better part smoothness)

Display diagram

OEM / ODM ：Precision Machining Molds / Bracket in glasses (1*2) No.23058OEM / ODM ：Precision Machining Molds / Bracket in glasses (1*2) No.23058OEM / ODM ：Precision Machining Molds / Bracket in glasses (1*2) No.23058OEM / ODM ：Precision Machining Molds / Bracket in glasses (1*2) No.23058
