Specifications
Brand Name :
Chitwing
Model Number :
Camera
Certification :
ISO 9001:2015
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 set/month
Delivery Time :
30 day(s)
Packaging Details :
The mold is packaged with a wooden box and placed on a wood pallet.
Size :
280.000 X 270.000 X 296.000
IMM Tonnage :
140T
Mold Weight :
132kg
Mold base :
Standard mold base FCI2327 608080
Type :
Three plates mold
Features :
2 slide & 4 lifter
Steel of cavity :
harden with 1+1/S136
Steel of core :
harden with 1+1/S136
Description

Transparent glasses camera

housing+bracket (1+1)

No.23055-B

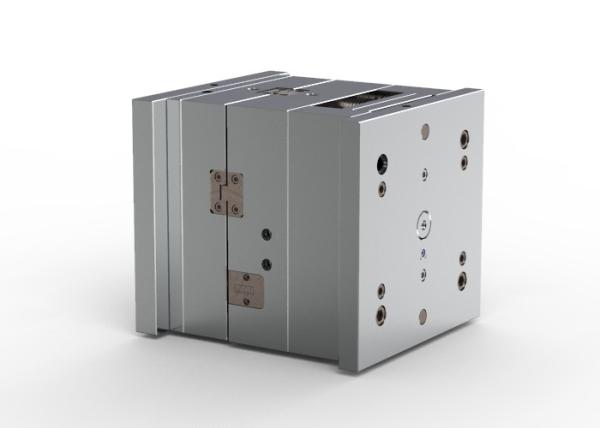

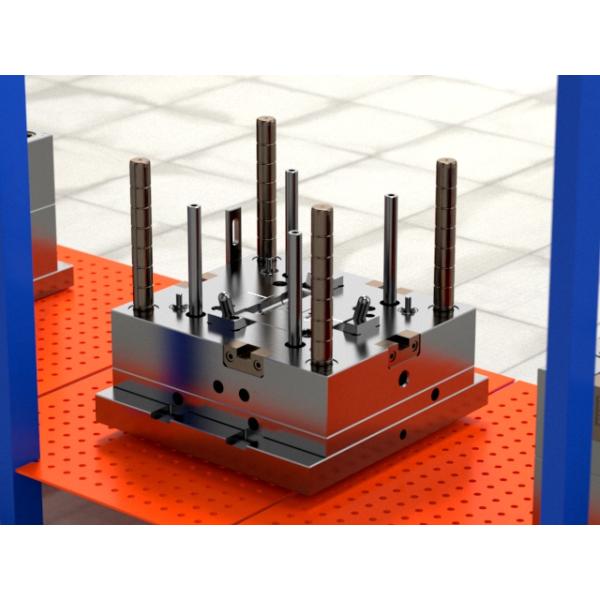

The mold is a three-plates mold with a size of 280mm in length, 270mm in width, and 296mm in height. It is based on the standard mold base P/N: FCI2327 608080 and follows the LKM standard. The mold has a net weight of 132 kg and is suitable for an injection molding machine with a tonnage of 140T. It has a tool life of up to 500k shots.

OEM / ODM ： Cold Runner Injection Molding & Transparent Glasses Camera Housing+Bracket 1+1 No 23055-B

The gate used in the mold is a sub gate.
For the surface finish, the housing has an A surface VDI24 etch and the inner surface is EDM with VDI24# (Charmilles). The bracket has an A surface EDM with VDI27# (Makino) and the gluing surface is EDM with VDI21# (Makino).

OEM / ODM ： Cold Runner Injection Molding & Transparent Glasses Camera Housing+Bracket 1+1 No 23055-B

The part material used in the mold is PC, and the cavity and core steel are hardened with 1+1/S136. The injection/runner type is a cold runner.

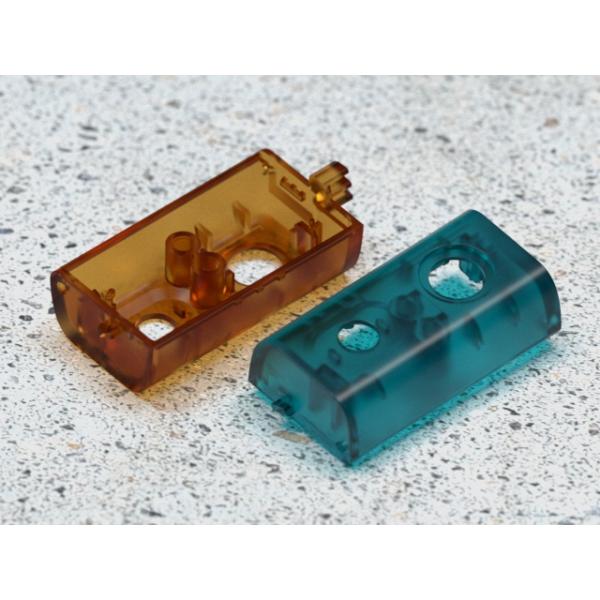

The part produced by the mold has a weight of 2g. It comes in two sizes: 33.80 X 17.26 X 11.08mm and 27.83 X 14.94 X 4.90mm.

OEM / ODM ： Cold Runner Injection Molding & Transparent Glasses Camera Housing+Bracket 1+1 No 23055-B

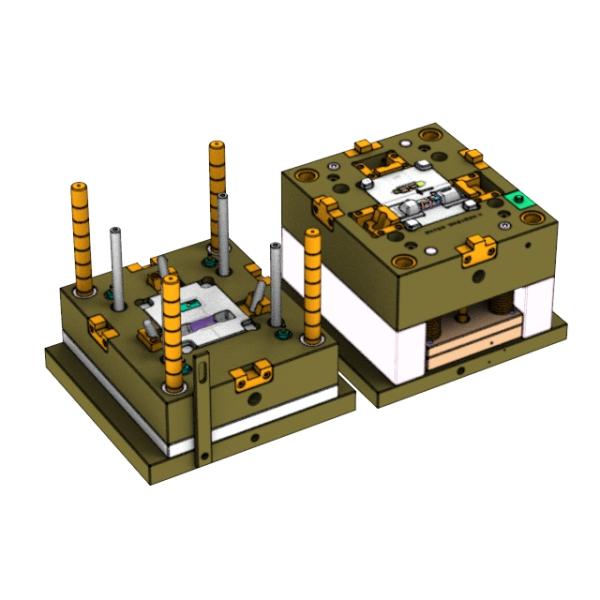

Display diagram

OEM / ODM ： Cold Runner Injection Molding & Transparent Glasses Camera Housing+Bracket 1+1 No 23055-BOEM / ODM ： Cold Runner Injection Molding & Transparent Glasses Camera Housing+Bracket 1+1 No 23055-BOEM / ODM ： Cold Runner Injection Molding & Transparent Glasses Camera Housing+Bracket 1+1 No 23055-BOEM / ODM ： Cold Runner Injection Molding & Transparent Glasses Camera Housing+Bracket 1+1 No 23055-B
