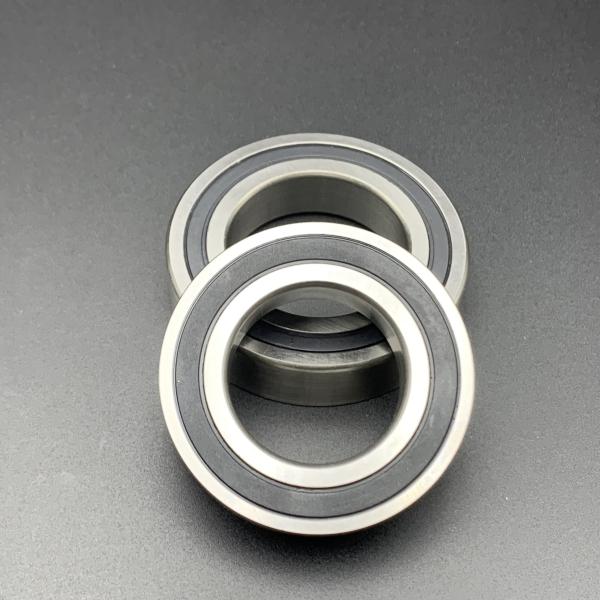

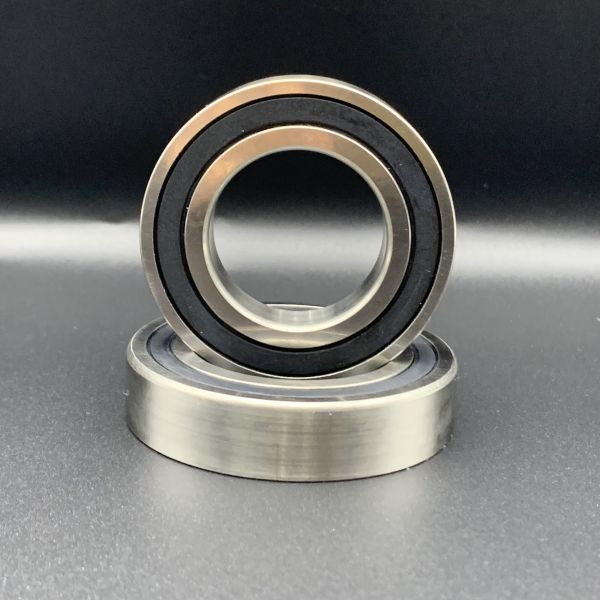

H7008C-2RZ P4A Precision Angular Contact Ball Bearing with High-Speed Capability and 15° Contact Angle for CNC Spindles
H7008C-2RZ P4A Precision Angular Contact Ball Bearing with High-Speed Capability and 15° Contact Angle for CNC Spindles
H7008C-2RZ P4A Precision Angular Contact Ball Bearing with High-Speed Capability and 15° Contact Angle for CNC Spindles
H7008C-2RZ P4A Precision Angular Contact Ball Bearing with High-Speed Capability and 15° Contact Angle for CNC Spindles
H7008C-2RZ P4A Precision Angular Contact Ball Bearing with High-Speed Capability and 15° Contact Angle for CNC Spindles
H7008C-2RZ P4A Precision Angular Contact Ball Bearing with High-Speed Capability and 15° Contact Angle for CNC Spindles
H7008C-2RZ P4A Precision Angular Contact Ball Bearing with High-Speed Capability and 15° Contact Angle for CNC Spindles
H7008C-2RZ P4A Precision Angular Contact Ball Bearing with High-Speed Capability and 15° Contact Angle for CNC Spindles
Specifications
Tolerance Class :
P4A
Lubrication :
Grease
Interchangeable With :
SKF
Brand Name :
OEM
Model Number :
7008C-2RZ P4A Precision Angular Contact Ball Bearing
Certification :
IATF16949:2016
Place of Origin :
China
MOQ :
100
Price :
Please contact us
Supply Ability :
200000pcs per month
Packaging Details :
plastic bag,box,carton,pallet
Type :
Angular Contact Ball Bearing
Logo :
As per customers' requirements
Matched Arrangement :
2 Bearings
Preload :
light
Part Number :
H7008C-2RZ P4A Precision Angular Contact Ball Bearing
Seals Type :
2RZ
Contact Angle :
C 15°
Delivery Time :
30 days
Description
CNC Machine Spindle Bearings H7008C-2RZ P4A Angular Contact Bearing
H7008C-2RZ P4A Precision Angular Contact Ball Bearing Speed Spindle Bearings CNC
Design Features

The H7008C-2RZ P4A Precision Angular Contact Ball Bearing uses high-quality materials and precise manufacturing techniques. Built for high-speed spindles and precision instruments, it ensures accurate and fast operation. This bearing provides excellent performance and reliability in critical applications.

Bearing Number Dimensions(mm) Basic Load Rating(N) Limiting Speed(rpm) Weight(Kg)
7008C-2RZ 40×68×15 9300/8400 22000 0.22
Technical Specifications
Ring Material Steel
Roller Material Steel, Ceramic available
Cage Material Bakelite Phenolic
Contact Angle 15°, 25° & 40° available
Lubrication Required
Matched Arrangement Available
Preload Available
Number in Matched Set 2
Universal Matching Yes, DB, DF, DT
Temperature Range -30°C to +110°C
ABEC Rating P4 (ABEC7), P5, P2 available
Certification RoHS, IATF16949:2016
Load Direction Angular Contact
Service OEM & ODM Customized
H7008C-2RZ P4A Precision Angular Contact Ball Bearing with High-Speed Capability and 15° Contact Angle for CNC Spindles
H7008C-2RZ P4A Precision Angular Contact Ball Bearing with High-Speed Capability and 15° Contact Angle for CNC Spindles
Key Design Features
  • Dimensions: Bore Diameter: 40 mm, Outer Diameter: 68 mm, Width: 15 mm
  • Material Quality: Crafted from high-quality materials for durability and reliability
  • Precision Manufacturing: Manufactured to extremely tight tolerances for superior dimensional accuracy
  • High-Speed Capability: Optimized for high-speed operation with minimal heat generation and friction
  • Load Capacity: Capable of handling both radial and axial loads efficiently
  • Preload Options: Available with various preload options to enhance stiffness and reduce play
  • Surface Finish: Superior surface finish reduces noise and extends service life

This bearing is an essential component in industries that demand high precision and performance, including machine tool spindles, high-speed machinery, aerospace components, medical equipment, semiconductor manufacturing, automotive industry, and scientific instruments.
