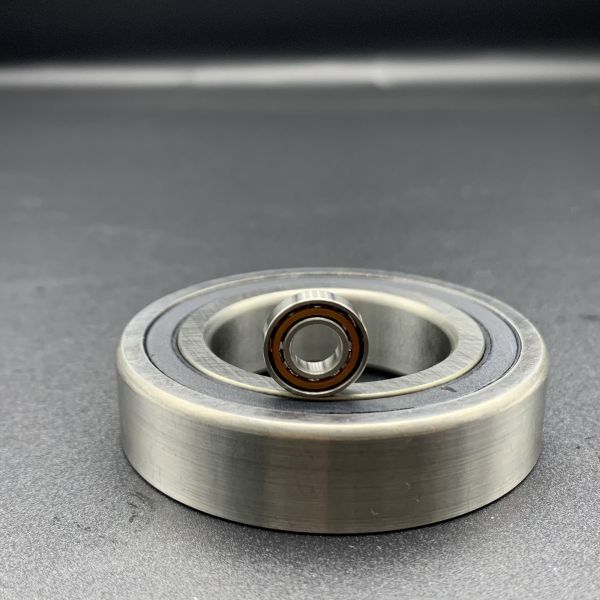

7008C-2RZ P4A Precision Angular Contact Ball Bearing 40x68x15mm Sealed 2RZ for High-Speed Spindles
7008C-2RZ P4A Precision Angular Contact Ball Bearing 40x68x15mm Sealed 2RZ for High-Speed Spindles
7008C-2RZ P4A Precision Angular Contact Ball Bearing 40x68x15mm Sealed 2RZ for High-Speed Spindles
7008C-2RZ P4A Precision Angular Contact Ball Bearing 40x68x15mm Sealed 2RZ for High-Speed Spindles
7008C-2RZ P4A Precision Angular Contact Ball Bearing 40x68x15mm Sealed 2RZ for High-Speed Spindles
7008C-2RZ P4A Precision Angular Contact Ball Bearing 40x68x15mm Sealed 2RZ for High-Speed Spindles
7008C-2RZ P4A Precision Angular Contact Ball Bearing 40x68x15mm Sealed 2RZ for High-Speed Spindles
7008C-2RZ P4A Precision Angular Contact Ball Bearing 40x68x15mm Sealed 2RZ for High-Speed Spindles
Specifications
Matched Arrangement :
2 Bearings
Delivery Time :
30 days
Tolerance Class :
P4A
Contact Angle :
15° C angle
Lubrication :
Grease
Part Number :
7008C-2RZ P4A Precision Angular Contact Ball Bearing
Type :
Angular Contact Ball Bearing
Seals Type :
Sealed 2RZ
Preload :
Extra light
Brand Name :
OEM
Model Number :
7008C-2RZ P4A Precision Angular Contact Ball Bearing
Certification :
IATF16949:2016
Place of Origin :
China
MOQ :
100
Price :
Please contact us
Supply Ability :
100000pcs per month
Packaging Details :
plastic bag,box,carton,pallet
Description
7008C-2RZ P4A High Precision Ball Bearings Single Row 40x68x15mm
Product Overview

7008C-2RZ P4A Super Precision Angular Contact Ball Bearing Single Row 40x68x15mm

Design Features

The 7008C-2RZ P4A Super Precision Angular Contact Bearing uses high-quality materials and precise manufacturing methods. It's perfect for high-speed spindles and precision instruments where accuracy and fast operation are essential. This bearing provides excellent performance and reliability in challenging conditions.

Technical Specifications
Bearing Number Dimensions (mm) Basic Load Rating (N) Limiting Speed (rpm) Weight (Kg)
7008C-2RZ 40×68×15 9300 / 8400 22000 0.22
Detailed Specifications
Ring Material Steel
Roller Material Steel, Ceramic available
Cage Material Bakelite Phenolic
Contact Angle 15°, 25° & 40° available
Lubrication Required
Matched Arrangement Available
Preload Available
Number Of Bearings In Matched Set 2
Universal Matching Bearing Yes, DB, DF, DT (Back to Back, Face to Face, Tandem)
Temperature Range -30°C ~ +110°C
ABEC Rating P4 (ABEC7) P5, P2 available
CERTIFICATE RoHS, IATF16949:2016
For Load Direction Angular Contact
Service OEM & ODM Customized Services
Samples Please Contact Us
Service Online Support, Professional Service
Size Standard, For custom sizes, please contact us
Factory Manufacturer Yes
7008C-2RZ P4A Precision Angular Contact Ball Bearing 40x68x15mm Sealed 2RZ for High-Speed Spindles 7008C-2RZ P4A Precision Angular Contact Ball Bearing 40x68x15mm Sealed 2RZ for High-Speed Spindles
Key Design Features
  • Dimensions: Bore Diameter: 40 mm, Outer Diameter: 68 mm, Width: 15 mm
  • Material Quality: Crafted from high-quality materials to ensure durability and reliability under demanding conditions
  • Precision Manufacturing: Manufactured to extremely tight tolerances, ensuring superior dimensional and geometric accuracy
  • High-Speed Capability: Optimized for high-speed operation with minimal heat generation and friction
  • Load Capacity: Capable of handling both radial and axial loads efficiently
  • Preload Options: Available with various preload options to enhance stiffness and reduce play
  • Surface Finish: Superior surface finish on raceways and rolling elements reduces noise and extends service life
Applications

This bearing is an essential component in industries that demand high precision and performance, including machine tool spindles, high-speed machinery, aerospace components, medical equipment, semiconductor manufacturing, automotive industry, and scientific instruments.
