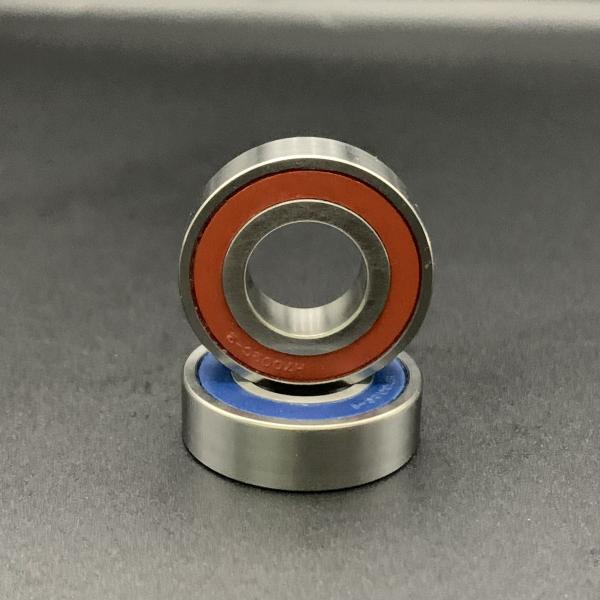

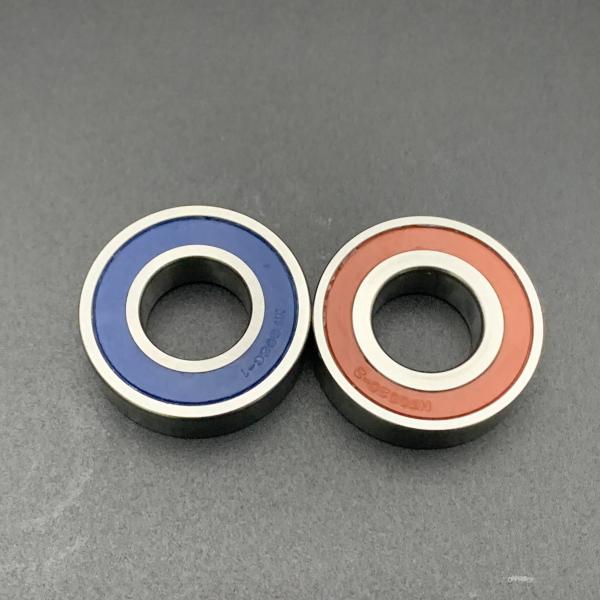

H7002C-2RZ P4 Precision Angular Contact Ball Bearing 15x32x9mm 2RZ Sealed for High-Speed Spindle Tools
H7002C-2RZ P4 Precision Angular Contact Ball Bearing 15x32x9mm 2RZ Sealed for High-Speed Spindle Tools
H7002C-2RZ P4 Precision Angular Contact Ball Bearing 15x32x9mm 2RZ Sealed for High-Speed Spindle Tools
H7002C-2RZ P4 Precision Angular Contact Ball Bearing 15x32x9mm 2RZ Sealed for High-Speed Spindle Tools
Specifications
Part Number :
H7002C-2RZ P4 Precision Angular Contact Ball Bearings
Brand Name :
OEM
Model Number :
7002C-2RZ P4 Precision Angular Contact Ball Bearing
Certification :
IATF16949:2016
Place of Origin :
China
MOQ :
100
Price :
Please contact us
Supply Ability :
500000pcs per month
Delivery Time :
30 days
Packaging Details :
plastic bag,box,carton,pallet
Seals Color :
Blue and Red
Interchangeable With :
SKF
Contact Angle :
C/15°
Tolerance :
P4 / ABEC-7
Lubrication :
Grease
Sealed Type :
2RZ Sealed
Preload :
Light
Description
H7002C-2RZ P4 Angular Contact Ball Bearing 15x32x9 For Speed Spindle Tool
Product Overview

H7002C-2RZ P4 Precision Angular Contact Ball Bearings 15x32x9mm Speed Spindle Tool

Design Features

The H7002C-2RZ P4 Precision Angular Contact Ball Bearing utilizes premium materials and state-of-the-art manufacturing processes. Designed for applications requiring high speed and precision, such as speed spindle tools in carving machines, this bearing offers superior performance and dependable operation.

Technical Specifications
Bearing Number Dimensions (mm) Basic Load Rating (N) Limiting Speed (rpm) Weight (Kg)
H7002C-2RZ 15×32×9 3600 (Dynamic)
2300 (Static)		 60000 (Grease) 0.03
Material Specifications
Ring Material: Imported Premium-Grade Bearing Steel (803 Q, Sweden)
Roller Material: Imported Japanese AKS Steel Balls, Grade G2, or Imported Saint-Gobain Ceramic Balls, Grade G2
Cage Material: Bakelite Cage or PEEK High-strength Cage
Contact Angle: 15°, 25° & 40° available
Temperature Range: -30°C ~ +110°C
ABEC Rating Precision: P4 (ABEC7) P5, P2 available
Certification: RoHS, IATF16949:2016
Configuration Options
Matched Arrangement: Available
Number in Matched Set: 2 pcs/set
Universal Matching: Yes, DB, DF, DT (Back to Back, Face to Face, Tandem)
Preload: Available
Lubrication: Grease as Agreement
H7002C-2RZ P4 Precision Angular Contact Ball Bearing 15x32x9mm 2RZ Sealed for High-Speed Spindle Tools
H7002C-2RZ P4 Precision Angular Contact Ball Bearing 15x32x9mm 2RZ Sealed for High-Speed Spindle Tools
Key Design Features
  • Dimensions: Bore Diameter: 15 mm, Outer Diameter: 32 mm, Width: 9 mm
  • Material Quality: Crafted from high-quality materials for durability and reliability
  • Precision Manufacturing: Manufactured to extremely tight tolerances for superior dimensional accuracy
  • High-Speed Capability: Optimized for high-speed operation with minimal heat generation
  • Load Capacity: Capable of handling both radial and axial loads efficiently
  • Preload Options: Various preload options to enhance stiffness and reduce play
  • Surface Finish: Superior surface finish reduces noise and extends service life
Applications & Services

This bearing is essential in industries demanding high precision and performance, including machine tool spindles, high-speed machinery, aerospace components, medical equipment, semiconductor manufacturing, automotive industry, and scientific instruments.

Service: OEM & ODM Customized Services
Samples: Available upon request
Support: Online Support, Professional Service
Size Options: Standard sizes available, custom sizes upon request
Manufacturer: Factory direct, company visits welcome
