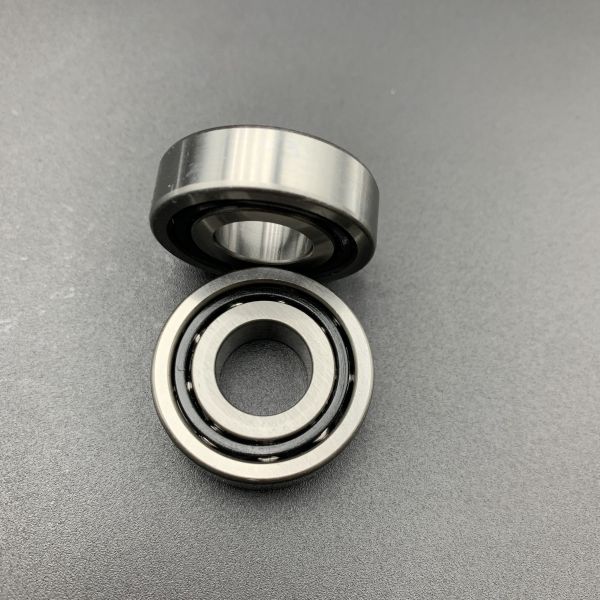

7001AC Precision Ball Bearing 12X28X8mm P4 Precision High-Speed Capable Angular Contact CNC Spindle Bearing
7001AC Precision Ball Bearing 12X28X8mm P4 Precision High-Speed Capable Angular Contact CNC Spindle Bearing
7001AC Precision Ball Bearing 12X28X8mm P4 Precision High-Speed Capable Angular Contact CNC Spindle Bearing
7001AC Precision Ball Bearing 12X28X8mm P4 Precision High-Speed Capable Angular Contact CNC Spindle Bearing
7001AC Precision Ball Bearing 12X28X8mm P4 Precision High-Speed Capable Angular Contact CNC Spindle Bearing
7001AC Precision Ball Bearing 12X28X8mm P4 Precision High-Speed Capable Angular Contact CNC Spindle Bearing
7001AC Precision Ball Bearing 12X28X8mm P4 Precision High-Speed Capable Angular Contact CNC Spindle Bearing
7001AC Precision Ball Bearing 12X28X8mm P4 Precision High-Speed Capable Angular Contact CNC Spindle Bearing
Specifications
Tolerance :
P4 / ABEC-7,P5,P6 Precision Available
Interchangeable With :
SKF/ NTN/ NSK etc
Part Number :
7001AC Precision Angular Contact Ball Bearings
Contact Angle :
AC/25°，15 ° and 40° Available
Lubrication :
Oil or Grease
Brand Name :
OEM
Model Number :
7001AC Precision Angular Contact Ball Bearings1
Certification :
IATF16949:2016
Place of Origin :
China
MOQ :
100
Price :
Please contact us
Supply Ability :
500000pcs per month
Delivery Time :
30 days
Packaging Details :
plastic bag,box,carton,pallet
Preload :
Light Preload
Old Old Model :
46101
Sealed Type :
Open, or ZZ/ 2RS Sealed
Description
7001AC Precision Ball Bearings Single Row 12X28X8mm CNC Spindle Ball Bearing
Product Overview

7001AC Precision Angular Contact Ball Bearings Single Row 12X28X8mm CNC Spindle - Built using high-quality materials and precision manufacturing for high-speed spindles, precision tools, and applications where accuracy and speed are critical.

Bore Diameter: 12 mm
Outer Diameter: 28 mm
Width: 8 mm
Technical Specifications
Bearing Number Inner Diameter (d) Outer Diameter (D) Width (B) Dynamic (Cr) Static (Cor) Weight
7001AC 12 mm 28 mm 8 mm 5200 N 2550 N 0.020 Kg
Ring Material: Superior-Grade GCr15
Roller Material: High Precision Steel Ball G5
Cage Material: Bakelite Cage or PEEK High-strength Cage
Contact Angle: 25°, 15° & 40° available
Lubrication: Oil or Grease
Temperature Range: -30°C to +110°C
ABEC Rating: ABEC7 (P4, or P5, P2 available)
Certifications: RoHS, IATF16949:2016
7001AC Precision Ball Bearing 12X28X8mm P4 Precision High-Speed Capable Angular Contact CNC Spindle Bearing 7001AC Precision Ball Bearing 12X28X8mm P4 Precision High-Speed Capable Angular Contact CNC Spindle Bearing
Key Benefits
  • Exceptional Precision: Built to tight tolerances (P4 or P4A class), ideal for CNC machines and medical devices requiring high precision
  • High-Speed Capabilities: Designed for high-speed use with minimal friction and heat, suitable for aerospace and precision manufacturing
  • Enhanced Rigidity and Stability: Handles axial and radial loads effectively, perfect for robotic arms and semiconductor equipment
  • Advanced Material Use: Made from top-quality materials that resist wear and perform well at high temperatures
  • Efficient Cooling: Reduces internal friction and dissipates heat efficiently, extending service life and improving performance
Applications
  • Aerospace Components: Ideal for gyroscopes, actuators, and jet engine components where exactness and stability are paramount
  • Machine Tool Spindles: Perfect for CNC machines and precision grinders, ensuring high-speed operation with pinpoint accuracy
  • High-Speed Machinery: Suitable for drills and milling machines requiring high-speed rotation without performance compromise
  • Medical Equipment: Found in high-speed medical devices such as dental drills and imaging equipment for consistent, precise operation
  • Semiconductor Manufacturing: Essential in semiconductor production equipment for reliable and accurate wafer processing
Additional Services

Matched Arrangement: Available (2 pcs/set)

Universal Matching: Yes, DB, DF, DT (Back to Back, Face to Face, Tandem)

Preload: Available

Custom Services: OEM & ODM Customized Services available

Samples: Please Contact Us for Details

Size Options: Standard sizes available, custom sizes upon request

Manufacturer: Factory direct, welcome to visit our company
