7000AC P4 Precision Angular Contact Ball Bearing 10x26x8mm High-Speed CNC Spindle Bearing
7000AC P4 Precision Angular Contact Ball Bearing 10x26x8mm High-Speed CNC Spindle Bearing
7000AC P4 Precision Angular Contact Ball Bearing 10x26x8mm High-Speed CNC Spindle Bearing
7000AC P4 Precision Angular Contact Ball Bearing 10x26x8mm High-Speed CNC Spindle Bearing
7000AC P4 Precision Angular Contact Ball Bearing 10x26x8mm High-Speed CNC Spindle Bearing
7000AC P4 Precision Angular Contact Ball Bearing 10x26x8mm High-Speed CNC Spindle Bearing
7000AC P4 Precision Angular Contact Ball Bearing 10x26x8mm High-Speed CNC Spindle Bearing
7000AC P4 Precision Angular Contact Ball Bearing 10x26x8mm High-Speed CNC Spindle Bearing
Specifications
Interchangeable With :
SKF or NTN or NSK etc
Sealed Type :
Open, or ZZ/ 2RS Sealed Available
Tolerance :
P4 / ABEC-7,P5,P6 Class
Old Old Model :
461010
Preload :
Light.
Part Number :
7000AC Precision Angular Contact Ball Bearings
Brand Name :
OEM
Model Number :
7000AC Precision Angular Contact Ball Bearings1
Certification :
IATF16949:2016
Place of Origin :
China
MOQ :
100
Price :
Please contact us
Supply Ability :
500000pcs per month
Delivery Time :
30 days
Packaging Details :
plastic bag,box,carton,pallet
Contact Angle :
AC/25°，or C/15 °,B/ 40°
Lubrication :
Oil or Grease as Requirement
Description
7000AC Single Row Precision Ball Bearings Angular Contact 10×26×8mm Bearing
Product Overview

7000AC Precision Angular Contact Ball Bearings Single Row 10×26×8mm CNC Spindle

The 7000AC Bearing is built using high-quality materials and precision manufacturing. This super-precise angular contact ball bearing is perfect for high-speed spindles, precision tools, and any application where accuracy and speed really matter.

Dimensions & Specifications
Bore Diameter: 10 mm
Outer Diameter: 26 mm
Width: 8 mm
Bearing Number Dimensions (mm) Basic Load Rating (N) Limiting Speed (rpm) Weight (Kg)
Inner Diameter Outer Diameter Width Chamfer Dynamic Static Grease Oil
7000AC 10 26 8 0.3 0.15 4750 2120 19000 28000 0.018
Technical Specifications
Ring Material: Superior-Grade GCr15
Roller Material: High Precision Steel Ball G5
Cage Material: Bakelite Cage or PEEK High-strength Cage
Contact Angle: 25°, 15° & 40° available
Lubrication: Oil or Grease As Agreement
Temperature Range: -30°C ~ +110°C
Precision Class: ABEC7 (P4, or P4A, P5, P2 available)
Certification: RoHS, IATF16949:2016

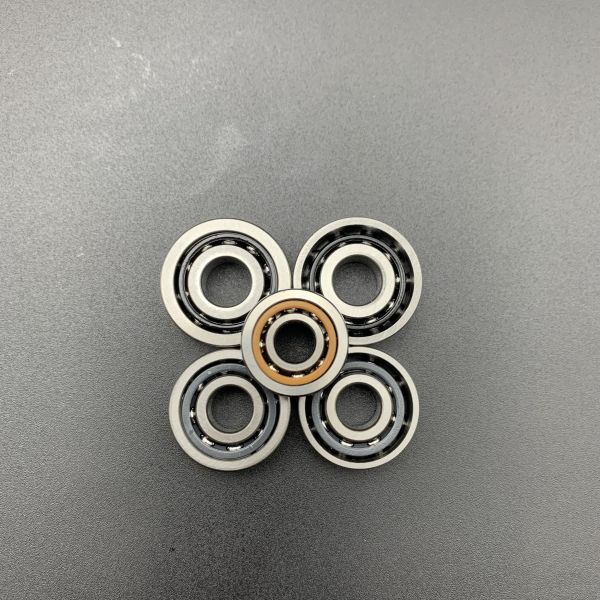

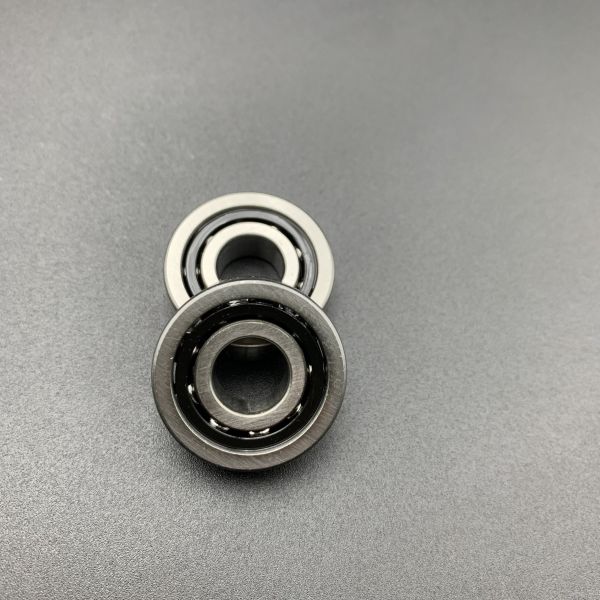

Product Images
7000AC P4 Precision Angular Contact Ball Bearing 10x26x8mm High-Speed CNC Spindle Bearing 7000AC P4 Precision Angular Contact Ball Bearing 10x26x8mm High-Speed CNC Spindle Bearing 7000AC P4 Precision Angular Contact Ball Bearing 10x26x8mm High-Speed CNC Spindle Bearing
Key Benefits
Exceptional Precision

Highly Accurate: Built to tight tolerances (P4 or P4A class), ideal for CNC machines and medical devices needing high precision.

High-Speed Capabilities

Fast and Efficient: Designed for high-speed use with minimal friction and heat, suitable for aerospace and precision manufacturing.

Enhanced Rigidity and Stability

Robust Load Handling: Handles axial and radial loads well, perfect for robotic arms and semiconductor equipment.

Efficient Cooling

Effective Heat Management: Reduces internal friction and dissipates heat efficiently, extending its life and improving performance.

Applications
Aerospace Components

Perfect for aerospace parts like gyroscopes, actuators, and jet engines, where precision and reliability are critical.

Machine Tool Spindles

Ideal for CNC machines and precision grinders, ensuring tools run at high speeds with exceptional accuracy.

High-Speed Machinery

Suitable for equipment such as drills and milling machines that need to rotate at high speeds without sacrificing performance.

Semiconductor Manufacturing

Essential for semiconductor manufacturing equipment, guaranteeing accurate wafer processing with fast and dependable performance.

Medical Equipment

Used in high-speed medical devices like dental drills and imaging machines, ensuring reliable and accurate operation.

Customization & Support: Available for OEM & ODM customized services. Contact us for samples, custom sizes, and professional technical support. Factory manufacturer welcomes visits.
