7002AC P4 Precision Angular Contact Ball Bearing 15x32x9mm High-Speed Capable for CNC Spindles
7002AC P4 Precision Angular Contact Ball Bearing 15x32x9mm High-Speed Capable for CNC Spindles
7002AC P4 Precision Angular Contact Ball Bearing 15x32x9mm High-Speed Capable for CNC Spindles
7002AC P4 Precision Angular Contact Ball Bearing 15x32x9mm High-Speed Capable for CNC Spindles
7002AC P4 Precision Angular Contact Ball Bearing 15x32x9mm High-Speed Capable for CNC Spindles
7002AC P4 Precision Angular Contact Ball Bearing 15x32x9mm High-Speed Capable for CNC Spindles
7002AC P4 Precision Angular Contact Ball Bearing 15x32x9mm High-Speed Capable for CNC Spindles
7002AC P4 Precision Angular Contact Ball Bearing 15x32x9mm High-Speed Capable for CNC Spindles
Specifications
Part Number :
7002AC P4 DU Precision Angular Contact Ball Bearing
Tolerance :
P4 / ABEC-7
Sealed Type :
Open also available with metal shields (ZZ) or rubber seals (2RS)
Packing :
As Agreement
Preload :
Light
Lubrication :
Grease
Interchangeable With :
SKF, NTN, NSK etc
Brand Name :
OEM
Model Number :
7002AC P4 DU Precision Angular Contact Ball Bearing
Certification :
IATF16949:2016
Place of Origin :
China
MOQ :
100
Price :
Please contact us
Supply Ability :
500000pcs per month
Delivery Time :
30 days
Packaging Details :
plastic bag,box,carton,pallet
Contact Angle :
AC/25°
Description
OEM 7002AC P4 DU Precision Angular Contact Ball Bearing Single Row Open Linear Brg
Product Overview

The 7002AC P4 DU Precision Angular Contact Ball Bearings Single Row Open Linear Brg is engineered for high-performance applications requiring exceptional precision and speed capabilities.

Design Features

The 7002 ACD/P4A Bearing is manufactured using high-quality materials and precision engineering. This super-precise angular contact ball bearing is ideal for high-speed spindles, precision tools, and applications where accuracy and speed are critical.

Bearing Number Inner Diameter (d) Outer Diameter (D) Width (B) Dynamic Cr (N) Static Cor (N) Weight (Kg)
7002AC 15 mm 32 mm 9 mm 5950 3250 0.028
Ring Material
Superior-Grade GCr15
Roller Material
High Precision Steel Ball G5
Cage Material
Bakelite Cage or PEEK High-strength Cage
Contact Angle
25°, 15° & 40° available
Lubrication
Oil
Temperature Range
-30°C ~ +110°C
ABEC Rating Precision
P4 (ABEC7) P5, P2 available
Certifications
RoHS, IATF16949:2016

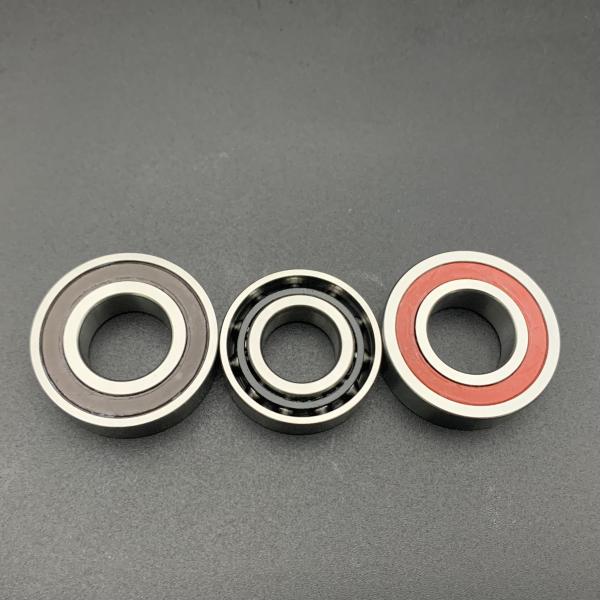

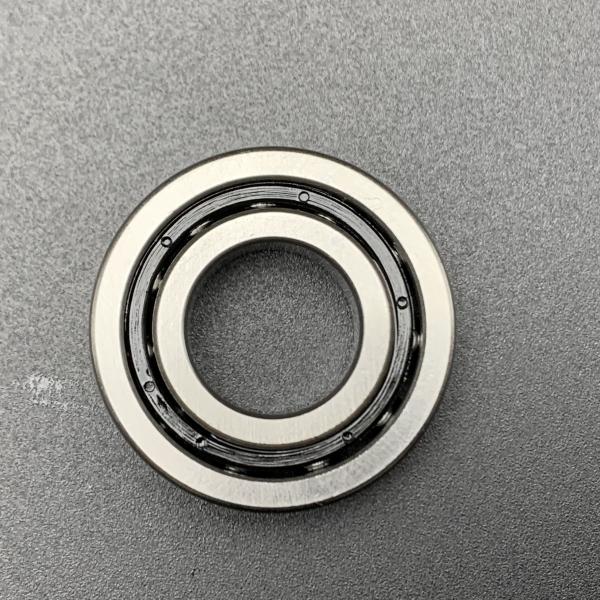

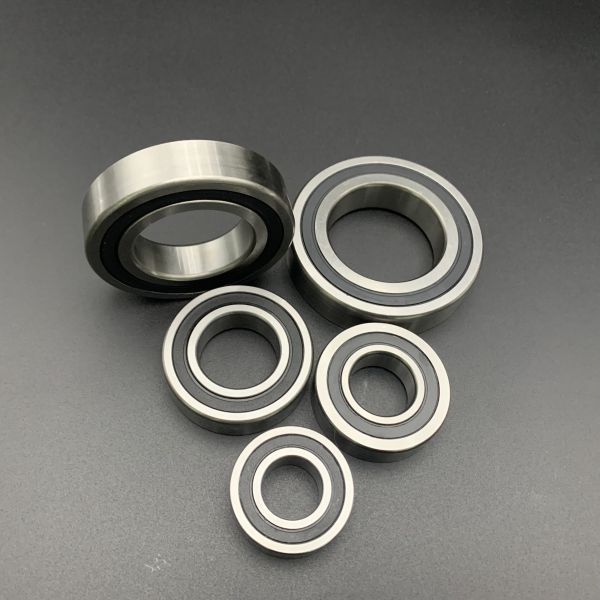

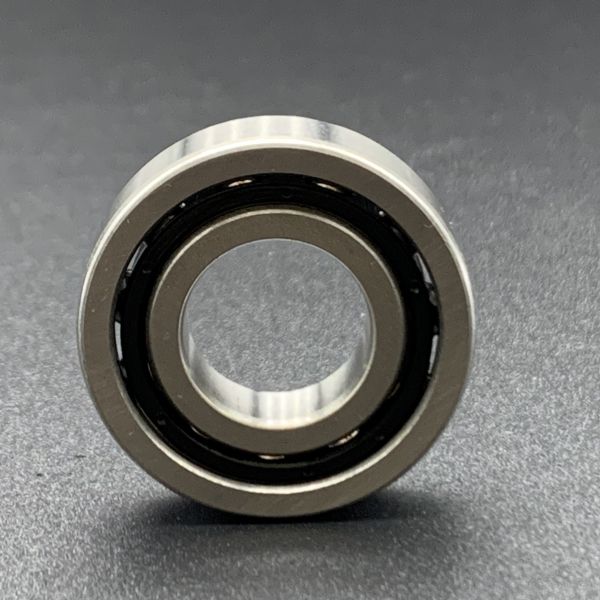

Product Images
7002AC P4 Precision Angular Contact Ball Bearing 15x32x9mm High-Speed Capable for CNC Spindles 7002AC P4 Precision Angular Contact Ball Bearing 15x32x9mm High-Speed Capable for CNC Spindles
Key Benefits
• Exceptional Precision: Built to very tight tolerances (P4A class), ensuring it runs incredibly accurately.
• High-Speed Capabilities: Designed to spin really fast with minimal friction and heat.
• Enhanced Rigidity and Stability: Strong enough to handle both axial and radial loads, staying stable even under tough conditions.
• Advanced Material Use: Uses high-quality materials that last long, resist wear, and perform well at high speeds and temperatures.
• Low Friction and Heat Dissipation: Engineered to reduce internal friction and dissipate heat efficiently, helping the bearing last longer.
Applications

The 7002 AC P4 DU Bearing excels in applications where precision, speed, and reliability are critical. Common uses include:

  • Machine Tool Spindles: Perfect for CNC machines and precision grinders, ensuring tools run fast and accurately.
  • High-Speed Machinery: Ideal for equipment like drills and milling machines that need to spin at high speeds.
  • Aerospace Components: Used in parts like gyroscopes, actuators, and jet engine components where precision and stability are crucial.
  • Medical Equipment: Found in high-speed medical devices like dental drills and imaging equipment.
  • Semiconductor Manufacturing: Essential in semiconductor production equipment where precision and speed are critical for accurate wafer processing.
Additional Services
Matched Arrangement
Available
Preload
Available
Universal Matching
Yes, DB, DF, DT (Back to Back, Face to Face, Tandem)
Samples
Please Contact Us for Details
Custom Sizes
Available upon request
Manufacturer
Factory Direct, Welcome Visit Our Company
