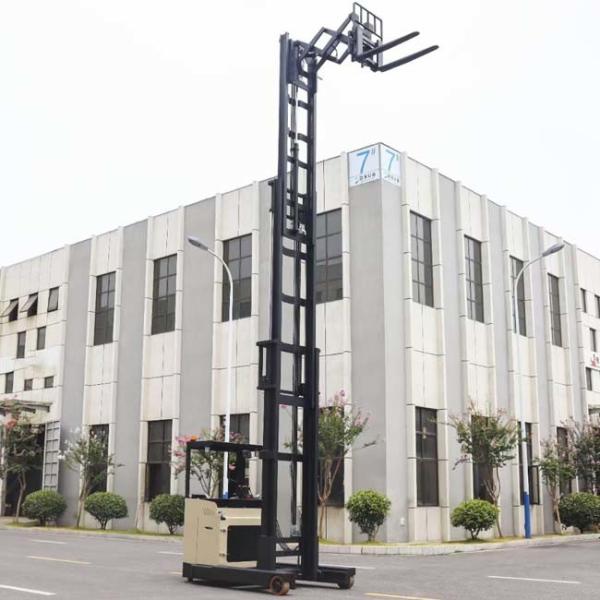

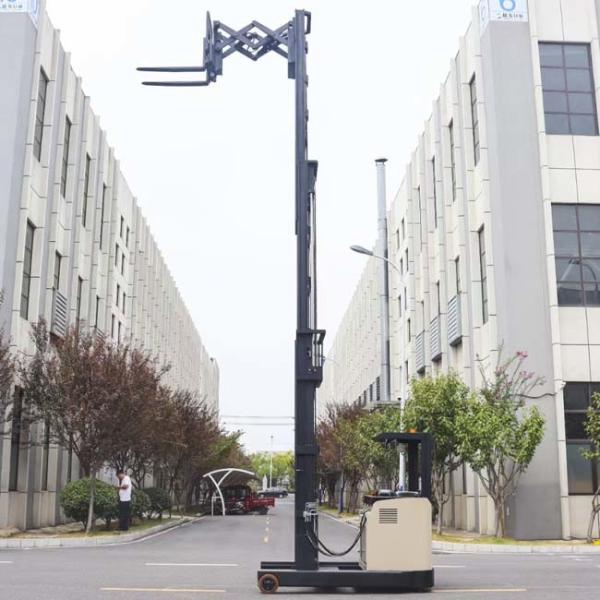

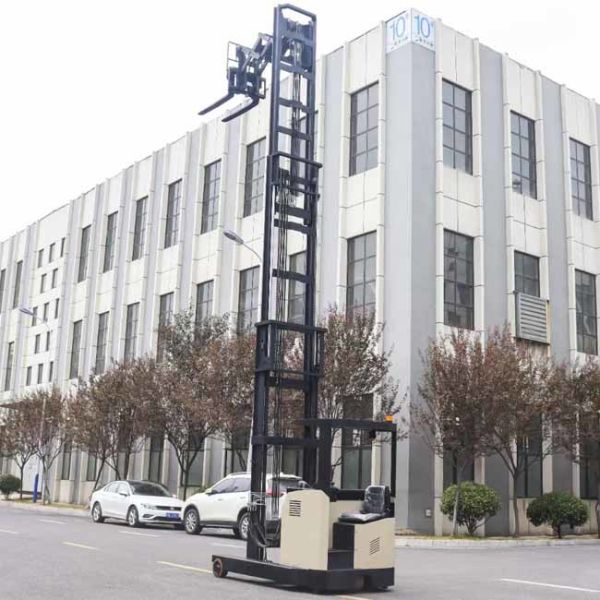

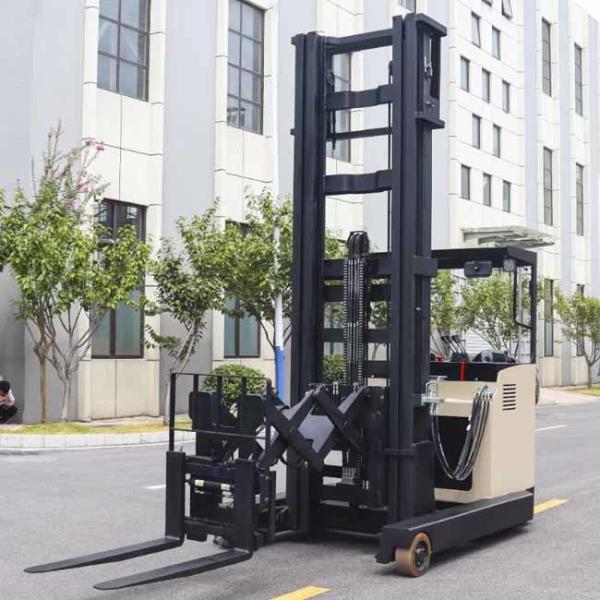

Seating Type CQD16JS 1.6T Electric Scissors Reach Forklift Triplex Mast
Seating Type CQD16JS 1.6T Electric Scissors Reach Forklift Triplex Mast
Seating Type CQD16JS 1.6T Electric Scissors Reach Forklift Triplex Mast
Seating Type CQD16JS 1.6T Electric Scissors Reach Forklift Triplex Mast
Seating Type CQD16JS 1.6T Electric Scissors Reach Forklift Triplex Mast
Seating Type CQD16JS 1.6T Electric Scissors Reach Forklift Triplex Mast
Seating Type CQD16JS 1.6T Electric Scissors Reach Forklift Triplex Mast
Seating Type CQD16JS 1.6T Electric Scissors Reach Forklift Triplex Mast
Specifications
Brand Name :
YEAWEY
Model Number :
CQD16J
Certification :
CE ISO，SGS
Place of Origin :
China
MOQ :
1 unit
Price :
6000-7500 usd
Payment Terms :
L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability :
100 units per month
Delivery Time :
5-8 working days
Packaging Details :
Plastic bag
Product name :
1.6T Electric Scissors Reach Forklift seated type
Load capacity :
1600 kgs
Lift height :
4500-9000mm
Mast type :
Triplex
Battery :
48V/300Ah
Service weight :
3540 kgs
Description

1600kg CQD16JS 1.6T Electric Scissors Reach Forklift seating type Triplex mast

Main information:

Curtis controller

AC lift and drive motor

Lift height 4.5m to 9m

Lead acid or lithium battery

Seating type

The YEAWEY Lead acid / Lithium battery stand reach truck adopts four columns for cabin to penetrate the frame which is both beautiful and safe.Wide field of vision and driving space along with high elastic shock-absorbing seats provide a unique driving pleasure.

Stable operation

Elector-hydraulic proportional control system, good fretting performance, more stable work and more precise control.

Spacious foot space

Spacious foot space allows any operator to find a comfortable position and ensures adequate comfort during operation throughout the shift.

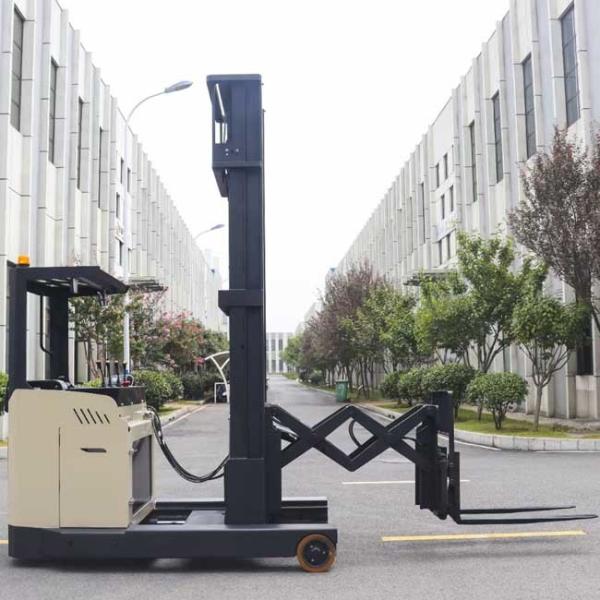

Stable mast

High-precision forward sliding rails and excellent clearance compensation design make the mast more stable during reach application.

Stable mast

The high-precision forward sliding rail and excellent clearance compensation design make the forward movement of the masts more stable.

Item Model CQD16JS
1 Power type Electric
2 Drive mode Standing Type
3 Load capacity Q(Kg) 1600
4 Load center C(mm) 500
5 Wheel base Y(mm) 1562
6 Self weight with battery kg 3540
7 Tire type Pu solid tire
8 Rear tire sise ∅×w(mm) Ф382*142
9 Front tire size ∅×w(mm) Ф145*100
10 Balance wheel size ∅×w(mm) Ф180*76
11 Number of the wheels(Front wheel/X=Driving Wheel,balance wheel/bearing wheel) 4/2X/2
12 Track width, front wheels b10(mm) 1562
13 Height-Mast lowered h1(mm) 3050
14 Lift Height h3(mm) 4500
15 The maximum height of the gantry during homework h4(mm) 5585
16 The geight of overhead guards h14(mm) 2280
17 Overall length (with forks/without forks)(forks lowered) l2(mm) 2410/1977
18 Width of the body b1(mm) 1390
19 Fork Dimensions s/e/l(mm) 35*100*1070
20 Fork Spread b5(mm) 210-680
21 Min ground clearance m2(mm) 65
22 Aisle Width,pallet 1000*1200mm Ast(mm) 2835
23 Min. Turning radius Wa(mm) 1854
24 Fork telescopic travel L(mm) 1200
25 Max travel speed unladen/Load km/h 7/6.5
26 Max. lifting speed unladen/Load m/s 0.330/0.245
27 Max. lowing speed unladen/Load m/s 0.260/0.325
28 Drive brake electromagnetic
29 Drive motor kw 4.5
30 Lift motor kw 6.3
31 Battery type Lead acid
32 Battery capacity V/Ah 48V/300
33 Charger-intelligent V/Ah 48V/40A
34 Drive Controll Type Holzer type accelerator

Seating Type CQD16JS 1.6T Electric Scissors Reach Forklift Triplex MastSeating Type CQD16JS 1.6T Electric Scissors Reach Forklift Triplex MastSeating Type CQD16JS 1.6T Electric Scissors Reach Forklift Triplex MastSeating Type CQD16JS 1.6T Electric Scissors Reach Forklift Triplex MastSeating Type CQD16JS 1.6T Electric Scissors Reach Forklift Triplex Mast

Seating Type CQD16JS 1.6T Electric Scissors Reach Forklift Triplex Mast



Seating Type CQD16JS 1.6T Electric Scissors Reach Forklift Triplex Mast

Seating Type CQD16JS 1.6T Electric Scissors Reach Forklift Triplex Mast
